These instructions assume that you have already connected your TV to an antenna or a
cable TV system. Skip step 1 if you have not yet connected to an antenna or a cable
system.
Follow the instructions in Viewing a VCR or Camcorder Tape to view your VCR tape.
Each VCR has a different back panel configuration.
When connecting a VCR, match the color of the connection terminal to the cable.
1. Unplug the cable or antenna from the back of the TV.
2. Connect the cable or antenna to the ANT IN terminal on the back of the VCR.
3. Connect an RF Cable between the ANT OUT terminal on the VCR and the ANT IN
terminal on the TV.
4.
5. Connect Audio Cables between the AUDIO OUT jacks on the VCR and the COMPONENT IN
R and L jacks on the TV.
Note: 1. Whenever you connect an external device to your TV, make sure that power on
the unit is turned off.
2. When connecting an external device, match the color of the connection terminal
to the cable.
Connect a YPbPr Cable between the COMPONENT [Y, Pb, Pr] jacks on the DVD
player and COMPONENT [Y, Pb, Pr] jack on the TV.
2 2 2 17

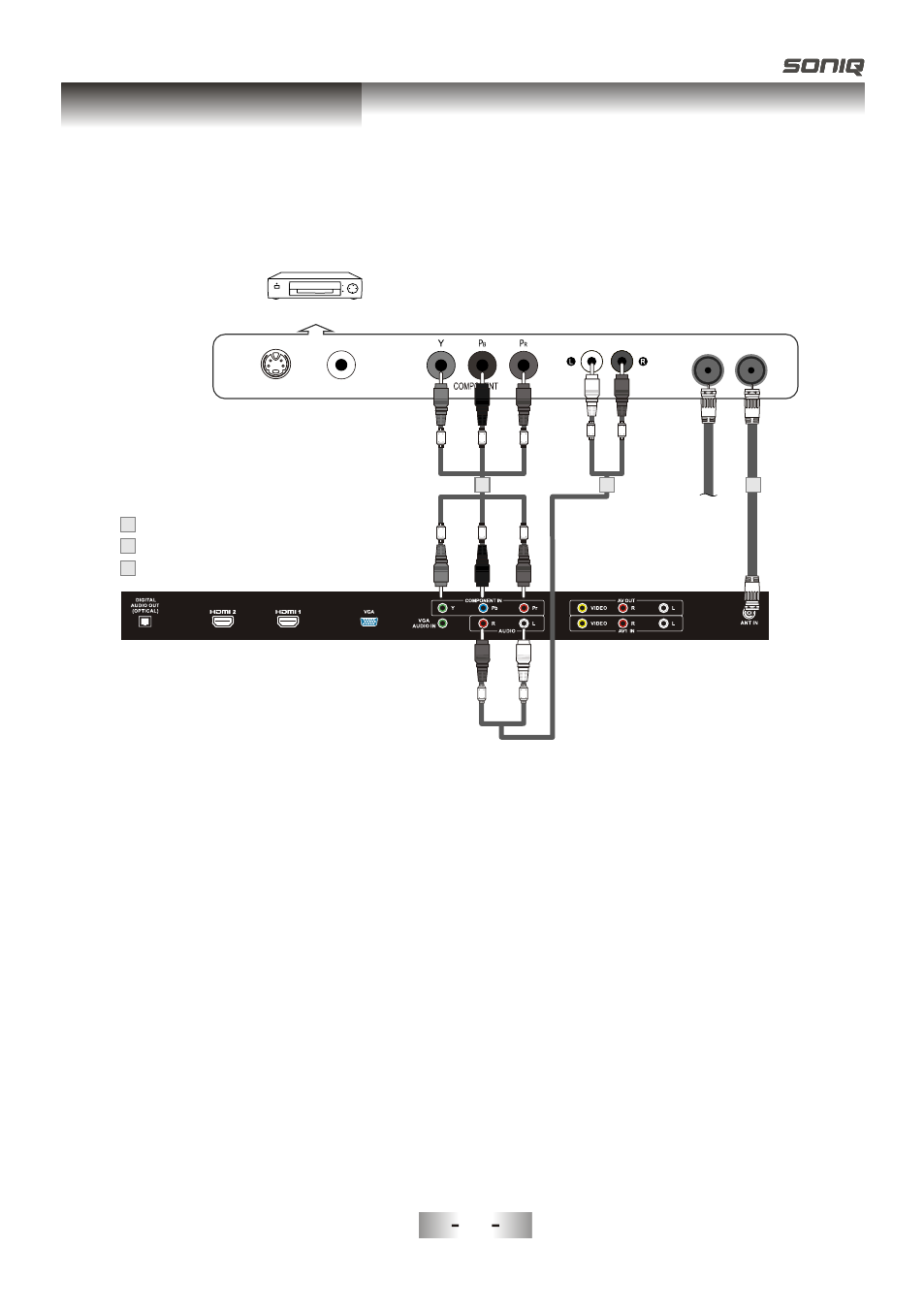

External Connection
Connecting VCR
VCR Rear Panel
TV Rear Panel
