This connection can only be made if there is a DVI Output connector on the external device.

Each DVD player/STB has a different back panel configuration.

When connecting a DVD player/STB, match the color of the connection terminal to the

cable.

1. Connect a DVI to HDMI Cable or DVI-HDMI Adapter between the HDMI 1, HDMI 2

connector on the TV and the DVI connector on the DVD player/Set-Top Box.

2. Connect Audio Cables between the VGA AUDIO IN jack on the TV and the AUDIO OUT

jacks on the DVD player/Set-Top Box.

Note:

1.Whenever you connect an external device to your TV, make sure that power on the unit is

turned off.

2.When connecting an external device, match the color of the connection terminal to the

cable.

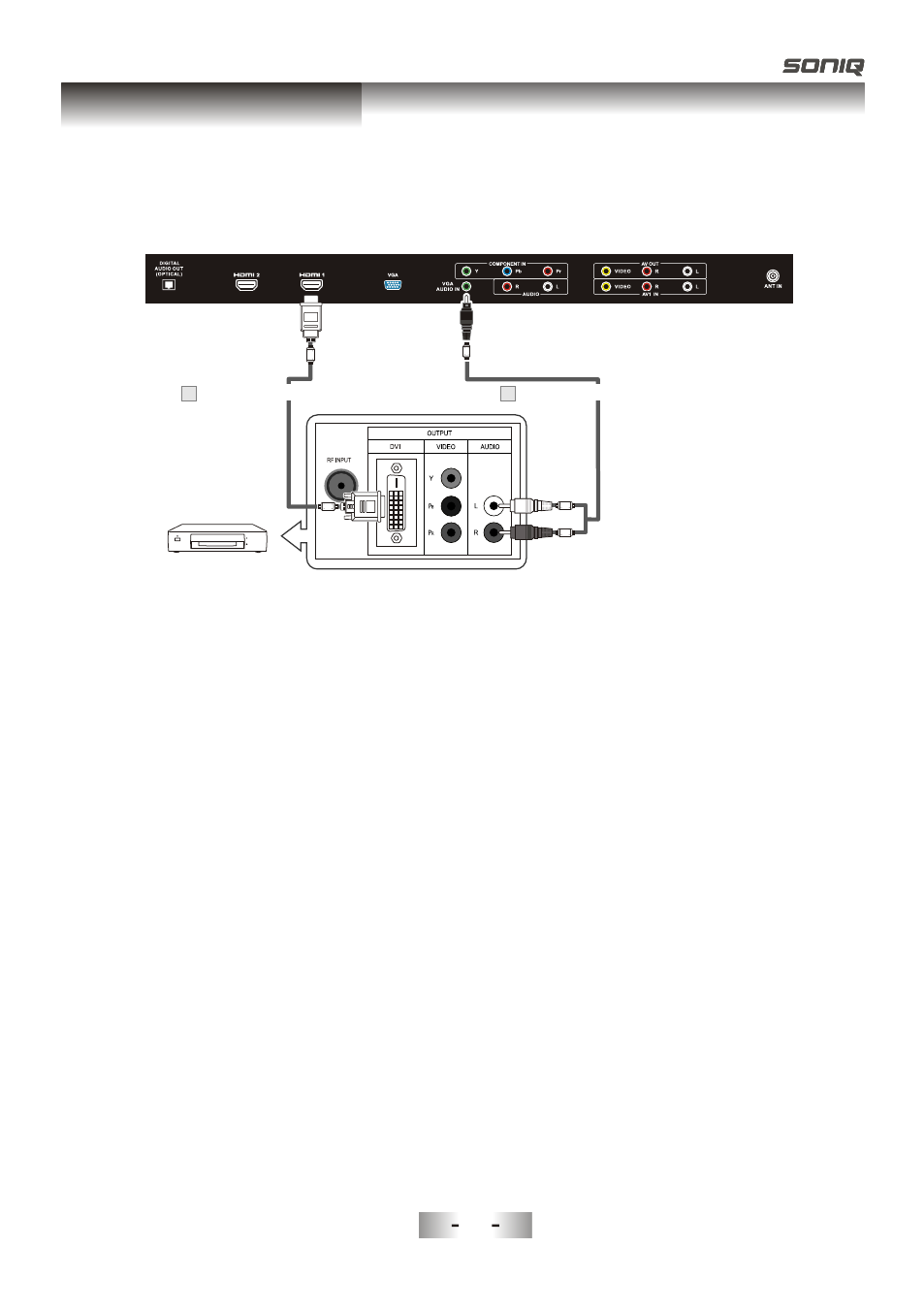

External Connection

Connecting a DVD Player/Set-Top Box via DVI

TV Rear Panel

DVD Player/

Set-Top Box

White

Red

DVI to HDMI Cable (Not supplied)

Audio Cable (Not supplied)
