11 12
The product must be operated only from the type of power sources indicated on the
marking lable (100-240V AC, 50Hz/60Hz.)
If the unit will not be used for a long period of time, it should be unplugged from the
wall outlet.
Connect the power cord directly to the wall outlet.

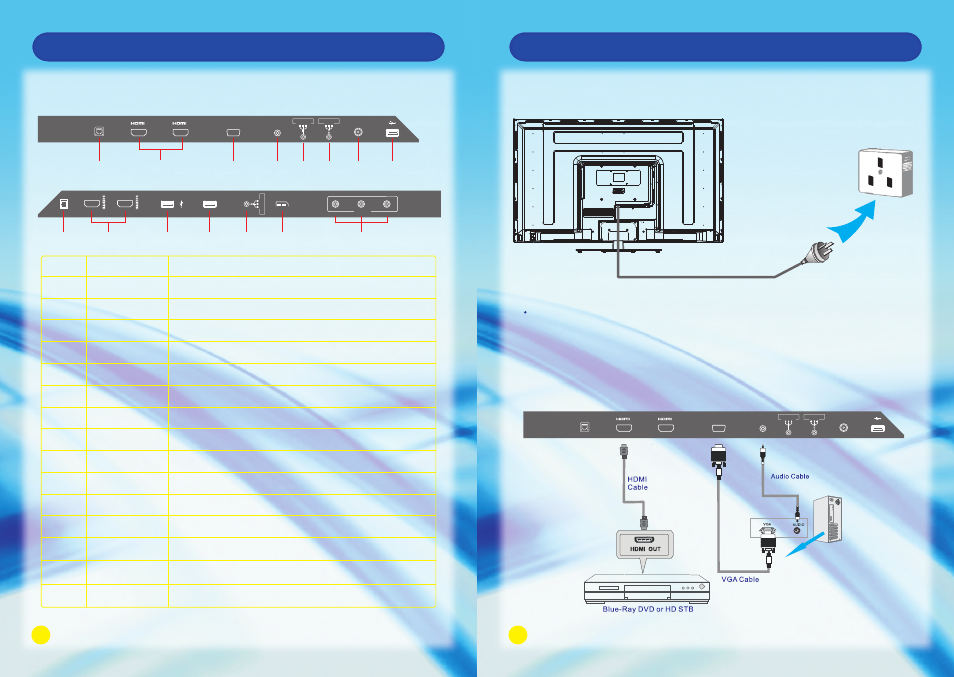

HDMl VGA/PC Connection
Main Unit Control
Rear Panel
No.
1
2
3
4
5
6
7
8
ANT IN
USB
ETHERNET
HDMI1/HDMI2
VGA
VGA AUDIO IN
COMPONENT IN
R-L-VIDEO VIDEO 1 IN
Connect it to the home network.
Connect the HDMI cable.
Connect the PC VGA cable of your personal computer.
DVI or PC VGA audio input.
Connect the component video signal.
Connect the audio and video output of your AV equipment to the unit
using the AV cable included in the spare part.
Connect to external antenna.
Connect USB device, such as USB disk, HID and so on.
15 AV 2 IN Connect the audio and video output of your AV equipment to the unit.
14 SD/MMC SD/MMC card reader slot.
12 USB 3.0
Connect for media files playback and program recording.
Not compatible with USB1.1.
11 USB Connect for media files playback and program recording.
10 HDMI3/HDMI4 Connect the HDMI signal.
9 DIGITAL AUDIO OUT
OPTICAL
Connect the OPTICAL to the Audio Amplifier using an optical cable.
Name Description
13 AV/OUT Connect the audio and video input of your AV equipment to the unit.
Connecting the Power Cord
Connection and Setup
1 2 3 4 7 8 5 6
1 2 VGA
AUDIO IN
VGA Y Pb Pr COMPONENT R - L - VIDEO AV 1 IN ANT IN
USB
ETHERNET
9
3 4
R - L
- VIDEO A V OUT
SD/MMC
AV 2 IN
R
DIGIT
AL
AUDIO OUT (OPTICAL) USB USB3.0
L
VIDEO
10 11 12 13 14 15
Power Cord
Wall Outlet
1 2 VGA AUDIO IN VGA Y Pb Pr COMPONENT R - L - VIDEO AV 1 IN ANT IN USB ETHERNET
