- 5 -

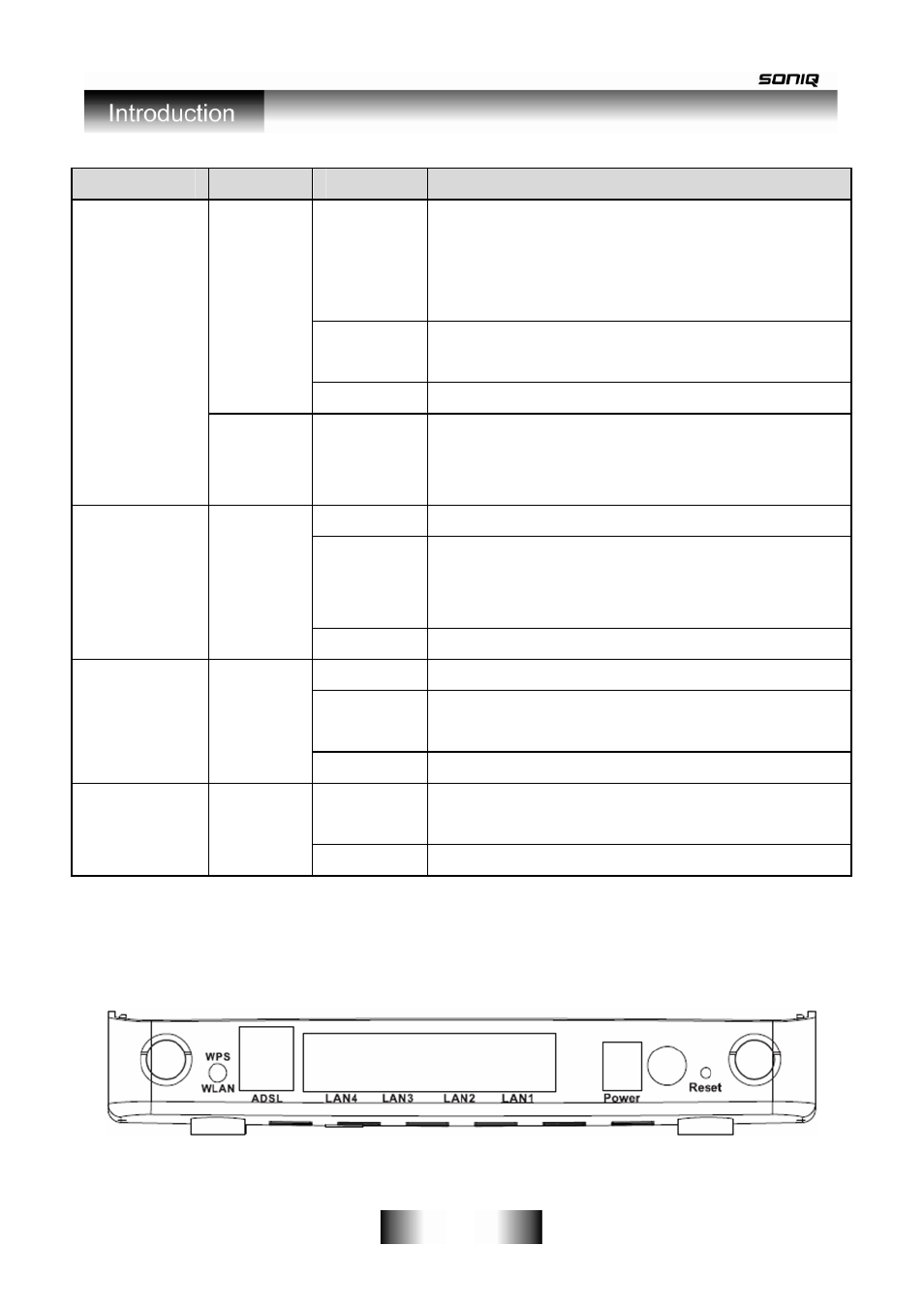

LED Color Status Description
On The Internet connection is normal in the
routing mode (for example: PPP dial-up is
successful), and no Internet data is being
transmitted.
Blinks Internet data is being transmitted in the
routing mode.
Green
Off The device is in bridged mode.
Internet
Red On The Internet connection fails after successful
synchronization in the routing mode (for
example: PPP dial-up is failed).
On The LAN connection is normal.
Blinks Data is being transmitted through the LAN
interface, or the Internet data is being
transmitted in bridged mode.
LAN4-1 Green
Off The LAN connection is not established.
On The WLAN connection has been activated.
Blinks Data is being transmitted through the WLAN
interface.
WLAN Green
Off The WLAN connection is not activated.
Blinks WPS is activated and the device is waiting
for negotiation with the clients. WPS Green
Off WPS is not activated.
Rear Panel
