Revel Sub 30 - Manual (Page 19)

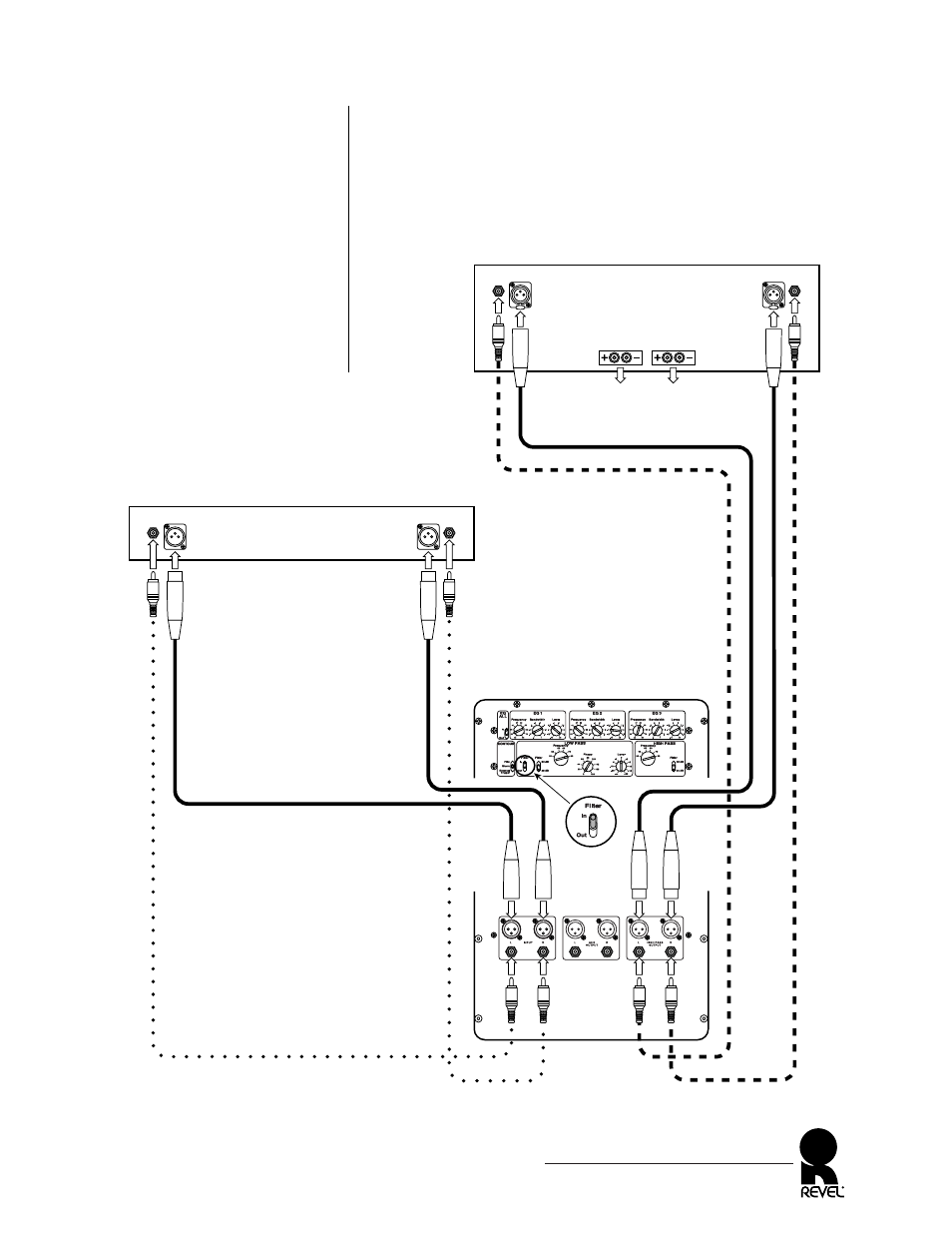

Figure 10. How to connect
the REVEL ULTIMA SUB 30
(with its internal high-pass
crossover) between a stereo
preamplifier and main power
amplifier.
STEREO POWER AMPLIFIER AND A REVEL SUB 30
WITH CROSSOVER
The most common two-channel application is interconnecting the
REVEL ULTIMA SUB 30 between a stereo preamplifier and the
main power amplifier, as shown in Figure 10.
REVEL ULTIMA SUB 30
Owner’s Manual
19
ULTIMA SUB 30 Rear Panel
(split view)
Preamplifier
(rear)
Left Output Right Output
Main Amplifier
(rear)
To Main Speakers
Left Input
Left Right
Right Input
or or
or or
