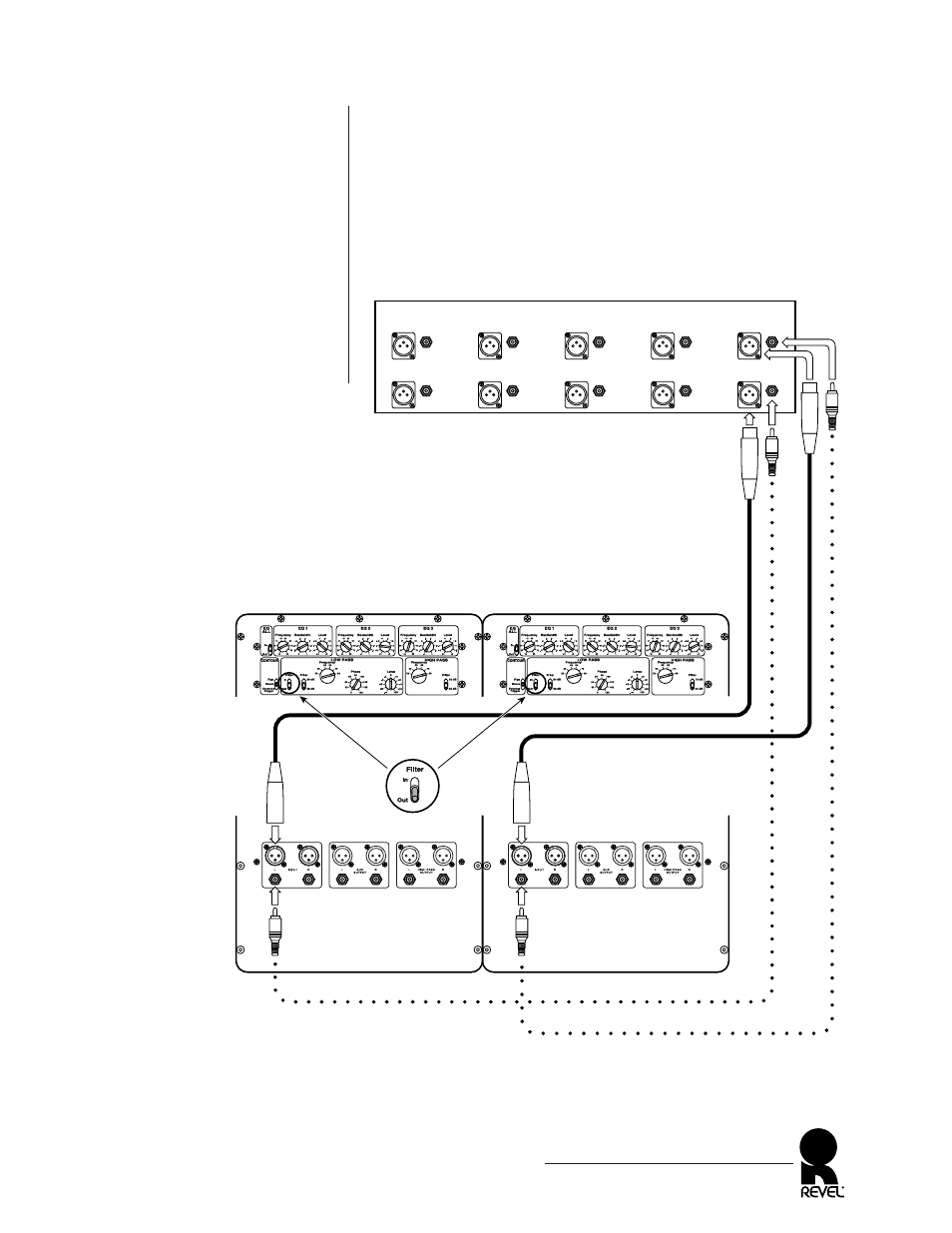

Figure 8. How to connect two
REVEL ULTIMA SUB 30
subwoofers to a Surround-Sound
Processor using the processor’s
internal crossover for stereo bass.
SURROUND-SOUND PROCESSOR WITH CROSSOVER
AND REVEL ULTIMA SUB 30 SPEAKERS IN STEREO
Two REVEL ULTIMA SUB 30 speakers can be used for stereo
bass with a surround-sound processor after it is configured for left
and right subwoofer outputs, as shown in Figure 8.
REVEL ULTIMA SUB 30
Owner’s Manual
17
Right ULTIMA SUB 30 Rear Panel
(split view)
Left ULTIMA SUB 30 Rear Panel
(split view)
Surround-Sound Processor
(rear)
NOTE: On some Surround-Sound Processors,
the SUBWOOFER Outputs may be labeled AUX.
Set the crossover to route low-frequency signals
(typically below 80 Hz) to the SUBWOOFER or
AUX outputs.
Left Output
FRONT/MAIN
Right Output
Left Output
REAR
Right Output
Left Output
SUBWOOFER
Right Output
Left Output
SURROUND/SIDE
Right Output
CENTER Output
SUB/LFE Output
or
or
