STEREO BASS CONNECTIONS
WITH MULTIPLE B12S
Connections are made between two B12s
and a receiver/processor with multiple
subwoofer outputs as shown in Figure 19
(below).
To make connections between multiple
B12s and a receiver/processor with
multiple subwoofer outputs:
1. Set the processor to “stereo subwoofer”
(if stereo bass is desired).
2. Connect a single cable from one
processor output to one B12 left input
as shown in Figure 19 (below).
3. Connect a single cable from the other
processor output to the other B12
subwoofer’s left input as shown in
Figure 19 (below).
If four B12s are used, use Y-adapters to
enable connections.

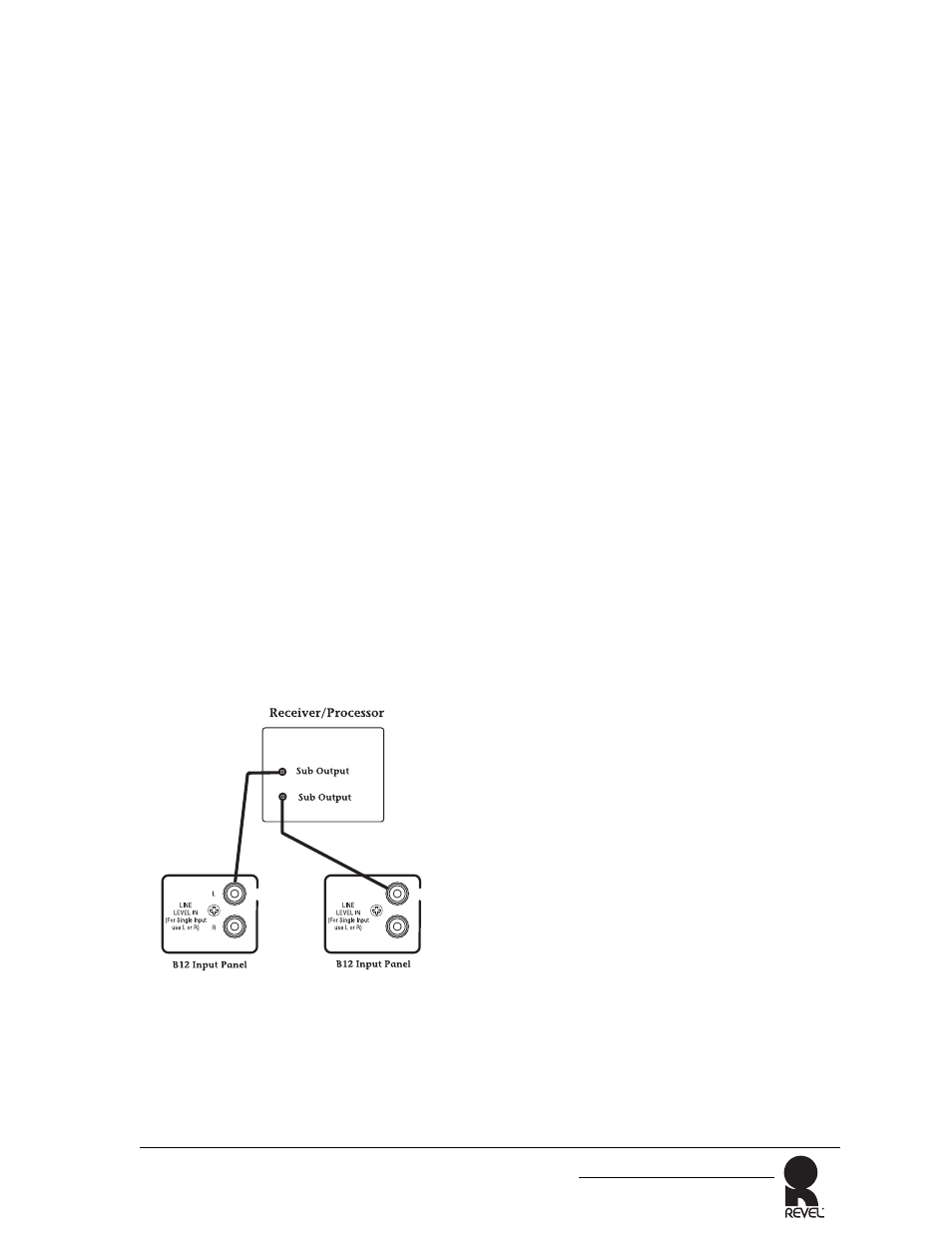

Figure 19: Stereo Bass Connection for Multiple B12s
6 4
R
L
21
OBTAINING SERVICE
To obtain warranty or non-warranty serv-
ice, contact your authorized Revel dealer.
Refer to the included Revel Warranty Card
for warranty information.
REVEL Concerta B12
Owner’s Manual
