FEET AND OPTIONAL SPIKES
When shipped, rubber feet are attached to
the bottom of the cabinet for optimal
stability, accommodating installations on
tile and hardwood floors. The B12 is
shipped as shown on the left side of Figure
13 (above).
Four metal spikes are included for use
when the subwoofer is placed on carpeted
surfaces. Insert the spikes into the threaded
inserts at the bottom of the feet as shown
on the right side of Figure 13 (above), so
that the spikes protrude from the cabinet.
Note
When moving the B12, avoid dragging it
across the floor, as this will damage the
feet, the spikes and/or the cabinet itself.
Always lift the B12 and carry it to its new
location.
To install the spikes:
1. Place the B12 on its side on a soft towel
or carpeted floor.
2. Rotate the spike clockwise into the
threaded insert in the center of a rub-
ber foot, round end first, as shown on
the right side of Figure 13 (above).
3. Repeat step 2 for the remaining three
spikes. Make sure to thread each spike
fully to achieve a level balance.
4. When all four spikes have been
installed, stand the B12 in the upright
position. If needed, repeat steps 1 and
3 to achieve a level balance.
5. Repeat these steps to install the spikes
on the other B12.

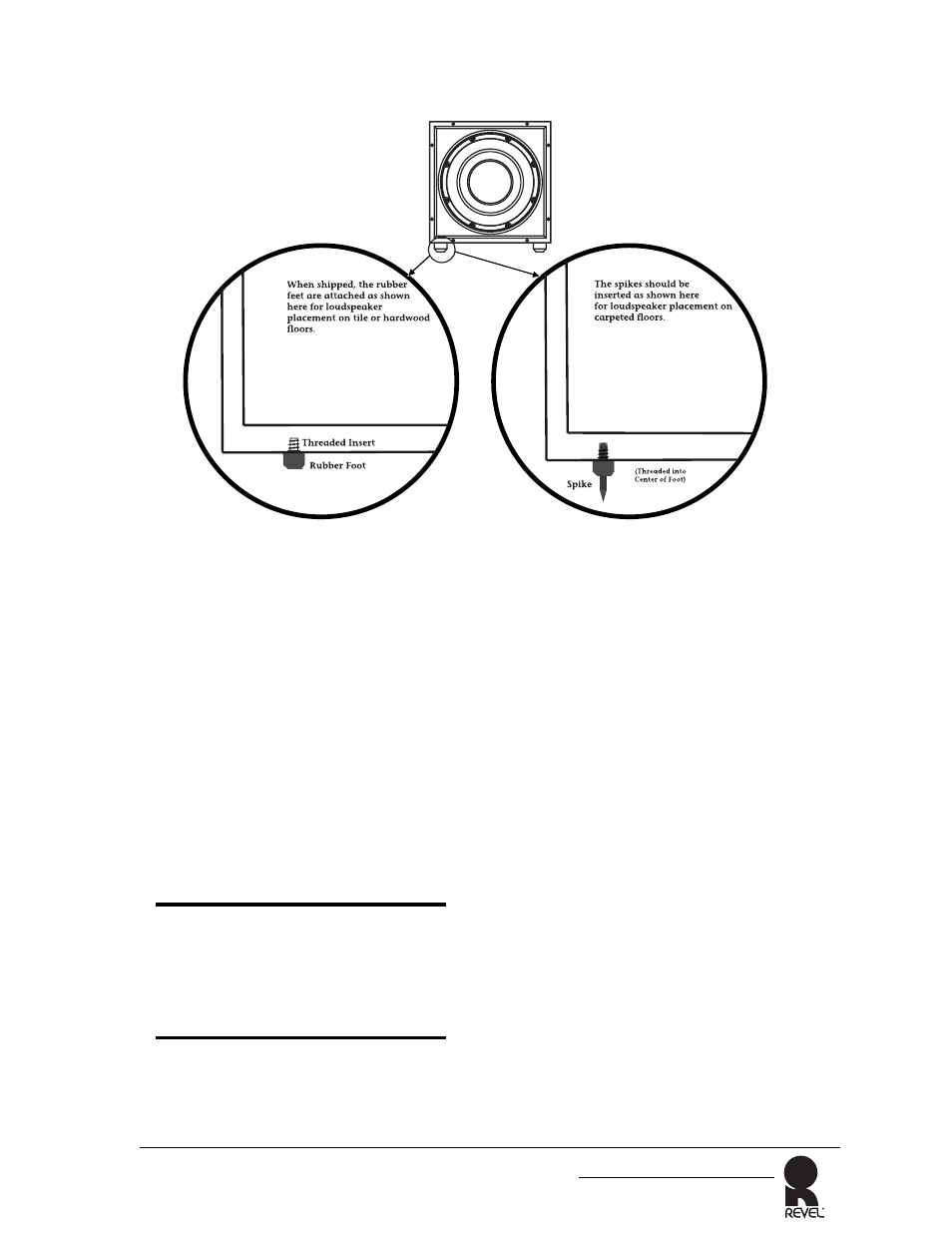

Figure 13: Adjustable Spike feet
