REVEL Concerta B12
Owner’s Manual
SUBWOOFER OVERVIEW
CAUTION
To prevent cabinet damage, do not use
a cloth made with steel wool or use
metal polish to clean the cabinet.
REAR PANEL
The numbers in Figure 5 (page 11) corre-
spond with the numbered items in this
section.
1. Line-Level Inputs
Gold-plated stereo RCA line-level
inputs allow you to connect the sub-
woofer to a receiver or surround proces-
sor's subwoofer output using an RCA
patch cable.
2. Power Indicator LED
Indicates whether the B12 is in Standby
or Normal operation mode. Lights red
to indicate Standby mode. Lights green
to indicate Normal operation. The B12
will automatically enter Standby mode
after approximately ten minutes when
no signal is detected from your system.
The B12 will power on instantly when
a signal is detected.
3. Subwoofer Level (Volume)
Control
Adjusts the woofer’s volume level.
4. Low Pass Frequency Control
Adjusts the variable 50Hz-175Hz low-
pass crossover. Determines the highest
frequency at which the B12 reproduces
sounds.
• Set to a lower frequency setting,
between 50Hz and 100Hz, for larg-
er main loudspeakers that can
comfortably reproduce some low-
frequency sounds.

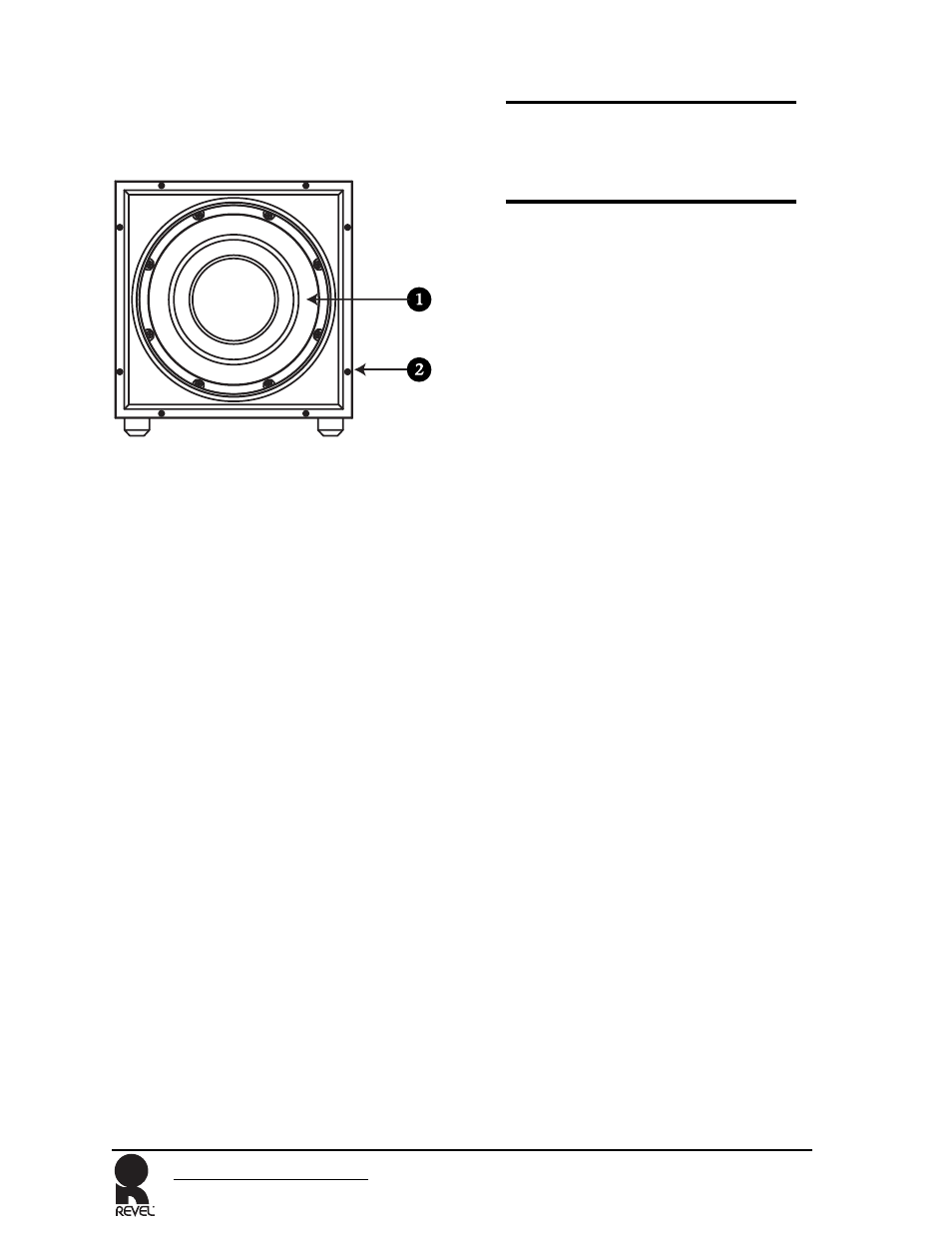

Figure 4: B12 Subwoofer (Front View)
The numbers in Figure 4 (shown here) correspond with the
numbered items in the Front View section that begins
below.
FRONT VIEW
The numbers in Figure 4 (above) corre-
spond with the numbered items below.
1. Woofer
2. Cabinet
Reduces cabinet-induced colorations
with MDF walls and extensive internal
bracing. Rubber feet/spikes are
attached to the bottom of the cabinet
for optimal stability, accommodating
installations on tile, hardwood, and
carpeted floors. The cabinet’s vinyl
finish does not require routine mainte-
nance. However, cabinet surfaces that
have been marked with fingerprints,
dust, or other dirt can be cleaned using
a soft cloth. Do not use any cleaning
products or polishes on the cabinet or
grille.
