TYPICAL CONFIGURATION WITH
A RECEIVER/PROCESSOR WITH
TWO SUBWOOFER OUTPUTS
Connections can also be made between a
receiver/processor with multiple subwoofer
outputs as shown in Figure 17 (below).
To make a connection between a B12
and a receiver/processor with two
subwoofer outputs using a single cable:
1. Set the processor to “mono subwoofer.”
2. Connect cables from either subwoofer
output to either B12 input as shown in
Figure 17 (below).
Figure 18: Alternate Connection with
Receiver/Processor with Two Subwoofer Outputs
Receiver/Processor
ALTERNATE CONFIGURATION
WITH A RECEIVER/PROCESSOR
WITH TWO SUBWOOFER OUT-
PUTS
Connections can also be made between the
B12 inputs and a receiver/processor with
multiple subwoofer outputs as shown in
Figure 18 (below).
To make connections between a B12 and
a receiver/processor with two subwoofer
outputs using a pair of cables:
1. Set the processor to “stereo sub-
woofers.”
2. Connect cables from the two subwoofer
outputs to the B12 left and right inputs
as shown in Figure 18 (below).

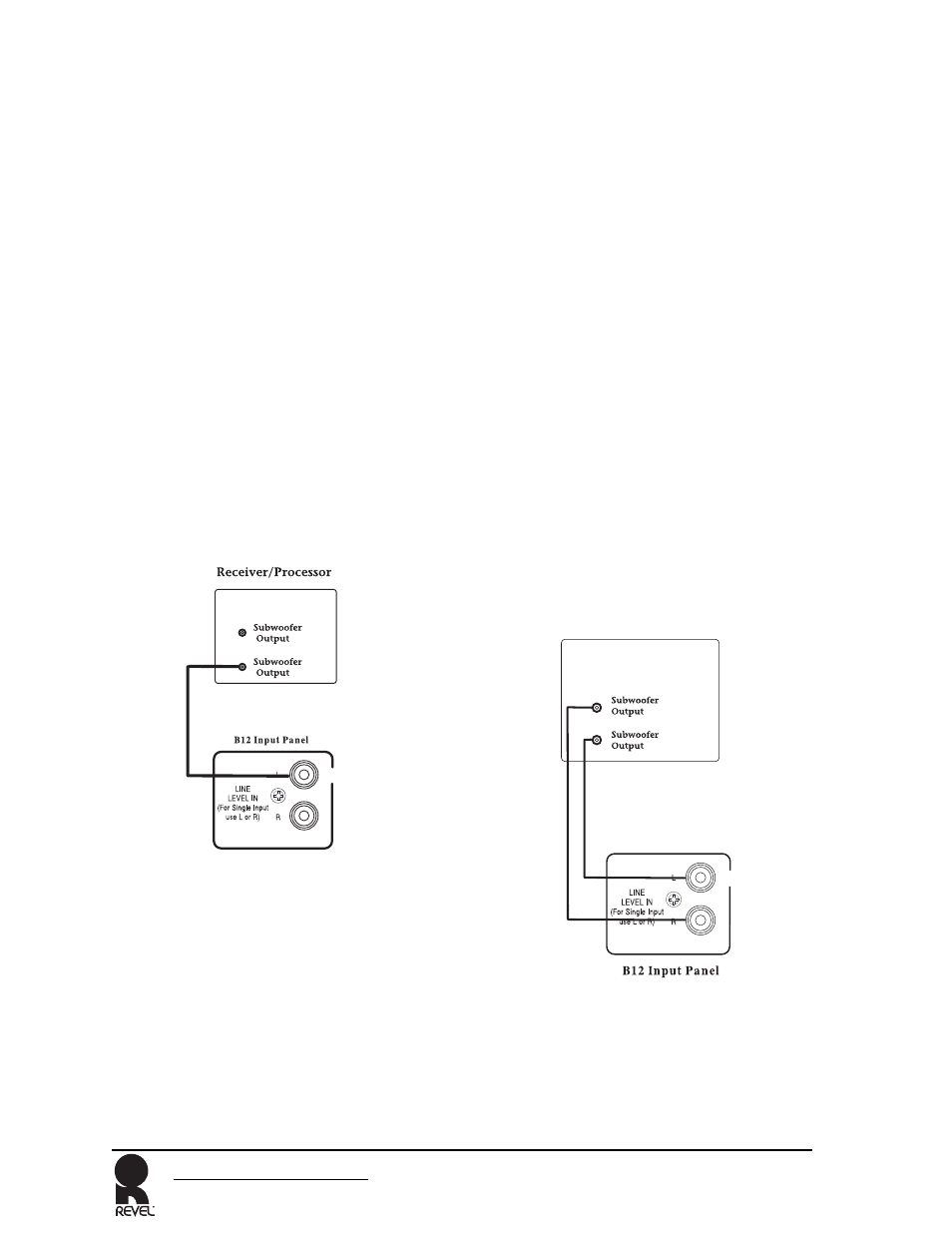

Figure 17: Typical Connection with
Receiver/Processor with Two Subwoofer Outputs
