5
NOTE: No wad present.
STATION 6

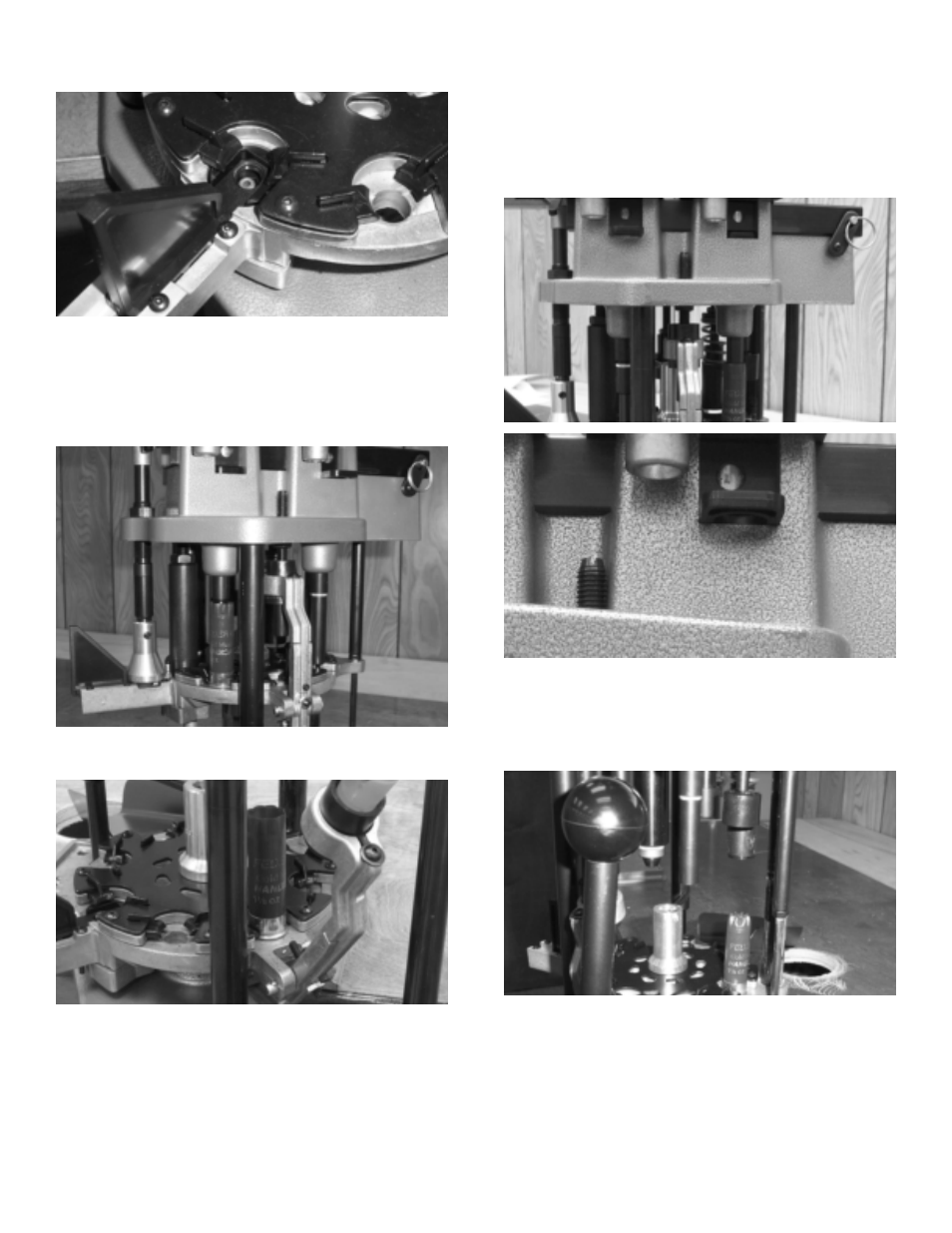

Crimp Start. An 8 point Crimp Starter is installed at the factory
(photo 28). A 6 point Crimp Starter is included in the
accessory box.
STATION 4
Wad insertion (photo 25).
25
STATION 5
Shot Drop and Wad Seating. Case activated, will not drop a
shot charge without a hull with a wad present. Drop Tube (A),
driven by the bottom of the wad cup, drives the Shot Shut Off
gate (B) to drop the shot charge
(photo 26). If no hull is
present or a hull with no wad (photo 27), the Drop Tube
assembly does not activate the Shot Shut Off gate. The Wad is
seated at the top of the stroke.
26
27
28
➞
➞
A
B
➞
Primer Transfer Bar delivers the primer to the primer station
(photo 23).
23
Primer is seated at the top of the stroke.
STATION 3
Powder Charge. Case activated, will not drop powder if a hull is
not present. Drop Tube (A) drives the Powder Shut Off gate (B)
to drop the powder charge
(photo 24). If no hull is present, the
Drop Tube assembly does not activate the Powder Shut Off gate.
➞
➞
24
A
B
