1
Your Grand is set up at the factory for the following loads:
12 GA. LOAD INFORMATION
Federal Gold Medal 2 3 /
4
" hull, 17.5 gr. Red Dot,
452 powder bushing, CCI 209M primer, Federal 12S3 wad,
1
1 /
8
oz. # 7 1 /
2
shot bushing
20 GA. LOAD INFORMATION
Winchester 2 3 /
4
" hull, 16.0 gr. Unique, 381 powder bushing, CCI
209M primer, Winchester WAA20 wad, 7 /
8
oz # 7 1 /
2
shot bushing.
A Hydraulic conversion unit is also available for The Grand
shotshell press. For pricing and information, contact RCBS
direct at 1-800-533-5000.

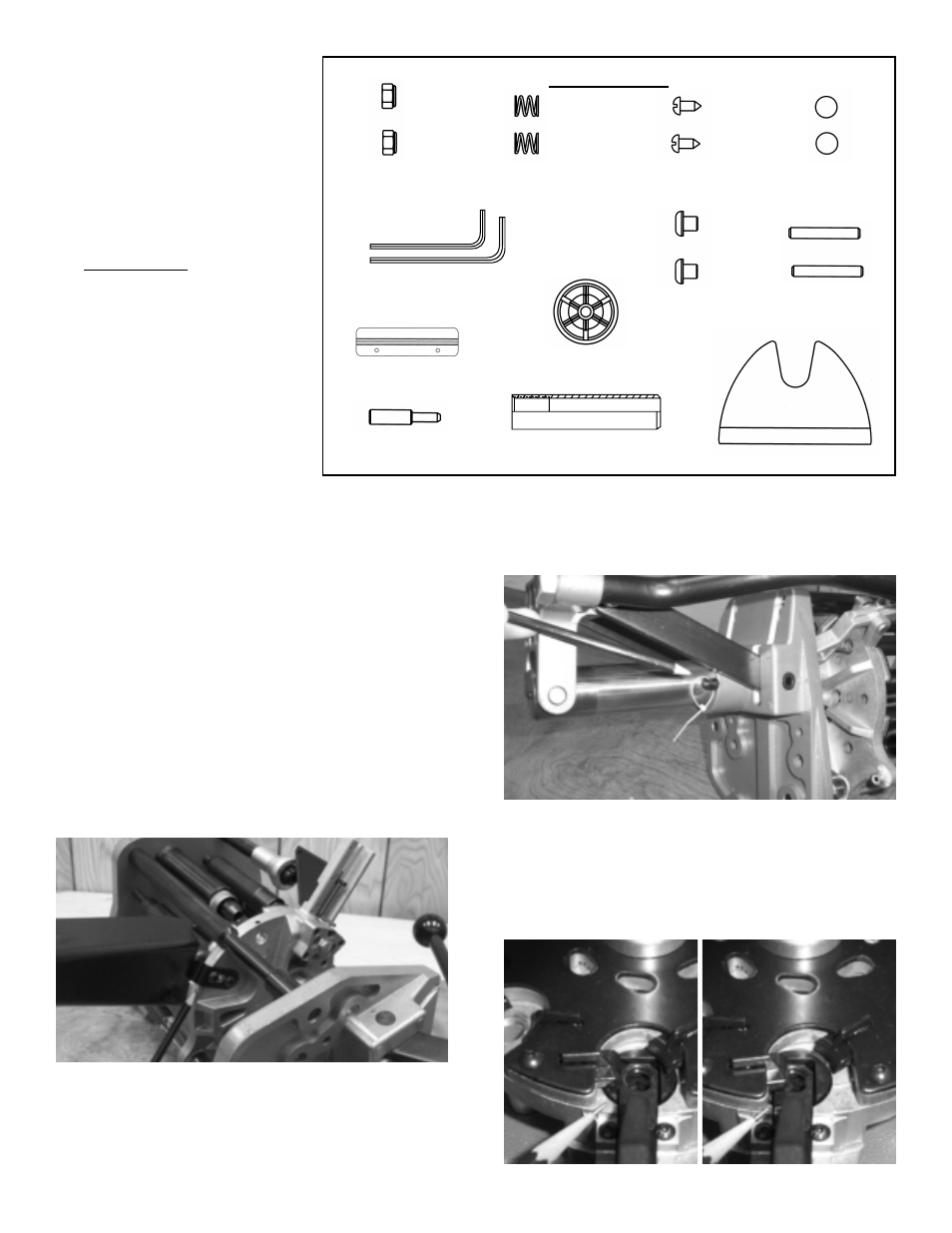

As you remove press from box, take caution not to lay press
against primer channel.
(photo 1) Lay press on opposite side so
that the primer channel extends upward as shown below. Lay
press on opposite side so that the primer channel extends
upward as shown.
UNPACKING THE GRAND
A. Shot Hopper
B. Spent Primer Tube Assembly
C. Powder Hopper
D. Drain Tube (Clear Rubber Hose)
E. Press Assembly
F. Wad Box
Video
Wad Box Bracket
Discharge Chute
Primer Tray
Bag 1, Parts List
# 8 x 3/8 Wood Screw
1/4-28 x 1/4 BHCS
3/8 Detent Ball
Detent Spring
Shotshell Crimp Starter 12 Ga., 6 Pt
Shotshell Primer Shut Off Pin
10-24 x 1-1/4 SHSS
10-24 Nyloc Nut
Shotshell Press Powder Baffle
Hex Wrench, 5/32
Hex Wrench, 3/32
3
right
4
1
After laying press on bench, remove plastic tie securing the
Lockout pin to the Ram of the press and remove Lockout pin.
(photo 2) The Lockout pin can be used with a small lock (not
included), to secure press when not in use.
CAUTION: SHELL PLATE POSITION
Care must be taken that the shell plate is always in the
proper position.
(photo 3) Check index position before
cycling.
Press must never be partially indexed, this results in damage
to the Case Holders. Rotate Shell Plate and feel for Index Ball
to position properly.
2
DETENT SPRING
187153
3/8 DETENT BALL
187152
#8 X 32 WOOD SCREW
189064
10-24 X 1-1/4 SHSS
189062
10-24 NYLOC NUT
189063
WAD BOX BRACKET
789013
ALLEN WRENCH 3/32, 109635
ALLEN WRENCH 5/32, 181150
LOWER SHOT TUBE - LONG, 12 GA.
789100 POWDER BAFFLE 189037
CRIMP STARTER 12 GA., 6PT
189020
PRIMER SHUT OFF PIN
789039
➞
wrong
1/4-28 X 1/4 BHCS
189073
BAG 1 PARTS
