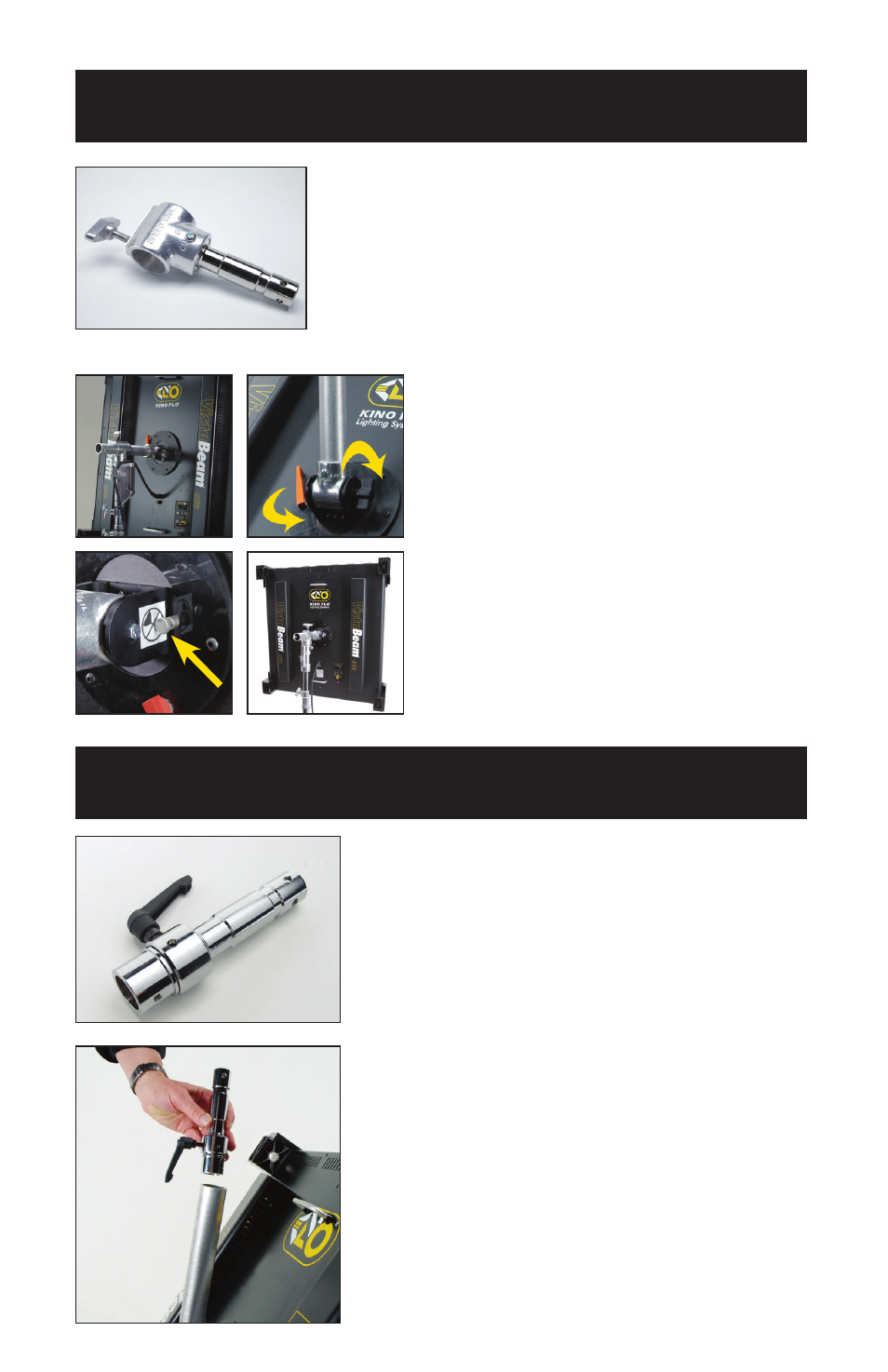

VistaBeam Center Mount
Center Mount Hanging Adapter
The VistaBeam Center Mount allows the fixture to
mount to a junior stand or hang from a pipe grid with
junior pipe clamp.
The Center Mount includes a Junior Stand Adapter
(MTP-V63JR) which can be mounted onto a junior
stand.
The VistaBeam Center Mount can also hang from
a junior pipe hanger using a Hanging Adapter
(MTP-V63H1), sold separately.
Remove the Junior Pin (MTP-V63JR) and attach
the Hanging Adapter. It is held in place by a
safety screw and a setscrew. A lock knob adjusts
rotation of the arm.
Center Mount Rotation and Tilt Controls
1) The black knob controls the tilt.
2) The gold lock lever controls the rotation
of the fixture.
3) For further control, the center mount
also rotates at 90° stops. Pull locking
pin and turn counter-clockwise to unlock.
When the fixture rotates to a 90° angle,
the fixture will “click” into place. To lock
into place, turn locking pin to the right.
