10

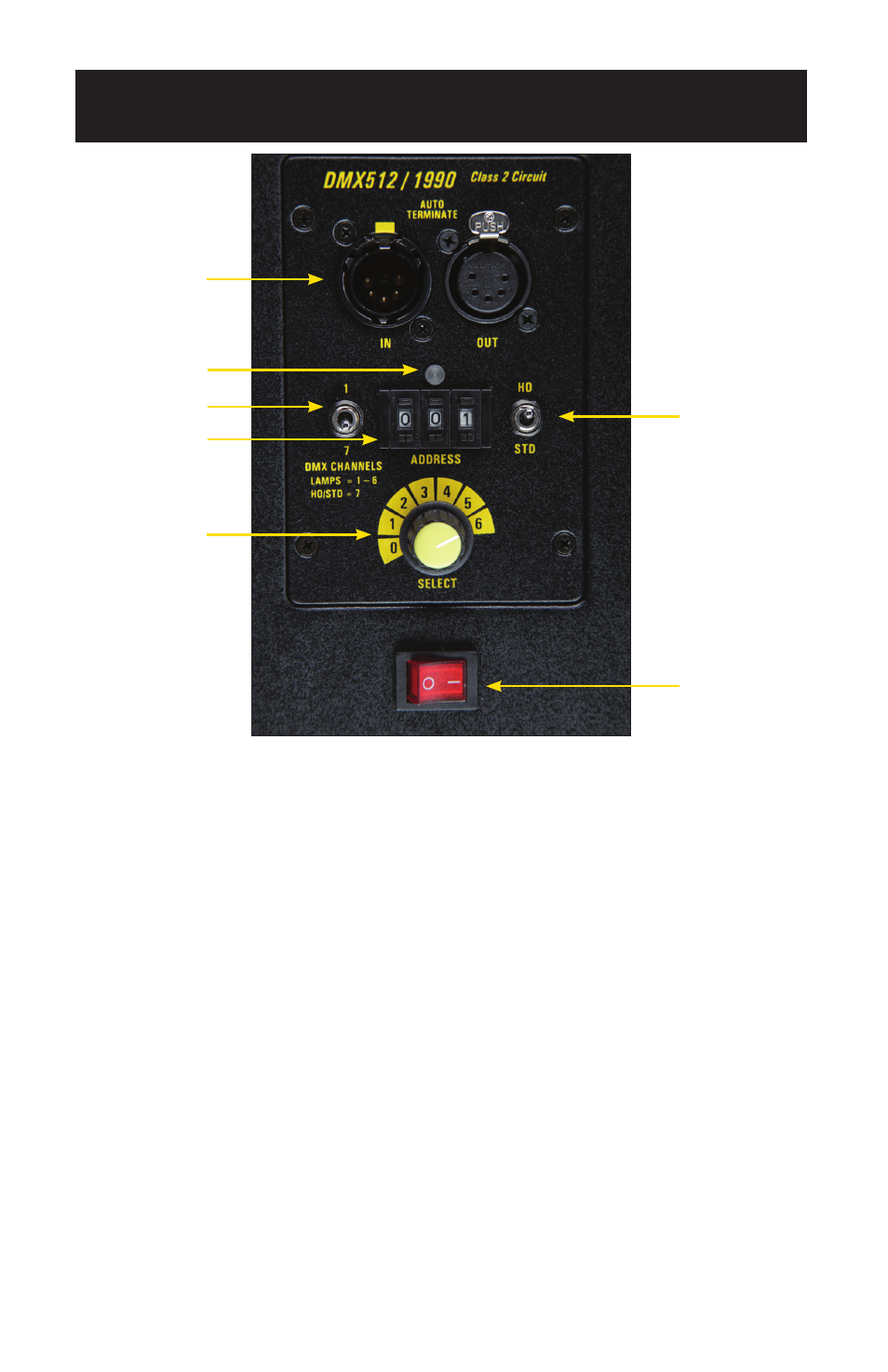

VistaBeam DMX Control Panel
A) DMX-IN & DMX-OUT: DMX-IN receives DMX signals from Dimmer Board.
DMX-OUT relays DMX signal through other Fixtures or Instruments.
Note: Each VistaBeam 610 & 310 DMX fixture has an “AUTO TERMINATE”
feature. The last fixture that does not have an XLR cable attached to the
DMX “Out” port will automatically terminate.
B) Indicator Light: Lights if valid DMX signal is present.
C) DMX Channels: Sets the VistaBeam to control all lamps on one channel or
to control lamps individually. VistaBeam 610 uses 1 DMX channel or
7 DMX channels (1-6 = Lamps, 7 = HO/Std). VistaBeam 310 uses
1 DMX channel or 4 DMX channels (1-3 = Lamps, 4 = HO/Std).
D) DMX Address: Sets DMX Address of fixture.
E) Manual Select Dial: Turns lamps on and off manually without connecting
DMX cable to fixture
F) HO/STD: HO operates lamps in High Output mode; STD operates lamps in
Standard Output mode
G) Power Switch: Has a built-in indicator light, which can detect if AC power is
present in power cord. “O” = OFF position.
A
B
C
D
E
F
G
