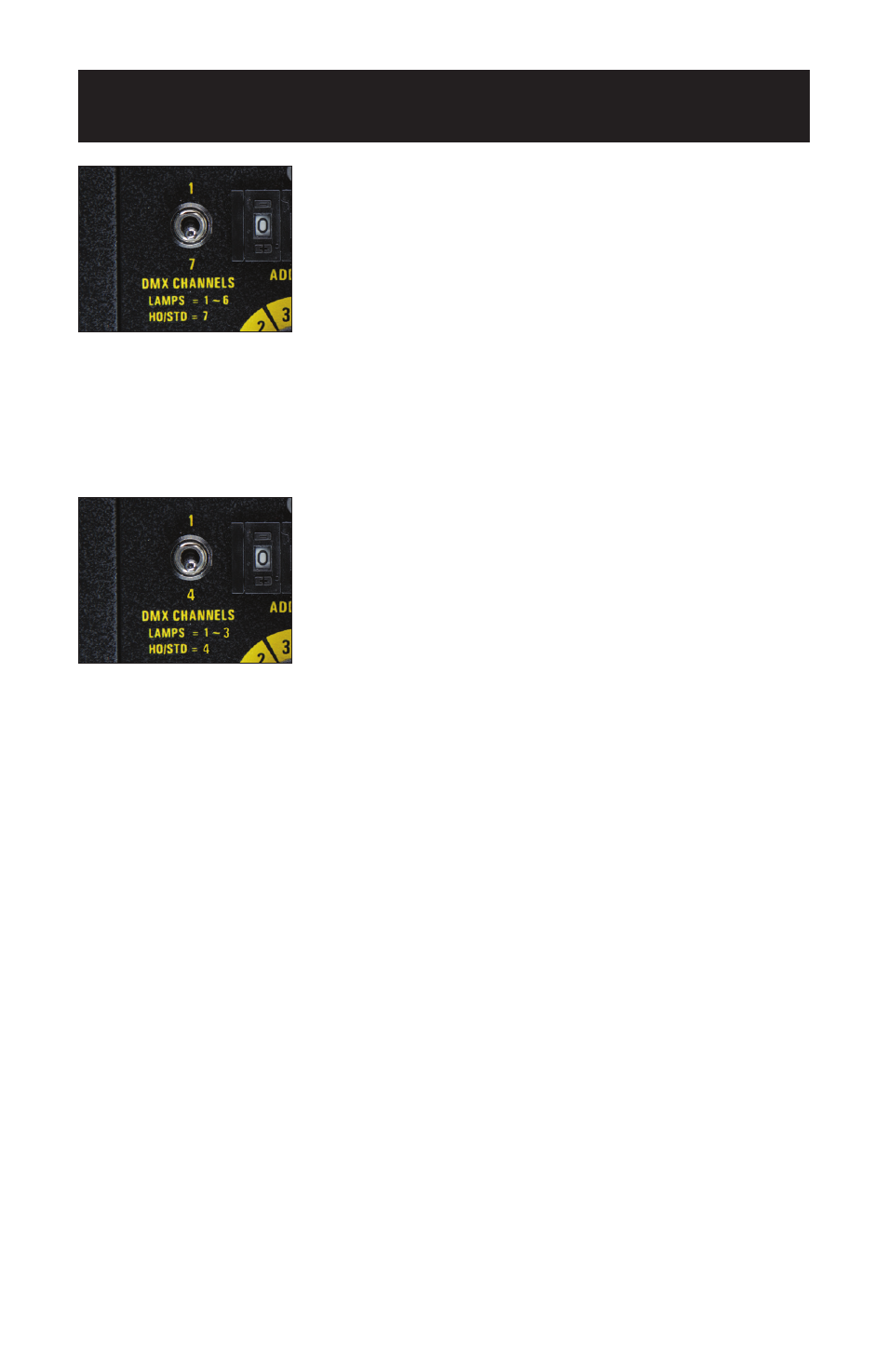

DMX Channels
The VistaBeam 610 operates on DMX Channel 1 or 7.
On DMX Channel 1, one DMX address controls all 6 lamps on
one dimmer channel. Channels 2-6 not used. A 7th address
controls the HO/Std setting. Not assigning the 7th address
results in the fixture operating at the HO setting.
On DMX Channel 7, the first six DMX addresses
control 6 lamps individually. After the first DMX address is
entered, the VistaBeam 610 automatically assigns 6 addresses
to lamp positions 1-6, and address 7 controls the HO/Std
setting. Not assigning the 7th address results in the fixture
operating at the HO setting.
The VistaBeam 310 operates on DMX Channel 1 or 4.
On DMX Channel 1, one DMX address controls all 3 lamps on
one DMX channel. Channels 2 & 3 not used. A 4th address
controls the HO/Std. Not assigning the 4th address results
in the fixture operating at the HO setting.
On DMX Channel 4, the first three DMX addresses control
3 lamps individually. After the first DMX channel is entered,
the VistaBeam 310 automatically assigns 3 addresses to lamp
positions 1-3, and address 4 controls the HO/Std setting. Not
assigning the 4th address results in the fixture operating at the
HO setting.
Note: Setting the fixture to DMX Channel 1 allows the user to recreate the “inside-out”
pattern of the manual selector dial. One of the best applications for DMX Channel 1 is
when lighting Blue and Green Screens or large cycloramas.
For example, one row of fixtures can be set to 001 or a common address. When the fader on
the dimmer board is brought up or down, all the fixtures on that address will have the same
lamps turned on.
VistaBeam 310 Lamp Switching
