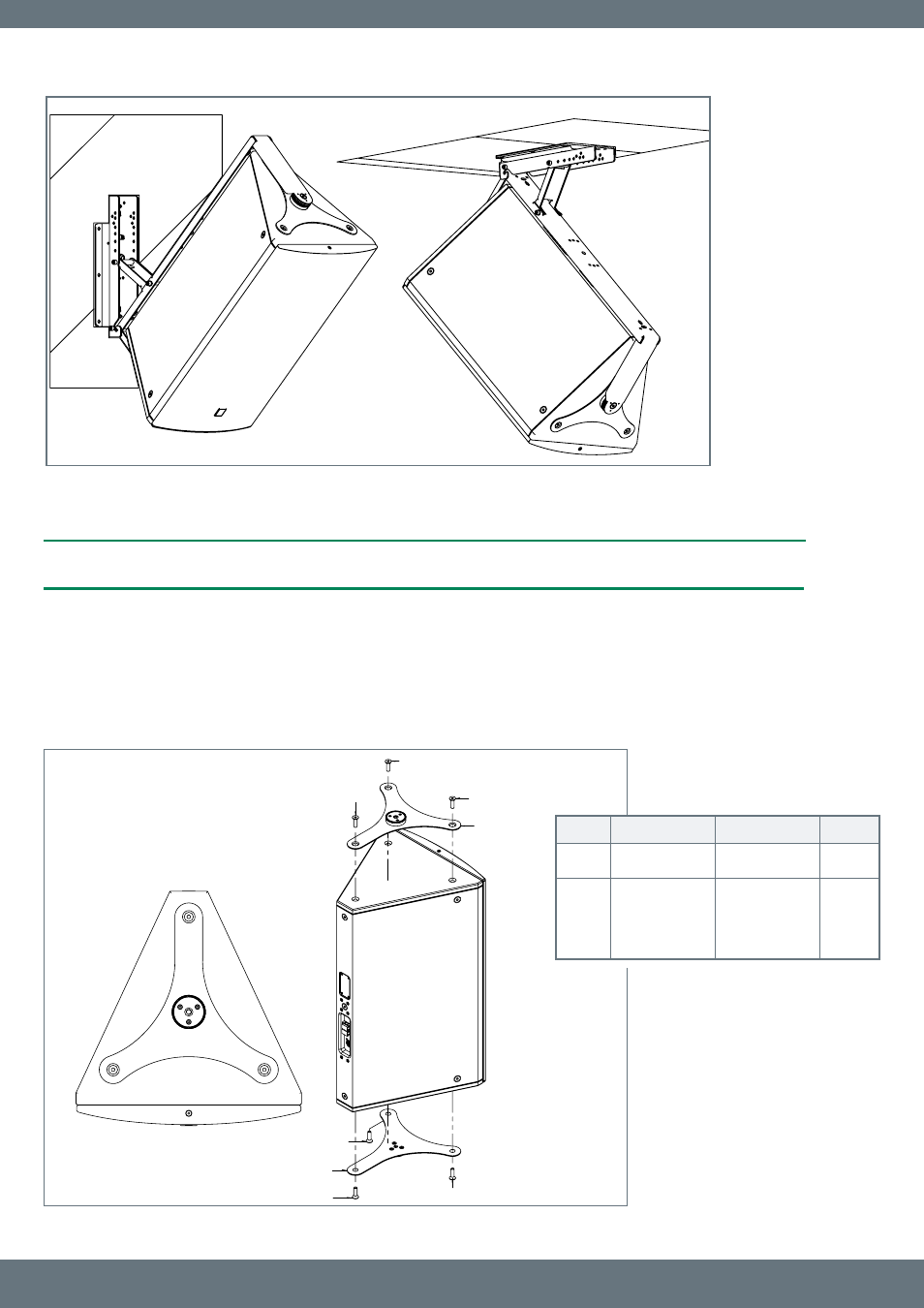

U-Bügel, Neigevorrichtung und
Wandhalteplatte an Decke/Wand
Ceiling/ wall mounted U-bracket,
speaker tilt, and wall plate
3 Allgemeine Montageanweisungen / General Installation Instructions
3.1 Anbringen der Montageplatten an VORTIS Lautsprechern /
Attaching Mounting Plates to VORTIS Enclosures
2
2
2
2
2
1
1
2
Pos.Nr. Beschreibung description quantity
1 Montageplatte mounting plate 2
2 Inbussenk-
schraube M10x35 hexagon socket
countersunk head
screw, M10x35 6
