MICRO 200 BW 0 - 1000 NTU (5/05)

Rev. 3.1

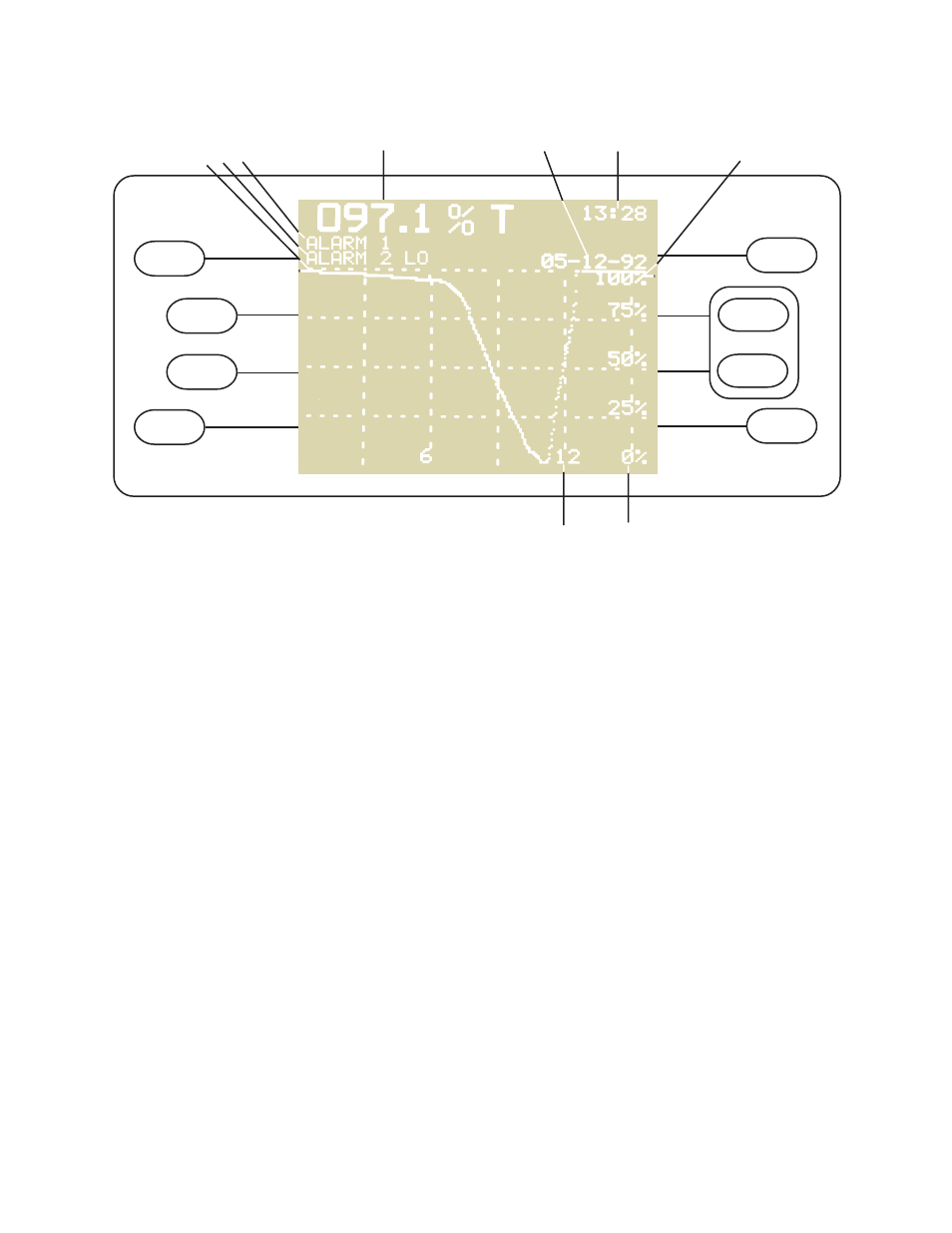

8. Backwash Display

This is the backwash display. It is only meaningful if Backwash option is connected. The screen above shows a typical backwash
cycle. In this mode, updates are made to the screen every 6 seconds. The reading is updated every second. The display shows
the following parameters:

1 -

CURRENT %T READING: 97.1 %T

2 -

GRAPH TIME BASE: 12 MINUTES

3 -

GRAPH UPPER LIMIT: 0 %T

4 -

GRAPH LOWER LIMIT: 100 %T

ALARM 1 SETTING: ALARM TURNED OFF

ALARM 2 SETTING: ALARM ON LOWER THAN 10.0 % T

7 -

TIME: 1:28 PM (SHOWN IN 24 HOUR CLOCK MODE)

8 -

DATE: MAY 12 1992

9 -

GRAPH OF BACKWASH HISTORY (with optional Backwash connected)

To leave the backwash display and get to the Main Menu push MENU. F1 - F5 are nonfictional in this display.

ALARM

MENU

9 6 5

OFF
