SPIRE II Series – Installation and Operating Instructions
Page 5-6
p
ressure
p
late
The Pressure Plate helps keep prints flat while being
fed into the rollers. The pressure Plate must be
removed before removing the Feed Table.

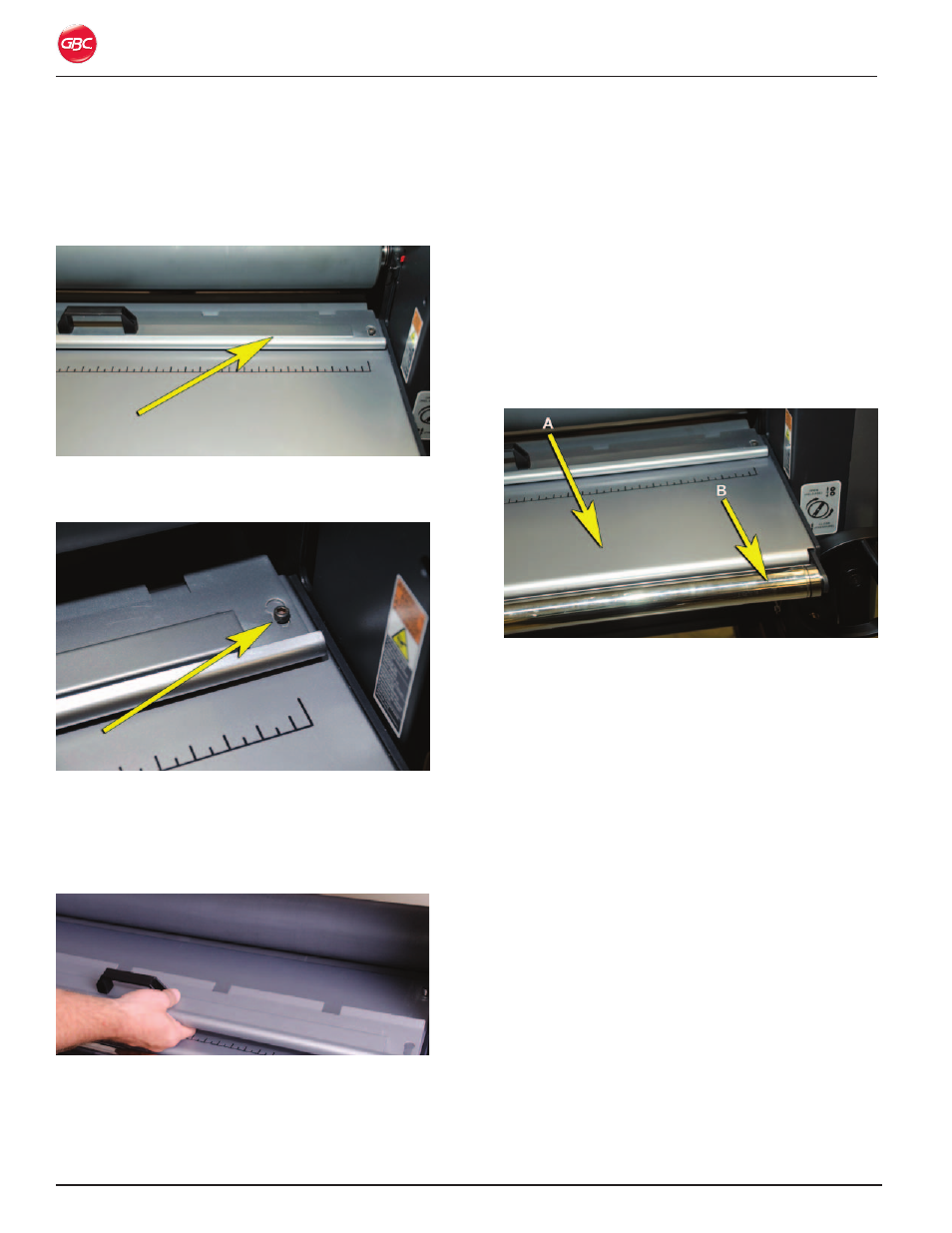

Figure 16. Pressure Plate.
r
emovInG the
p
ressure
p
late
Figure 17. Pressure Plate on stand-off.
To remove the Pressure Plate:
1. To remove the Pressure Plate, while grasping the
handles, slide the Pressure Plate away from the
Main Rollers.
Figure 18. Removing the Pressure Plate.
2. Lift the Pressure Plate off the stand-offs at both
ends.
Note: The Laminator will operate only when the Feed
Table is properly Installed. However, if the Feed Table
is removed, the laminator will only operate when
the Footswitch is pressed. When the Footswitch is
released, the laminator stops.
To install the Pressure Plate:
1. Holding the Pressure Plate by the handles, place
the holes over the stand-offs.
2. Slide the Pressure Plate towards the Main
Rollers.
F
eed
t
aBle
Figure 19. Feed Table and optional Idler.
The Feed Table (A) is used to position items for
laminating and mounting. The Feed Table is removed
only when you load film or to clean the rollers. The
Table incorporates an optional Idler on the leading
edge (B).
When the Feed Table is removed, the laminator
runs at 3 ft. (1 meter) per min. when you press the
Footswitch. Releasing the Footswitch stops the
laminator.
