Parts Needed

Ascent fuselage
Right and left wing panel
Aluminum wing tube
Wing dowels (2)
4-40 x 1/2" hex screws (2)
4-40 washers (2)

Tools and Adhesives Needed

Hobby knife
Hex Driver: 3/32"
6-minute epoxy
Rubbing alcohol
Paper towels
Felt-tipped pen/pencil

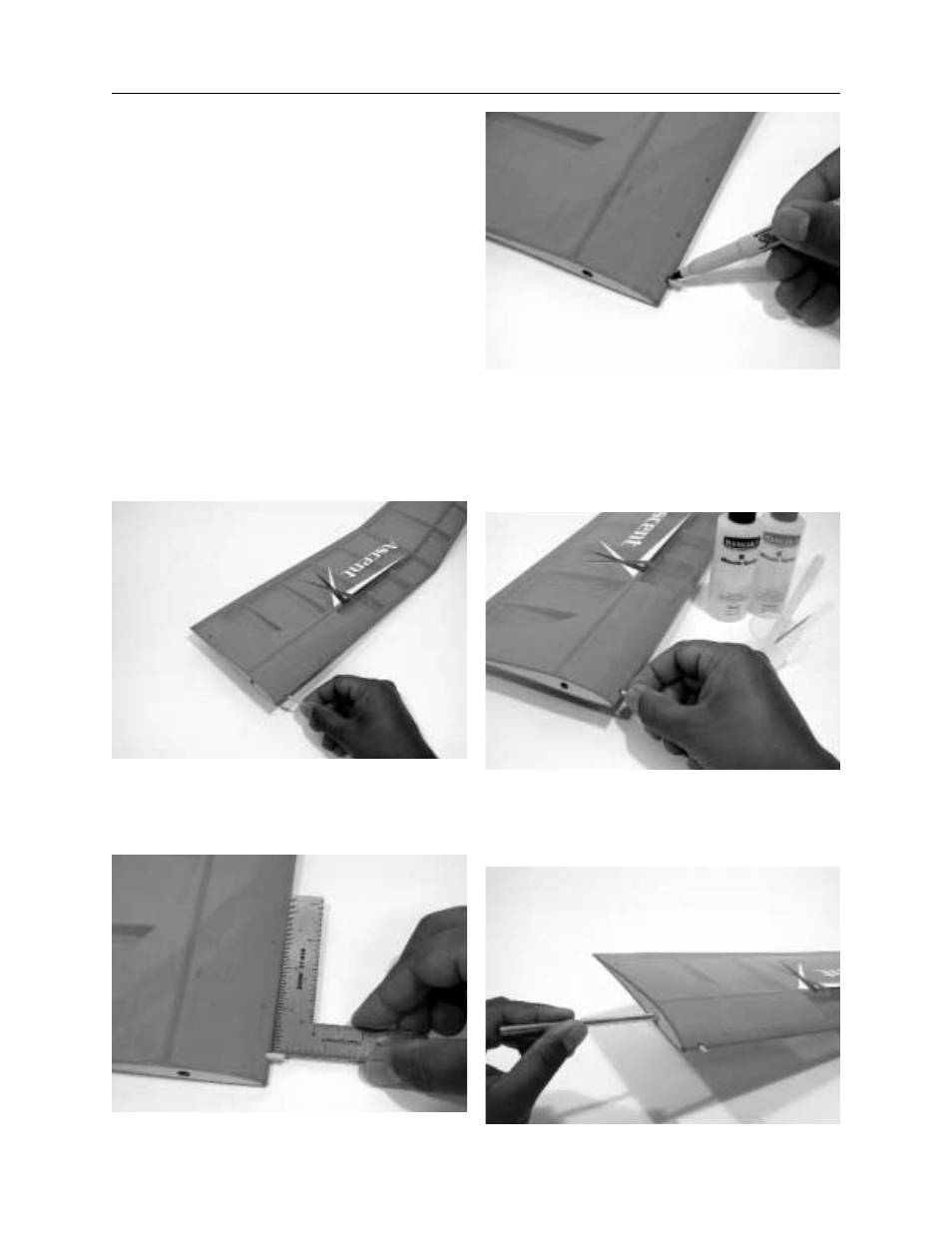

Step 1. Locate the right and left wing panels and the two
1" wing dowels. Test fit the dowels into the predrilled holes
in the leading edge of each wing.

Step 2. Insert the dowels until there is 1/4" extending past the
leading edge of the wing. Mark the dowel where it enters the
leading edge. Remove the dowels from the wing.

Step 3. Using approximately 1/2 ounce of 6-minute epoxy, glue
the dowels into the leading edge of the wing. Be sure to get
plenty of epoxy into the hole in the leading edge. Use the marks
made in the previous step to reposition the wing dowels. Wipe
away any excess epoxy using rubbing alcohol and paper towels.
Allow the epoxy to cure before moving on to Step 4.

Step 4. Locate the aluminum wing tube and slide it into the
hole in the wing root of one wing panel as shown. The tube
should slide in approximately half of its length.

Section 1: Mounting the Wing
