Parts Needed
Fuselage assembly
Plywood control horns
Quick connects (2)
Control wires (2)
Tools and Adhesives needed
Hobby knife
Pliers
Phillips screwdriver
Medium CA

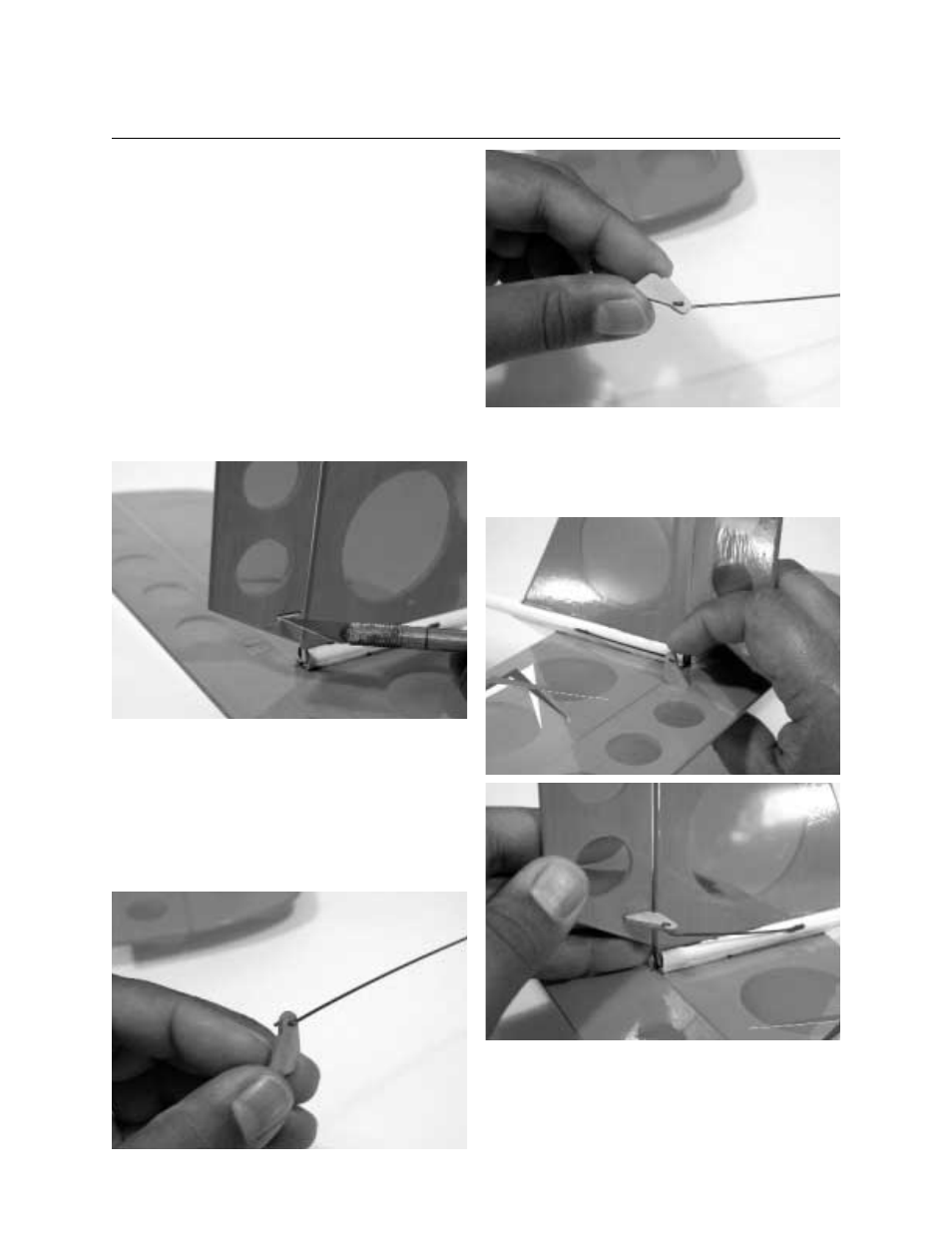

Step 1. Locate the precut slot in the elevator and rudder.
Carefully remove the covering over the slot using a sharp
hobby knife.
Step 2. Remove the elevator and rudder control wires from the
fuselage. Locate the two plywood control horns and install them
onto the Z-bends as shown.
Note: You must install the control horns onto the wires
and insert the wires back into the tail boom before gluing
the control horns to the elevator and rudder.
Step 3. Carefully slide the elevator and rudder control wires
back into their respective housing in the boom. Glue the control
horns into the control surfaces using medium CA. Make sure to
glue the horn in at 90 degrees to the control surface.
13
Section 4: Installing the Elevator and Rudder
Control Horns and Linkages
A
A
B
B
Elevator (left)
Rudder (right)
