Wing Installation
Required Parts
Fuselage
Wing (Top and Bottom)
Wing strut (2) 24" (60cm) string
Carbon wing brace, 11 3 /
4
" (300mm) (2)
Carbon wing brace, 11 3 /
8
" (290mm) (2)
Required Tools and Adhesives
Square
Hot glue
Paper towel / tissue
Foam compatible CA
Foam compatible activator
Note: When using a hot glue gun, be sure not
to touch the tip to the foam. The hot tip will
burn and melt the foam.

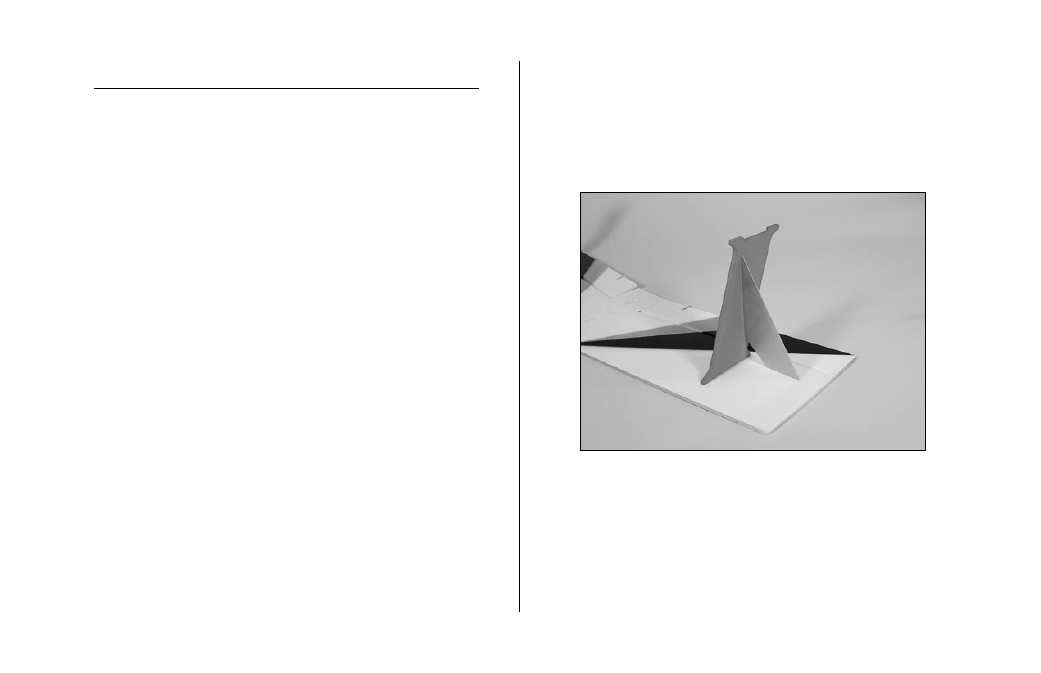

 1. Locate the wing struts. Place the struts onto the top
wing, which has the cutouts for the center cabane strut.
The struts angle towards the trailing edge of the wing.
Use a square and either foam compatible CA or hot
glue to secure the struts to the wing.
