Cowling and canopy installation – E-flite Ultimate Fx 3D ARF User Manual
Page 34
34
Cowling and Canopy Installation
Required Parts
Airframe
Cowling
Canopy
Spinner
2mm x 10mm sheet metal screw (4)
Propeller
(Use 12 x 6 if you are using the provided gearbox with
our recommended motor)
Required Tools and Adhesives
Phillips screwdriver (small)
Nut driver: 5.5mm (for gearbox)
Canopy glue
Hobby knife

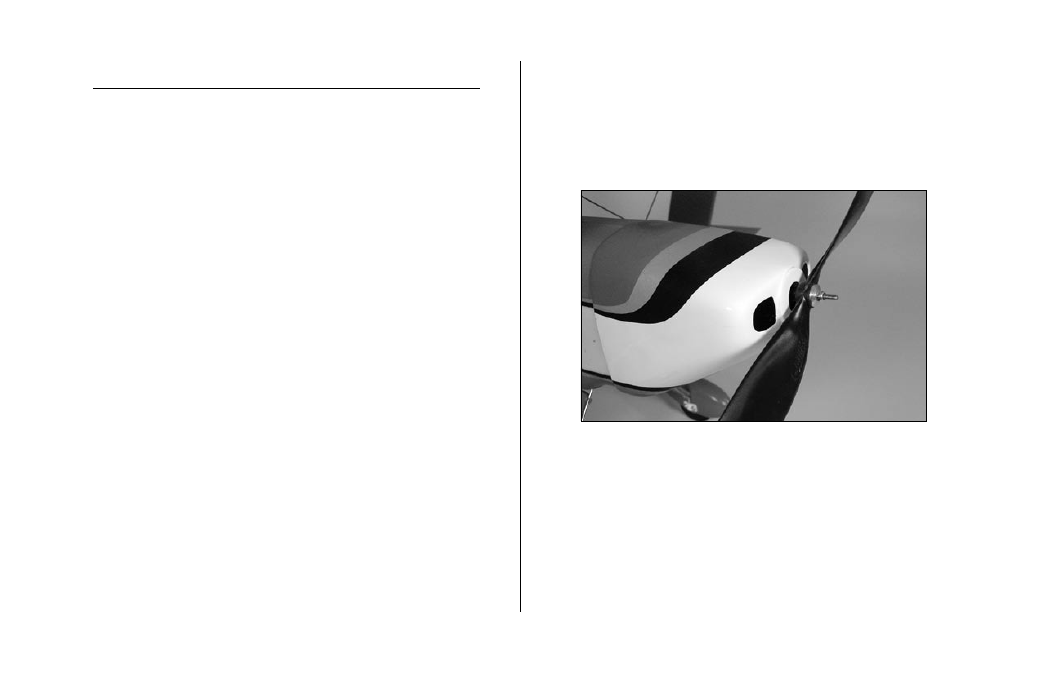

1. Slide the cowl onto the fuselage. Center the motor
shaft in the opening.
2. Attach the propeller to the gearbox using the supplied
3mm washer and 3mm locknut. Make sure not to over-
tighten the 3mm locknut. Install the spinner into position
on the gearbox shaft. If using an Outrunner motor,
install the propeller adapter and propeller.
Note: It is very important that you check to be
sure the propeller is balanced before installing
onto the shaft. An unbalanced propeller may
strip the gear. When installing the propeller,
please do not over-tighten the 3mm locknut. The
use of the locknut will prevent the propeller from
falling off in flight.
