Horizontal stab installation – E-flite Ultimate Fx 3D ARF User Manual
Page 14
14
Horizontal Stab Installation
Required Parts
Stabilizer
Fuselage assembly
110mm x 12mm hinge tape (2)
Required Tools and Adhesives
Ruler
String
T-pins
Tape
Paper towel / tissue
Foam compatible CA
Foam compatible activator

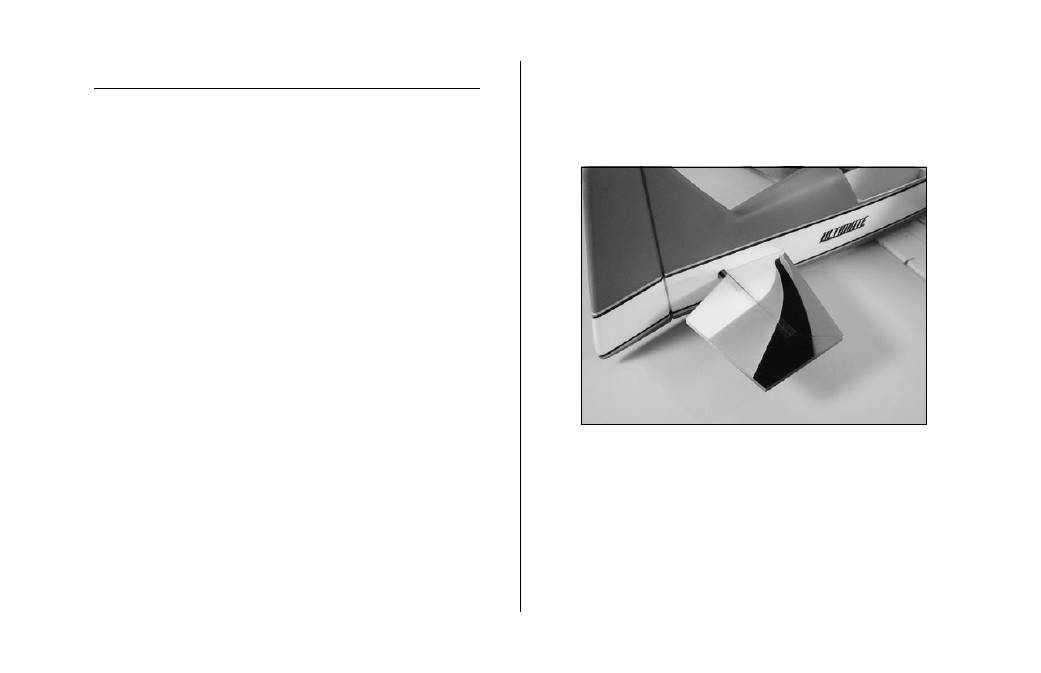

1. Remove the partially taped elevator from the stabilizer.
Slide the stabilizer into the fuselage. Use the supplied
110mm x 12mm clear tape to hinge the elevator half
on the top and bottom of the hinge line.
