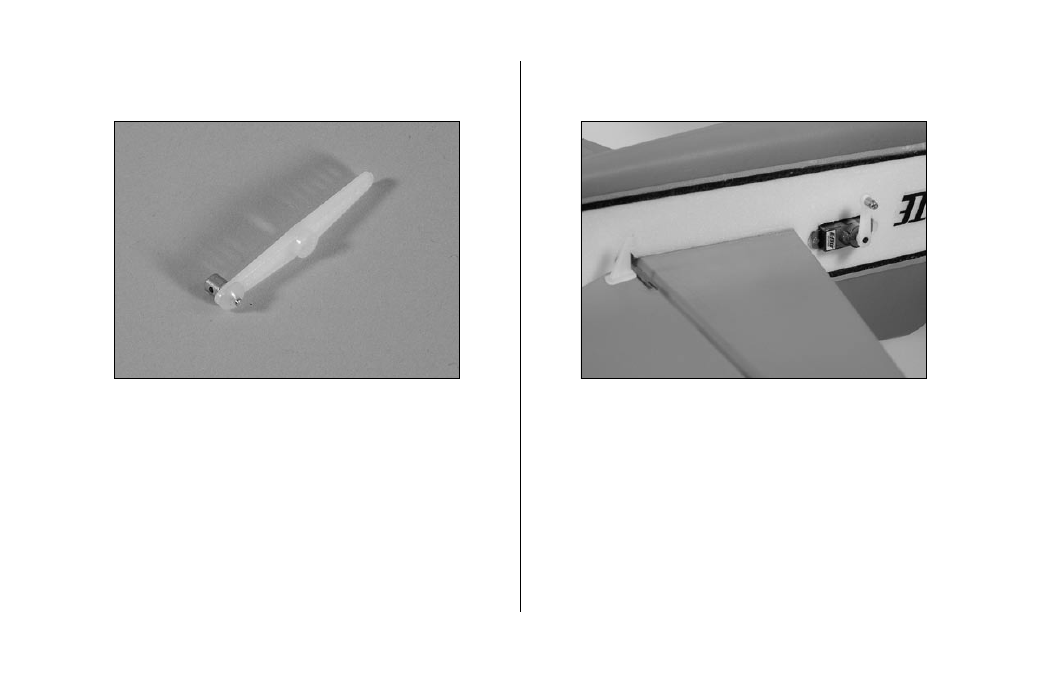

2. Install a micro control connector into a long servo
arm. Secure it using the control connector back plates.
Note: Cut off the unused half of the long
3D servo arm for the elevator servo. the aileron
servo will use the complete servo arm.
3. With the radio system on, install the servo arm on
the elevator servo.
