12

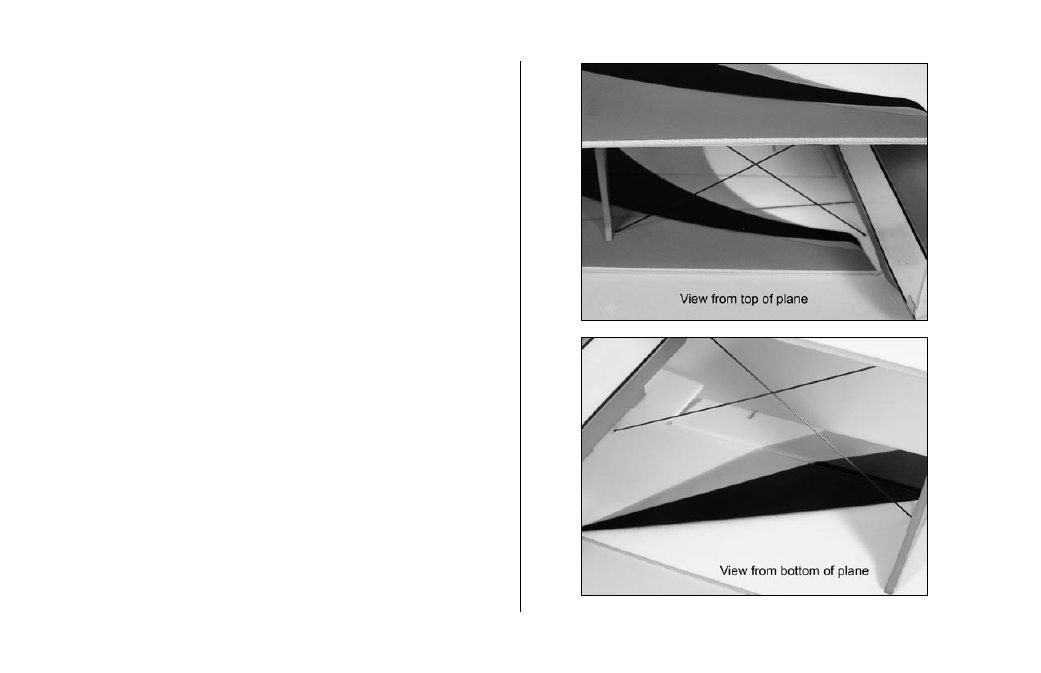

Note: The long brace (11 3
/
4
") goes from
the top near the cabane to the strut on the
bottom wing.
 6. Install the carbon wing braces by first positioning a
hole in the bottom of the lower wing by gently sliding
a carbon fiber brace through the four plastic ring
washers at the proper angle, then remove. Next, gently
slide each carbon fiber brace through the plastic ring
washers on the top of the upper wing, at the proper
angle, and have each exit though the plastic ring
washers on the bottom of the lower wing through the
holes you have already made. Glue the braces using
foam compatible CA on the insides and outside the
plastic ring washers to secure them in place.
