Page 4
MODEL 2850

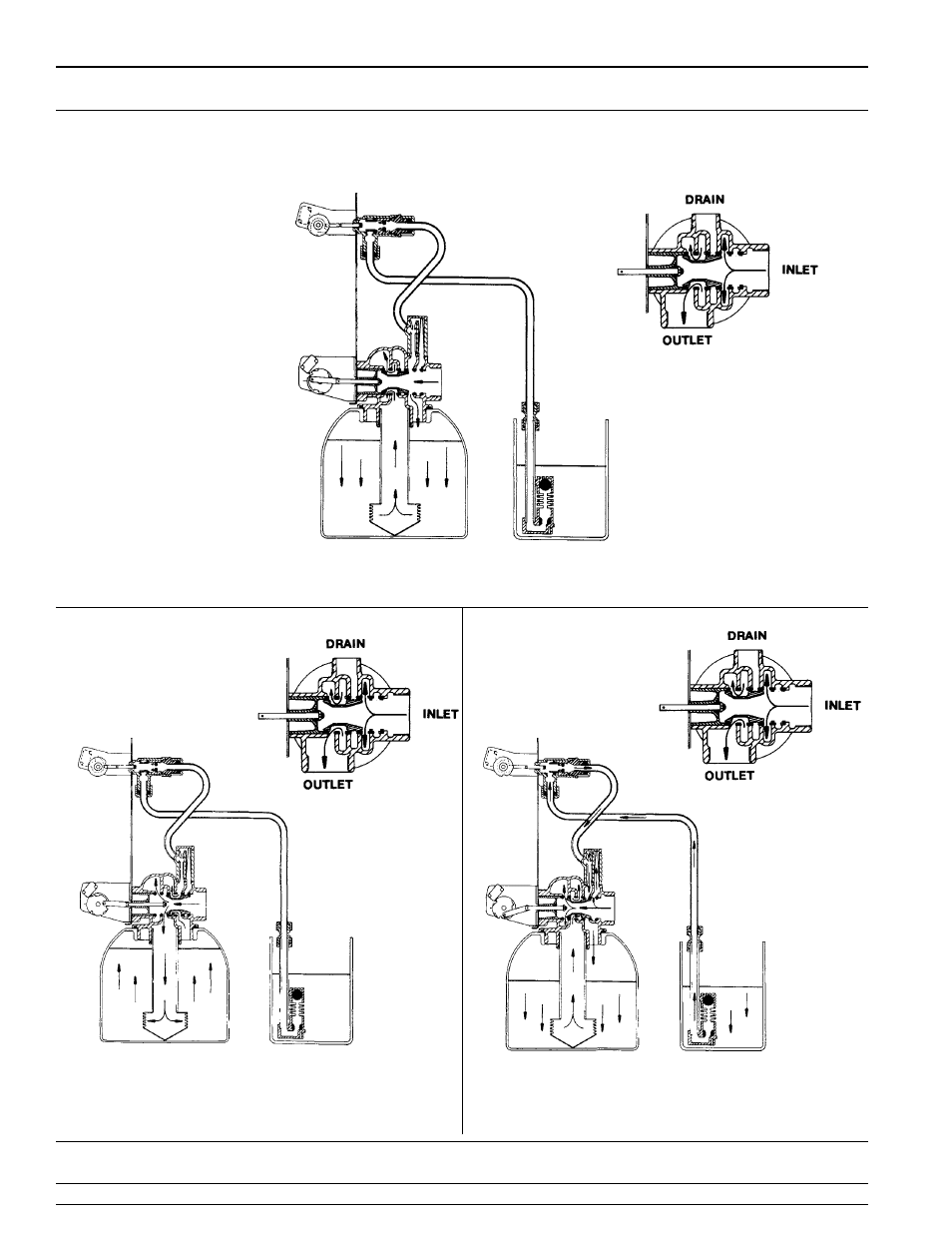

Water Conditioner Flow Diagrams
Hard water enters unit at valve inlet and flows down through the mineral in the mineral tank.
Conditioned water enters center tube through the bottom distributor
 then flows up through the
center tube  around the piston and out the outlet of the valve.
Hard water enters unit at valve inlet  flows through piston  down
center tube  through bottom distributor and up through the mineral
 around the piston and out the drain line.
Hard water enters unit at valve inlet  flows up into injector housing
and down through nozzle and throat to draw brine from the brine tank
 brine flows down through mineral and enters the center tube
through bottom distributor and out through the drain line.
INLET INLET
2
1
3
SERVICE POSITION
BACKWASH POSITION BRINE POSITION
INLET
