Service – Repair Kits (FHB)

For repair to the stem assembly

(RK-FHB

⁄

") *See Important Note.

1. Remove handle screw, handle and nameplate. Unscrew

packing nut and remove 2 packing washers and packing.

Using handle, unscrew stem assembly until threads disen-

gage and slide out.

2. Remove old check sub-assembly by pulling it straight out

from the end of the check stem. Remove old check spring.

Replace with new check spring and check sub-assembly.

(Push new assembly in by hand).

3. Reinsert stem assembly by following step 1 in reverse.

For Repair to the vent float assembly

(FHB-V-RK

⁄

") *See Important Note.

1. Unsnap plastic vacuum breaker cover. Then unscrew brass

bonnet from valve body. Remove vent float and disc assem-

bly.

2. Remove old o-ring from the brass bonnet and replace with

the new o-ring.

3. Reinsert new vent float sub-assembly and top works by fol-

lowing step 1 in reverse.

*Important Note: Prior to performing service to the FHB stem

assembly, water supply to the unit must be shut off and the

pressure drained from the valve.
Service to vent float assembly may be performed without shut-

ting off supply as long as FHB is in closed position and pres-

sure is drained from the valve.

*Supplied with FHB-V-RK

⁄

**Supplied with RK-FHB

⁄

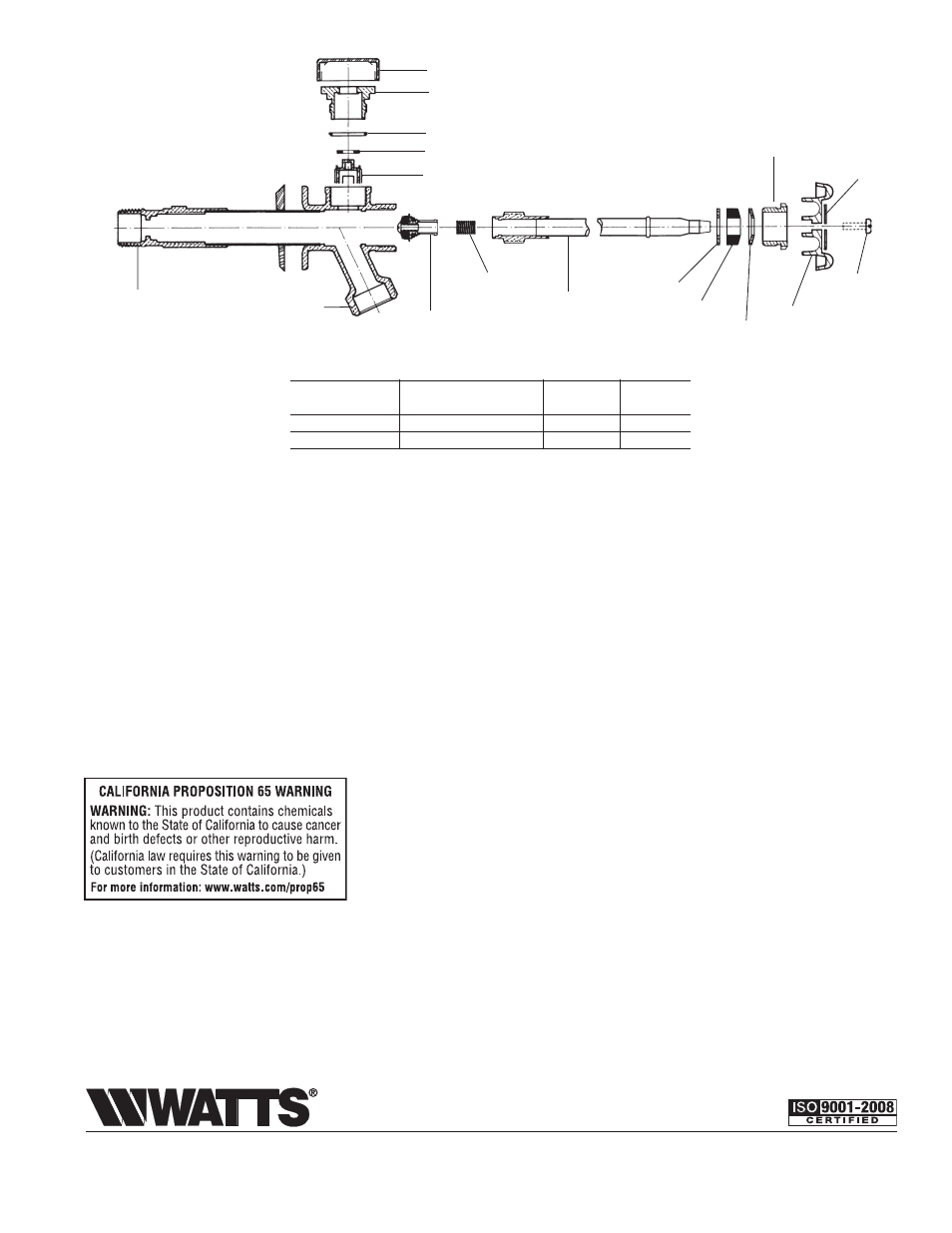

Vacuum Breaker Cover

Brass Bonnet

O-ring*

Disc*

Vent Float*

Seat End

Hose End

Check

Sub-Assembly**

Check

Spring**

Stem

Washer

Packing**

Washer

Handle

Stem

Screw

Packing Nut

Nameplate

Ordering

Kit

Valve

Code No.

No.

Series

Size

0723064

FHB-V-RK

" FHB All

0723061

FHB-FHB

" FHB All

FHB-V-RK

" consists of: bonnet O-ring, disc, and vent float.

RK-FHB

" consists of: check sub-assembly, check spring

and stem packing.

Repair Kits

IS-FHB 1139

EDP#1915096
