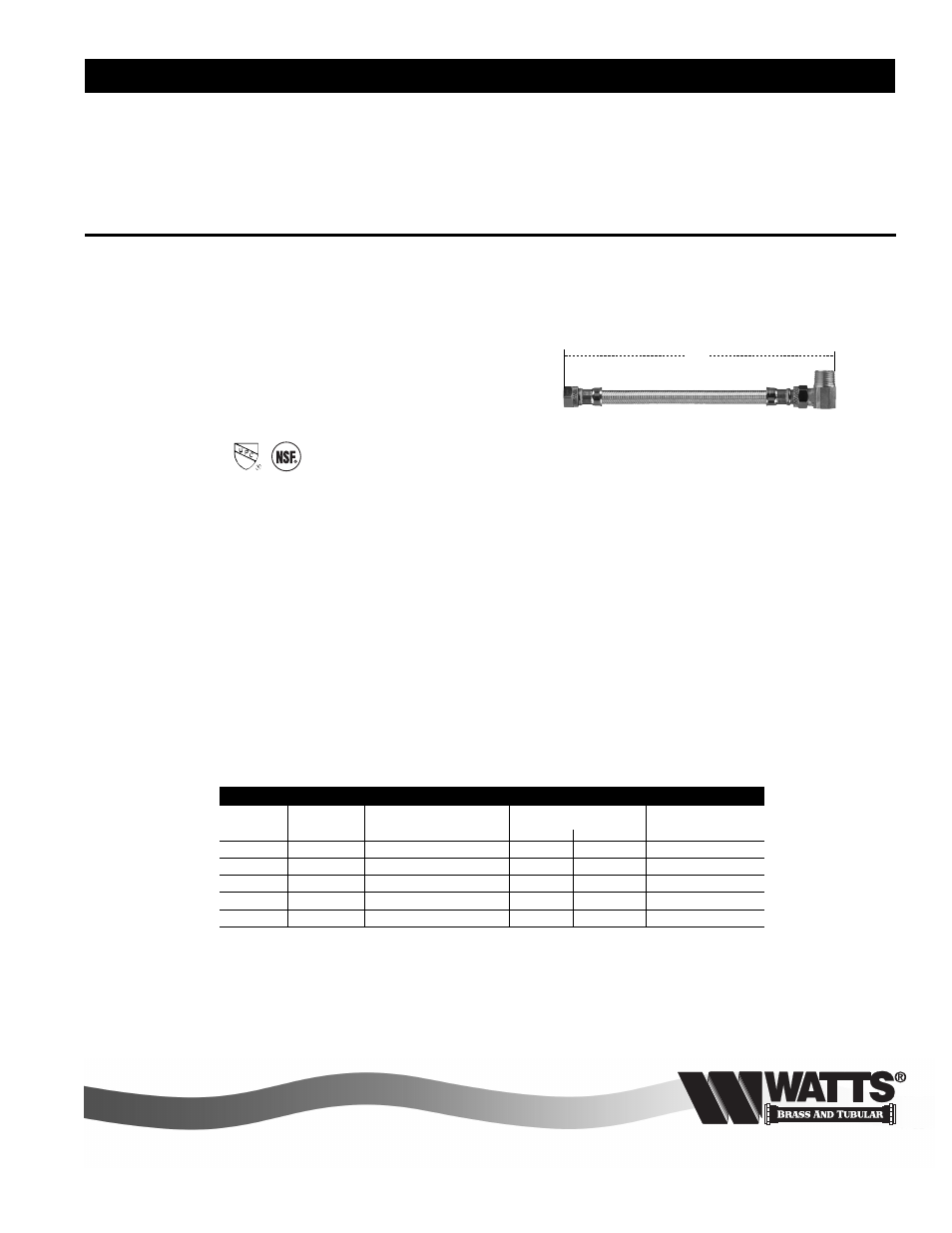

Watts 457 2DWSS - Manual

Quick'N Easy ®
Braided Stainless Steel
Dishwasher Connectors
Features
• Available in 48", 60" and 72"
(1219, 1524 and 1829mm) lengths
• NSF & IAPMO Listed
Pressure – Temperature
Maximum Temperature: 180ºF (82ºC)
Maximum Pressure: 125psi (8.75 bar)
For Commercial & Residential Applications
ES-WB&T-FlxblCnctrs-Dishwasher
Job Name ––––––––––––––––––––––––––––––––––––––––––– Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location ––––––––––––––––––––––––––––––––––––––––– Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer ––––––––––––––––––––––––––––––––––––––––––––– Contractor’s P.O. No. –––––––––––––––––––––––––––––––––––
Approval ––––––––––––––––––––––––––––––––––––––––––––– Representative ––––––––––––––––––––––––––––––––––––––––
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise
measurements, please contact Watts Technical Service. Watts reserves the right to change or modify product design, construc-
tion, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications
on Watts products previously or subsequently sold.
815 Chestnut St., No. Andover, MA 01845
Tel: 978.688.1811 • Fax: 978.794.1848
www.wattsbrass-tubular.com
ES-WB&T-FlxblCnctrs-Dishwasher 0534 © Watts Brass & Tubular 2005
A
MODEL TO SUBMIT DESCRIPTION DIMENSIONS MATERIAL
A
in. mm.
454 8DWSS 3 ⁄
8
" x 3 ⁄
8
" 48 1219 Stainless Steel
456 0DWSS 3 ⁄
8
" x 3 ⁄
8
" 60 1524 Stainless Steel
456 0DWA 3 ⁄
8
" x 3 ⁄
8
" male adapter 60 1524 Stainless Steel
457 2DWSS 3 ⁄
8
" x 3 ⁄
8
" 72 1829 Stainless Steel
457 2DWA 3 ⁄
8
" x 3 ⁄
8
" male adapter 72 1829 Stainless Steel
Stainless Steel
