Series LFTP300
Trap Primer
Size: 1 ⁄
2
"
The Series LFTP300 operates by sensing the pressure drop in
the supply line from downstream fixtures or appliances. The pres-
sure reduction above the Valve Disc (2) causes the disk to move
upward opening the Lower Disc Seal (4) and closing off the Upper
Disc Seal (1). With the Lower Disc Seal (4) open the stored air
pressure in the Air Chamber (5) pushes a portion of the contained
volume of water from the lower chamber out through the opening
beneath the Lower Disc Seal (4) to prime the trap. When there is
no longer a demand in the supply line and the full line pressure is
restored, the Valve Disc (2) lowers, opening the Upper Disc Seal,
allowing flow through the One Way Seal (3), seating the Lower
Disc Seal (4) and recharging the Air Chamber (5) for the next
pressure drop cycle. The Series LFTP300 incorporates a built in
vacuum breaker (6) which does not satisfy compliance to ASME
A112.1.2. The Series LFTP300 features Lead Free* construction to
comply with Lead Free* installation requirements.
This Engineering Sheet is not intended to replace the product
installation and safety information available or the experience of a
trained product installer. Please refer to the product installation
instructions for further information.
Models
• LFTP300T - Threaded Inlet and Outlet Connect
• LFTP300S - Solder Inlet and Threaded Outlet Connect
Features
• Built in Vacuum Breaker Ports (6)
Specifications
A trap primer shall be installed in plumbing systems to prevent
floor drain traps from losing their water seal by evaporation.
Maintaining the water seal will prevent the backflow of sewer gas
into the buildings or rooms where the traps are installed. Trap
primers are specified in various plumbing codes such as IAPMO,
Southern Standard Building Code, National Standard Plumbing
Code and many state and local plumbing codes in U.S.A.
and Canada. The device shall meet the requirements of ASSE
Standard 1018. Lead Free* Trap Primer Series LFTP300 shall be
constructed using Lead Free* materials. Lead Free Trap Primers
shall comply with state codes and standards, where applicable,
requiring reduced lead content. Watts Series LFTP300T
(threaded), or LFTP300S (solder).
For Residential and Commercial Applications
ES-LFTP300
Job Name ––––––––––––––––––––––––––––––––––––––––––– Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location ––––––––––––––––––––––––––––––––––––––––– Approval –––––––––––––––––––––––––––––––––––––––––––––
Engineer ––––––––––––––––––––––––––––––––––––––––––––– Contractor’s P.O. No. ––––––––––––––––––––––––––––––––––
Approval ––––––––––––––––––––––––––––––––––––––––––––– Representative ––––––––––––––––––––––––––––––––––––––––

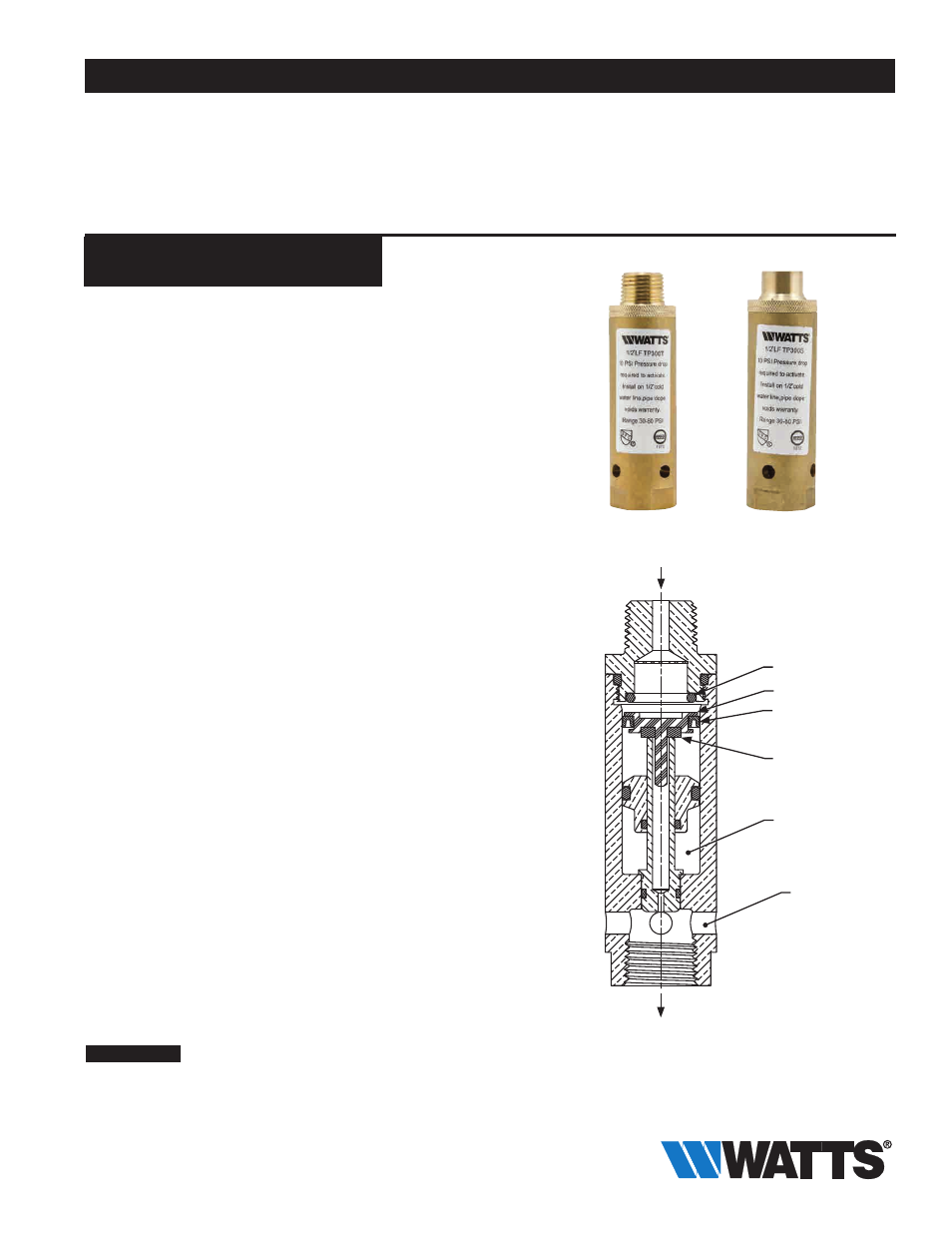

Model LFTP300T Model LFTP300S
Upper Disc Seal (1)
Supply
Valve Disc (2)
One Way Seal (3)
Lower Disc Seal (4)
Air Chamber (5)
To Trap
LEAD FREE
*
NOTICE
Inquire with governing authorities for local installation requirements. *The wetted surface of this product contacted by consumable
water contains less than 0.25% of lead by weight.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials with-
out prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
Vacuum Breaker
Ports (6)
