Series 05 and LF05

Water Hammer Arrestors

Sizes:

3

8

" -

3

4

"

Shock waves are caused by fast acting valves and can

be controlled by using a shock arrestor. Use one unit

for each hot and cold water line.
For new or existing water lines with pressures up to

150psi (10.3 bar) and temperature ranges of 33°F to

180°F (0.5°C to 82°C). Systems which exceed 60psi

shall be installed with a pressure reducing valve up-

stream of the unit.
Select a location as close to the source of shock (i.e.

dishwasher, icemaker, toilet or faucet) as possible. Al-

low sufficient clearance for installation.
For your safety these units are pre-charged at the fac-

tory and are not rechargeable or repairable.
Although they function in any orientation, Figure 1, 2 &

3 show the proper installation where the shock would

be absorbed most effectively.

IS-05

WARNING

!

Read this Manual BEFORE using this equipment.
Failure to read and follow all safety and use infor-

mation can result in death, serious personal injury,

property damage, or damage to the equipment.
Keep this Manual for future reference.

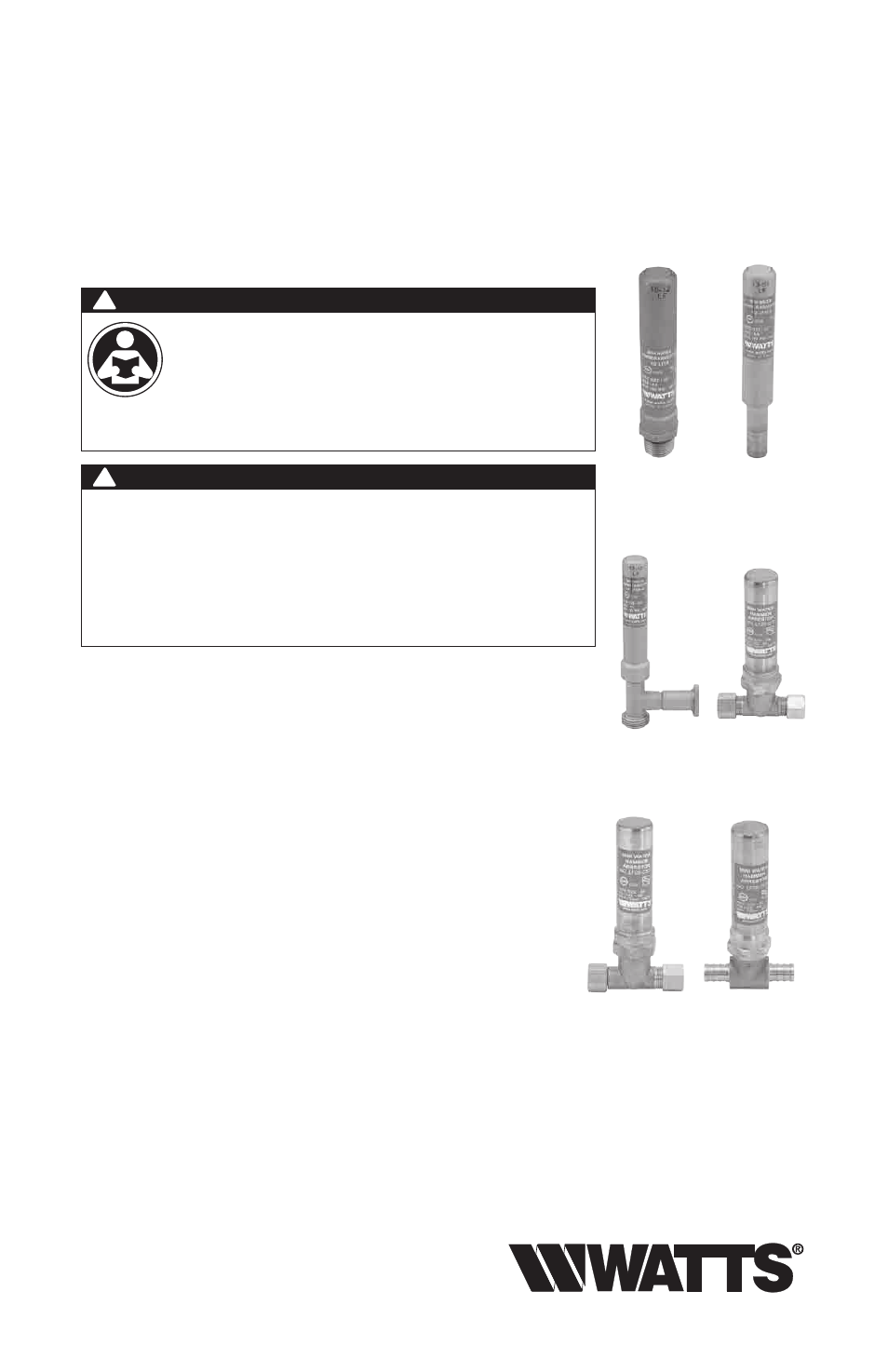

Installation Guidelines

Model LF05-S

Model LF05

Model LF05-CXT

Model LF05-PEX-T

Model LF05-C-T

Model LF05H-M1

You are required to consult the local building and

plumbing codes prior to installation. If the infor-

mation in this manual is not consistent with local

building or plumbing codes, the local codes should

be followed. Inquire with governing authorities for

additional local requirements.
