Ka2-bd, Installation instructions

KA2-BD
Installation Instructions
IS-KA2-BD
Incorrect Installations
This mounting kit is designed specifi cally to be used to install the Watts Model A2C-M1 IntelliFlow™
automatic washing machine shutoff valve.
Important Cautions!
1. This kit contains parts to simplify installation of the Watts IntelliFlow Model A2C-M1. If you are not familiar with piping procedures,
we recommend you contact a licensed plumbing contractor to install the Watts A2C-M1 Intellifl ow.
2. Prior to beginning installation, read all instructions to familiarize yourself with the components of this kit and the assembly pro-
cedures.
3. Additional CPVC tubing, elbows, or fi ttings may be required to complete your particular installation. You can obtain those items
at your local hardware store or lumber yard.
Note: The Union tailpieces supplied with the Intellifl ow are not required when the adapters are used.
Installing the A2C-M1 IntelliFlow Automatic Washing Machine Shutoff Valve

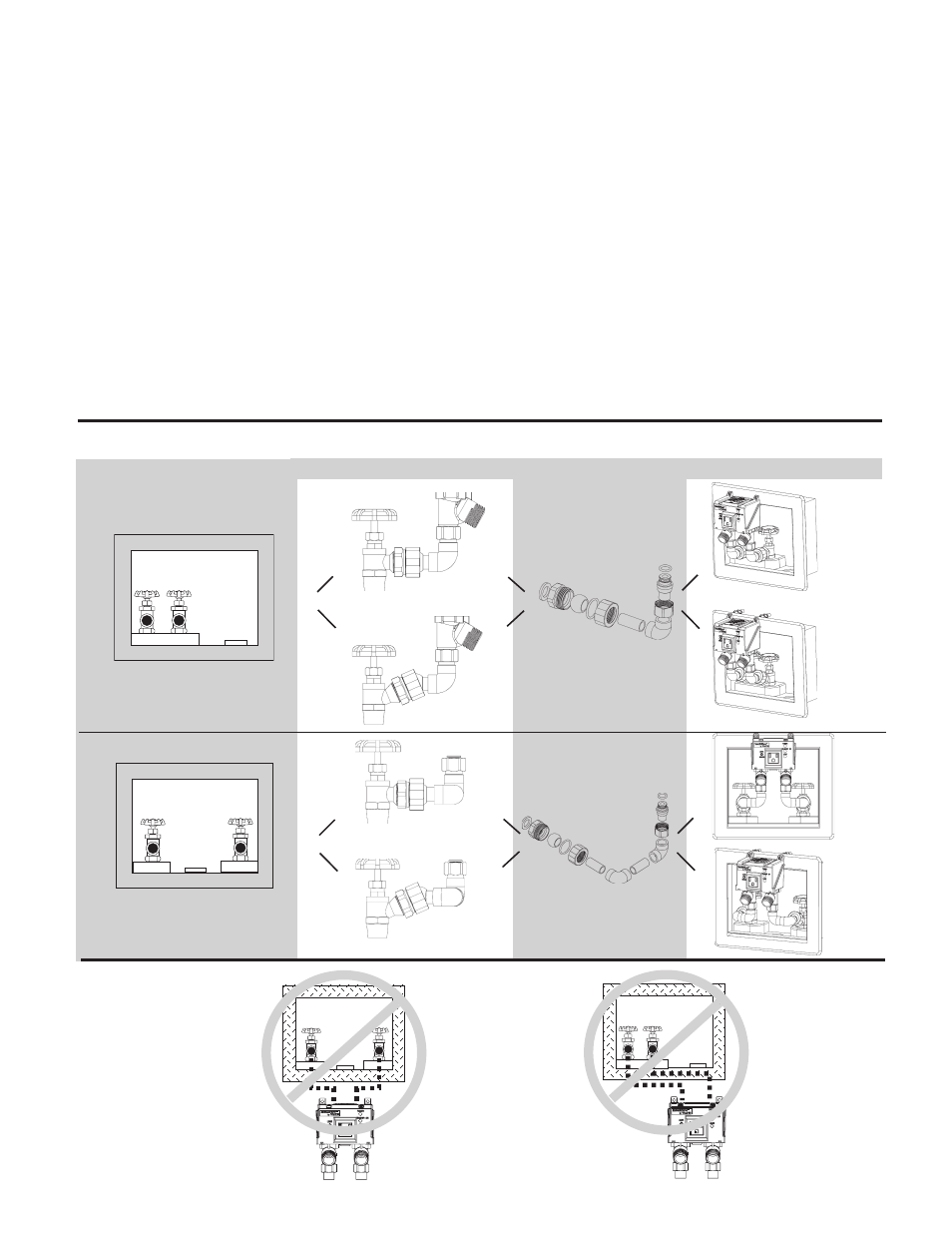

1. Plan where you want to locate the IntelliFlow A2C-M1 and how you want to pipe it in prior to starting the actual
installation. This will help you avoid problems later in the process. Refer below to Figure A for typical piping
arrangements. Caution! In all cases, be sure the Intelliflow A2C-M1 or piping does not obstruct the washing machine
drain tube as shown in Figures B and C.
2. Shut off water supply to the washing machine shutoff valves.
3. Noting their hot and cold water position, disconnect the washing machine hoses from the shutoff valves.
Figure B
Figure C
left or right drain
Center drain
If your current
installation looks like
fi nal installation
with valves
use
Figure A
This kit can be used for either left or right or center drain installations with straight or angle shut off valves.
Straight
Angle
Straight
Angle
Drain
Drain
