Note: PVB’s must be installed a minimum of 12" (305mm) above
the highest point of water in the sprinkler system.
TWS with Watts U009AQT Reduced
Pressure Backfl ow Preventer
Note: RPZ’s must be installed a minimum 12" (305mm)
above ground level.
Union Inlet
Drain Port
Meter Box
Drain Port
or
Blow Down
Drain Port
or
Blow Down
TWS with Watts 800 Series
Pressure Vacuum Breaker
Front
View of
this
installation
TWS with Watts 007QT
Double Check Assembly
Water
Supply
To
Sprinklers
To
Sprinklers
Watts TWS
Water
Supply
Water
Supply
To
Sprinklers
Watts 007QT
Key
Watts TWS
Key
Key
Watts TWS

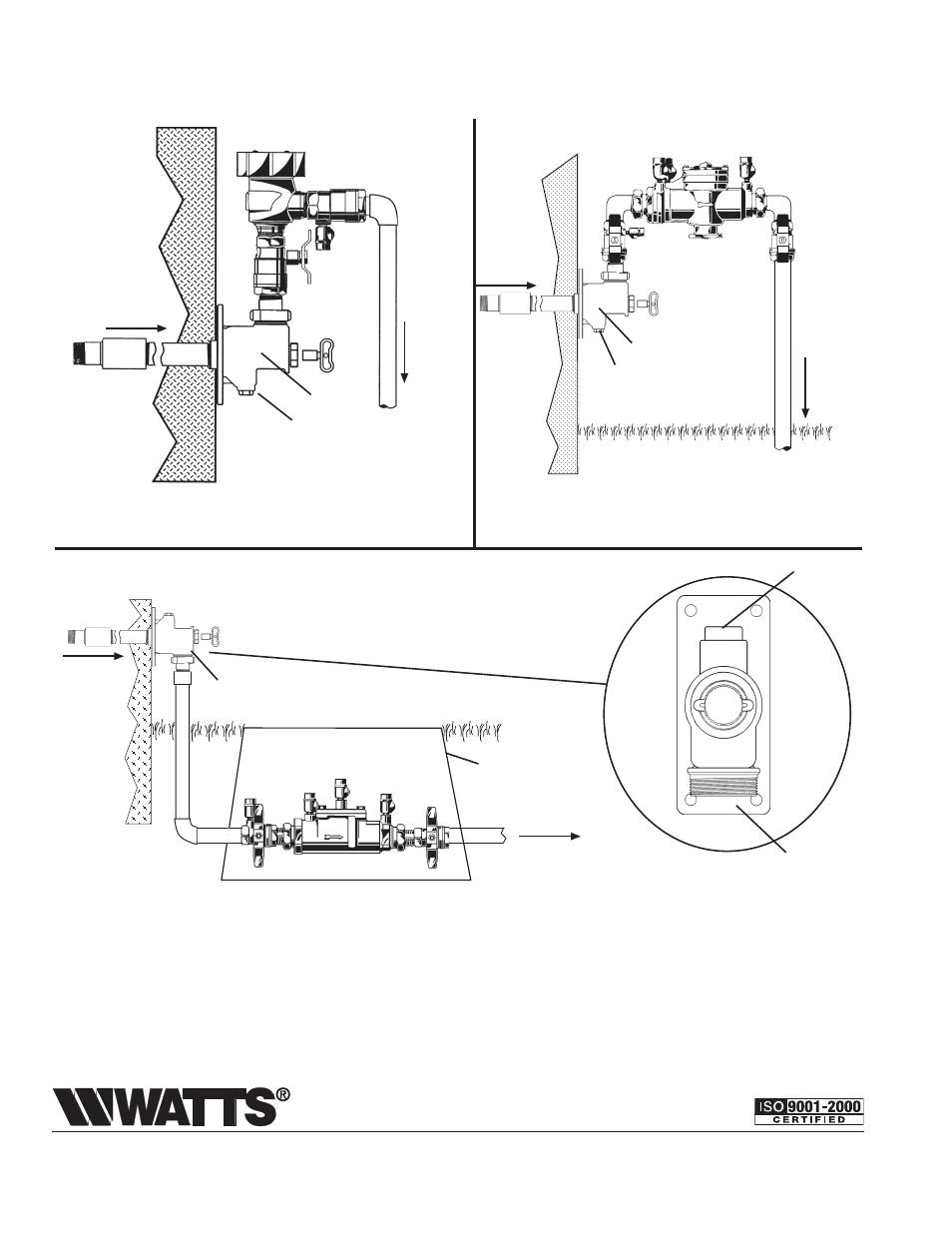

Typical Installations
Figure 2 Figure 3
Figure 4 Figure 5
IS-TWS 0829 EDP# 1910749 © Watts, 2008
