R55 Color Mark Sensor
SENSITIVITY
MODE
1. D.O.
| L.O.
2. NO
| 50ms ONE SHOT
3. NO | 50ms OFF DELA
Y
4. ON
| OFF DISPLA
Y
BEST SETTING IS EQUAL LEDS LIT ABOVE & BELOW SWITCH POINT RECEIVED LIGHT
POINT
SWITCH
LOAD
bn
10-30 V dc
0 to 10mA
+
–
R55CG1
bu
wh
bk
ye LOAD
LOAD
1. D.O. | L.O.
2.
NO | 50ms
ONE-SHOT
3.
NO | 50ms
OFF-DELAY
4.
ON | OFF
DISPLAY
12
3
4
On
Switches
Off
Tethered Switch Cap

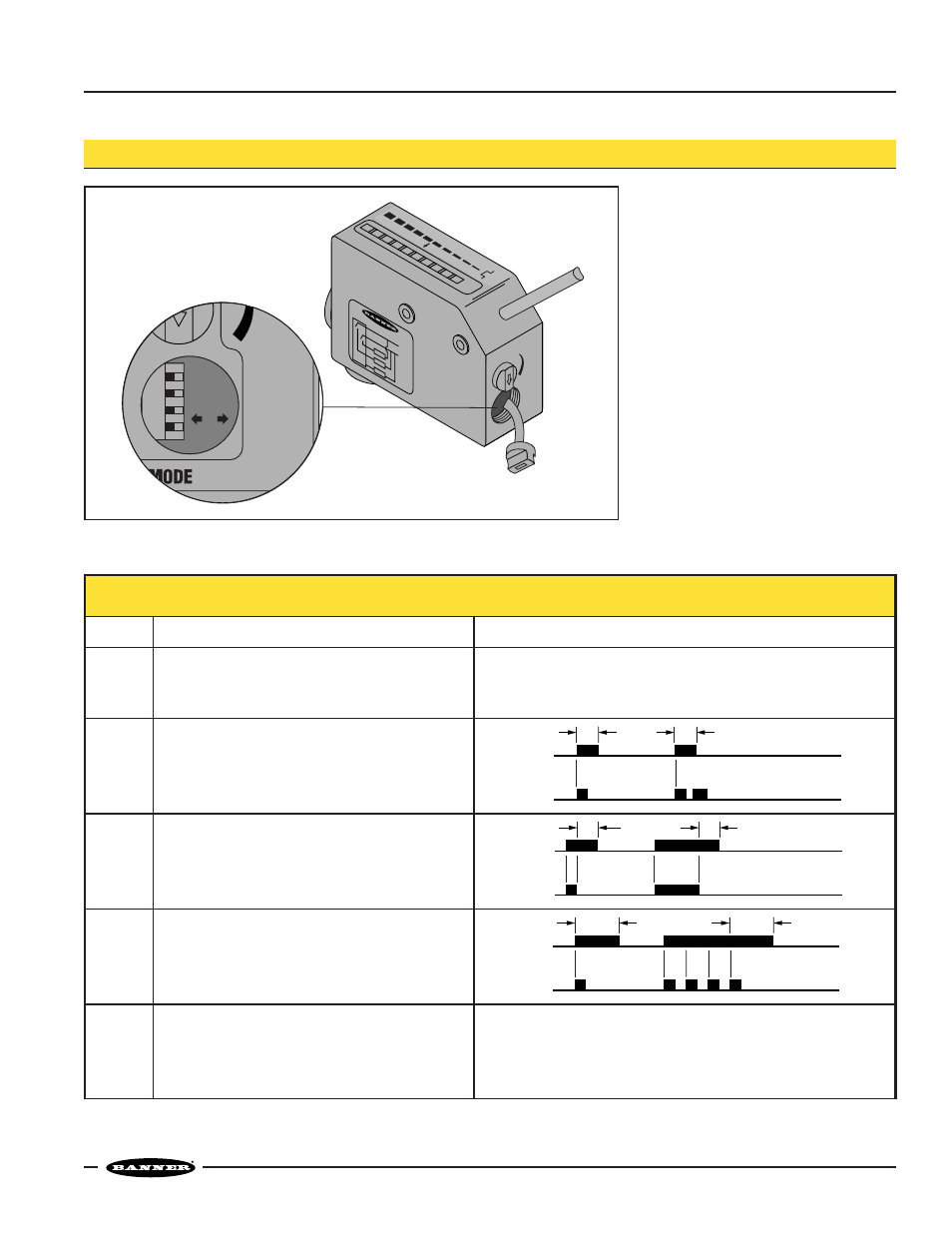

Figure 2. R55 Mode Settings
The four switches located behind the
tethered cap labeled “MODE” are used
to select the functions shown in the
table below.
R55 Mode Settings
R55 DIP Switch Setting Configurations
Switch Function Description
1
ON = Dark Operate (D.O.)
OFF = Light Operate (L.O.)
Switching outputs energize at transition from light to dark
Switching outputs energize at transition from dark to light
2
ON = no one-shot timer
OFF = 50 millisecond non-retriggerable one-shot
3
ON = no off delay timer
OFF = 50 millisecond off delay timer
2 & 3
ON = no output timer
OFF = 100 millisecond retriggerable one-shot
4
ON = 10-element light bar display is enabled
OFF = 10-element light bar display is disabled
50 ms 50 ms
Sensor
Output
Sensing
Event
50 ms 50 ms
Sensor
Output
Sensing
Event
100 ms 100 ms
Sensor
Output
Sensing
Event
NOTE: Factory setting is all switches in ON position.
