OMNI-BEAM
Accessories
Banner Engineering Corp. 9714 Tenth Ave. No. Minneapolis, MN 55441 Telephone: (612) 544-3164 FAX (applications): (612) 544-3573

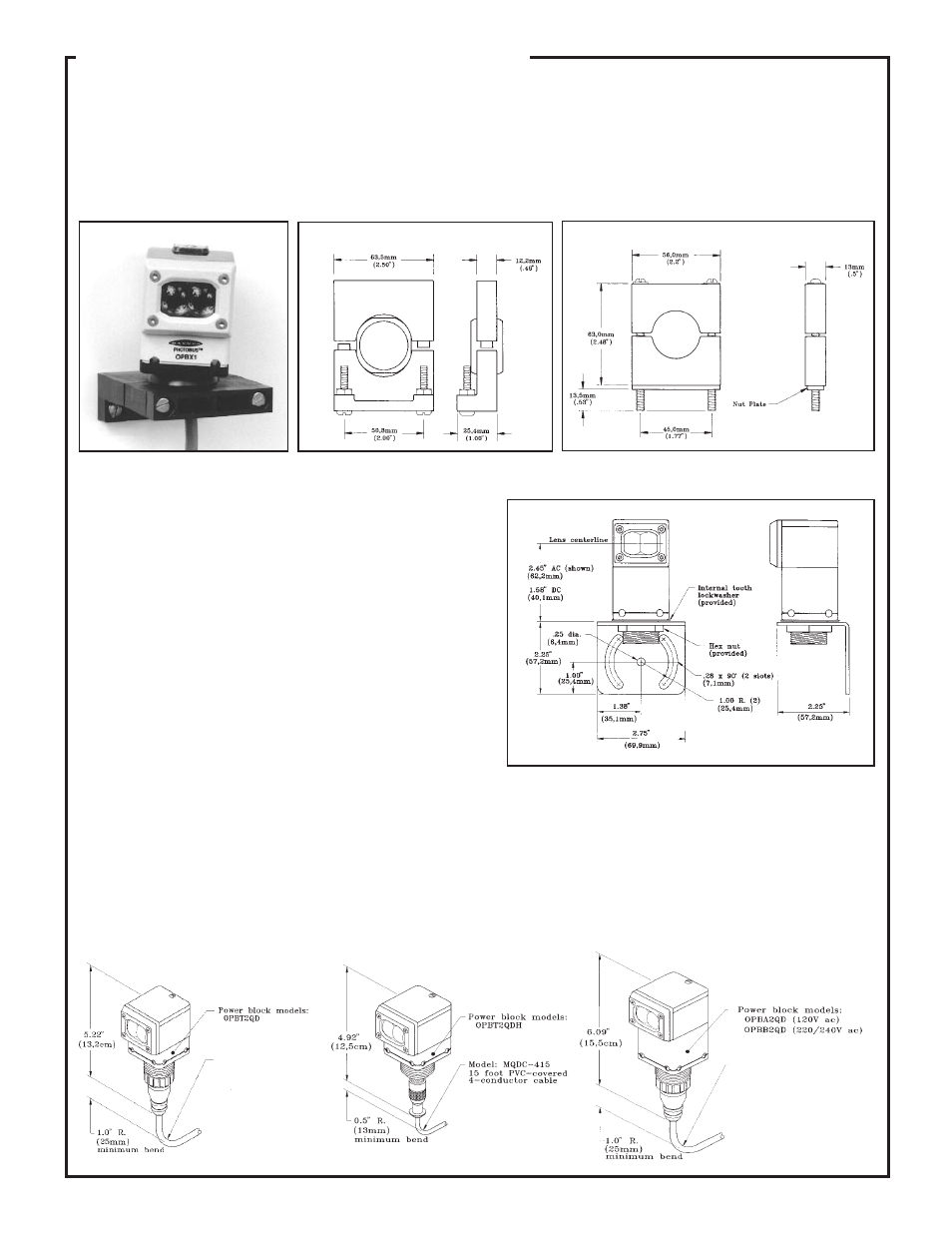

Dimension Information,
MBCC-412 minifast ™ Cable
Dimension Information,
MBCC-512 minifast ™
Cable
Accessory mounting bracket model SMB30S is a swivel mount bracket whose adjustable swivel ball locks in place when its two clamping bolts
are tightened. Bracket material is black VALOX ® . Hardware is stainless steel, and mounting bolts are included. This bracket may be used
with OMNI-BEAMs and other sensors having M30 x 1,5 threads. Bracket dimensions are given below.
The model SMB30C split clamp bracket is a VALOX ® bracket similar to the SMB30S but without the adjustable ball. The bracket grips the
sensor by the sensor's threaded base. See dimensions, below right.
SMB30S Swivel Mounting Bracket and SMB30C Split Clamp Mounting Bracket
Quick-disconnect Cables
Quick-disconnect cables are available in two styles: minifast™ SJT-type and eurofast™ ST-style* (for standard dc power blocks only). They
are ideal for use in situations where it is desireable to be able to substitute or replace the sensor and/or cabling.
Standard OMNI-BEAM dc power blocks use 4-conductor cables. Standard ac models use cables with 5 conductors. It is impossible to plug
either an ac or a dc sensor into the wrong cable.
Minifast cables are 12 feet long. Eurofast cables are 15 feet long. All quick-disconnect cables have 22 AWG conductors. Dimensional
information and cable/power block compatibility are given in the drawings below. See also table of power blocks, page 5.
*Contact the factory for availability of eurofast™ QD models
SMB30S SMB30C
SMB30S
SMB30MM 2-axis Bracket
Dimension Information,
MQDC-415 eurofast
™
Cable*
This black nylon assembly easily slips over the cable of prewired
OMNI-BEAM models and threads into the base of the power block. A
flexible extender prevents sharp cable bends and extends the life of
cable that is subject to repeated flexing.
The HF1-2NPS is resistant to gasoline, alcohol, oil, grease, solvents,
and weak acids. It has a working temperature range of -30 to +100
°
C
(-22 to +212
°
F). The HF1-2NPS is sold in packages of 10 pieces, and
is UL recognized and CSA certified.
HF1-2NPS Flexible Cable Protector (not shown)
Accessory mounting bracket model SMB30MM (right) has curved
mounting slots for versatility in mounting and orientation. The OMNI-
BEAM mounts to the bracket by its threaded base, using a jam nut and
lockwasher (supplied). The curved mounting slots have clearance for 1/
4-inch screws. Bracket material is 11-gauge stainless steel.
Model MBCC-412
12-foot PVC-covered
4-conductor SJT-type cable
Model MBCC-512
12 foot PVC-covered
5-conductor SJT-type cable
