Sensing mode: Polarized retroreflective; use with Banner BRT-.6,
BRT-1, BRT-1.5, or BRT-3 corner cube retroreflector
Sensing beam: Visible red, 650 nm
Response time: 4 milliseconds on and off
Repeatability: 0.2 milliseconds
Construction: OMNI-BEAM sensor heads are molded from rugged
VALOX
® thermoplastic polyester for outstanding electrical and me-
OSBLVAGC Sensor Head Specifications
OMNI-BEAM's
sensor block and
power block bolt and
plug together quickly
and easily.
An optional timing
logic module may be
added at any time.
!
WARNING
OMNI-BEAM photoelectric
presence sensors do NOT include the self-checking
redundant circuitry necessary to allow their use in
personnel safety applications. A sensor failure or
malfunction can result in either an energized or a
de-energized sensor output condition.
Never use these products as sensing devices for personnel protection.
Their use as safety devices may create an unsafe condition which could
lead to serious injury or death.
Only MACHINE-GUARD and PERIMETER-GUARD Systems, and
other systems so designated, are designed to meet OSHA and ANSI
machine safety standards for point-of-operation guarding devices. No
other Banner sensors or controls are designed to meet these standards,
and they must NOT be used as sensing devices for personnel protection.

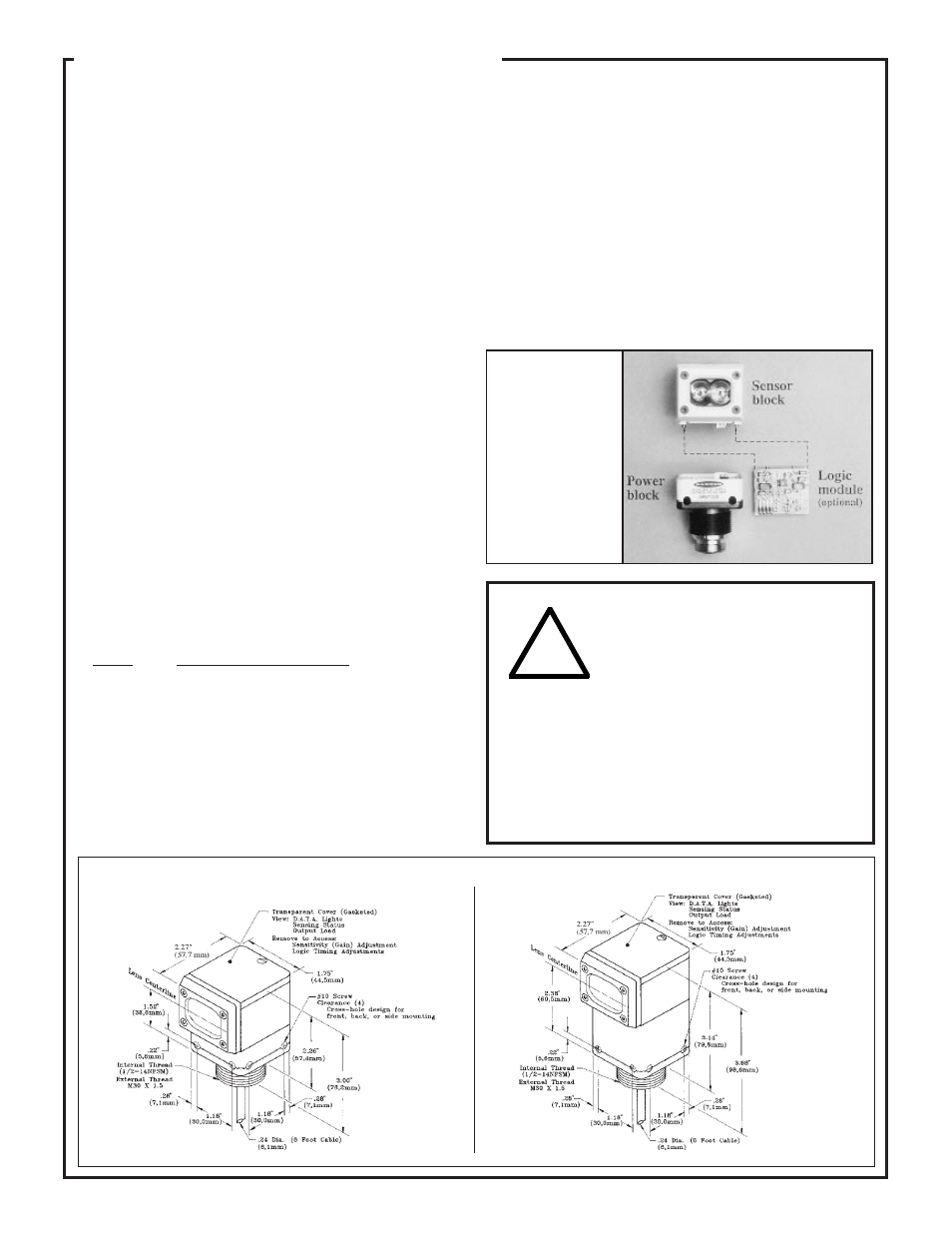

OSBLVAGC Dimensions (with dc Power Block) OSBLVAGC Dimensions (with ac Power Block)
OSBLVAGC
Sensor Head
5
VALOX ® and LEXAN ® are registered trademarks of General Electric Company.
Logic Modules
Power Blocks
Logic Modules and Power Blocks for the OSBLVAGC Sensor Head
chanical performance in demanding applications. The top view
window is LEXAN
® polycarbonate. Lenses are acrylic. Hardware is
stainless steel. When assembled, all parts are fully gasketed. Rated
NEMA 1, 2, 3, 3S, 4, 12, and 13 when assembled.
Operating Temperature Range: -40 to +70
°
C (-40 to +158
°
F)
Delay upon power-up: 200 milliseconds maximum (power block
outputs are non-conducting during this time
Timing logic may be added to the OSBLVAGC at any time. Timing
logic modules simply slide into the sensor block module. There are
three models:
OLM5 ON-delay or OFF-delay or ON/OFF delay
OLM8 One-shot or delayed one-shot, 15 sec. max.
OLM8M1 One-shot or delayed one-shot, 1 sec. max.
The power block determines the sensor operating voltage and also the
sensor output switch configuration. Models are available with a built-
in 6-foot long cable, or with either of two styles of quick-disconnect
("QD") plug-in cable fittings. See page 6 for detailed QD cable
information. See also data sheet 32888 for further information about
OMNI-BEAM power blocks.
Model Operating Voltage, cabling
OPBT2 10 to 30V dc Bi-Modal, prewired cable
OPBT2QD 10 to 30V dc Bi-Modal, integral minifast™ QD
OPBT2QDH 10 to 30V dc Bi-Modal, integral eurofast™ QD*
OPBA2 105 to 130V ac, prewired cable
OPBA2QD 105 to 130V ac, integral minifast™ QD
OPBB2 210 to 250V ac, prewired cable
OPBB2QD 210 to 250V ac, integral minifast™ QD
*Contact factory for availability of eurofast™ models.
