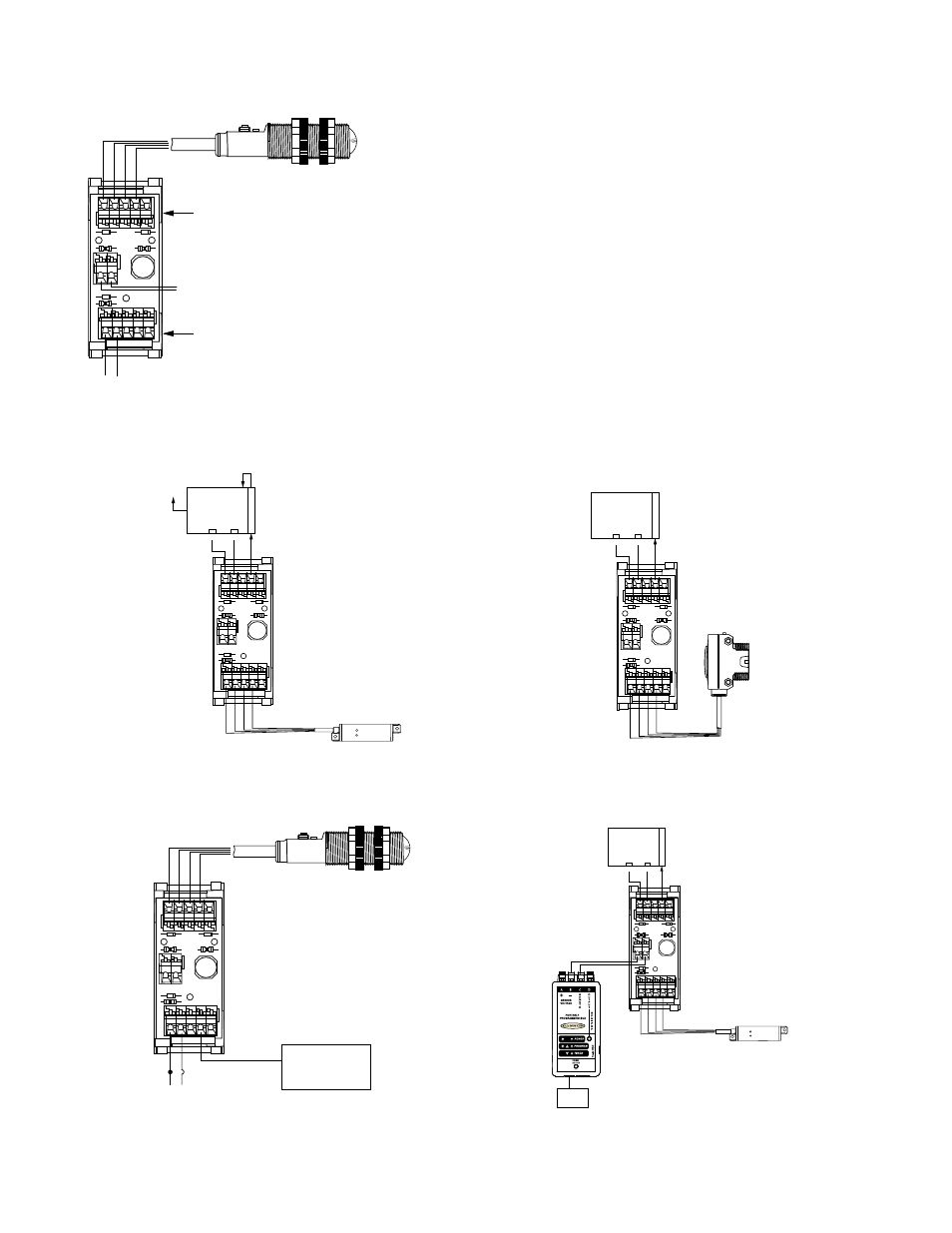

Typical Hookup
BU BN GY BK WH
WH BK GY BN BU
BU GY
Optional functions;
see reverse
– +
10-30V dc
M-GAGE shown
Sensor Connections
Optional functions
Additional Hookups
Typical Interface - M-GAGE in Pavement with PCL I/O
BU BN GY BK WH
WH BK GY BN BU
BU GY
M-GAGE in pavement
–
To
System
+
24V dc
PNP I/O
PLC or
other DC/IO
Typical Interface – With Banner Expert Sensor to provide Re-
mote Teach Button*
BU BN GY BK WH
WH BK GY BN BU
BU GY
– +
PNP I/O
TEACH
PNP NPN
POWER
Expert Sensor
User-supplied
PLC or controller
and power supply
*Teach mode may also be activated by
PLC by closing path between Gray
and Blue wires
Typical Interface - To Timer or Relay
BU BN GY BK WH
WH BK GY BN BU
BU GY
– +
10-30V dc
Coil
M-GAGE shown
External DC
Relay/Timer
Optional Function – Data Capture; Monitor Software Interface
with M-GAGE In-Situ
BU BN GY BK WH
WH BK GY BN BU
BU GY
M-GAGE
– +
PNP I/O
User’s
System
Laptop
Model SIM-525T Sensor Interface Module
