Model sim-525t sensor interface module, Overview, Specifications

Power Supply for use with 12-30V dc Sensors
• Simple DIN-rail mount
• Indicators for Power ON and Output Active
• Includes sensor TEACH push button
• Additional terminals provide in-situ data collection for some sensors
Overview
The SIM-525T is a passive DIN-rail-mountable module that allows additional status indicators to be located in the user’s control cabinet. It
also provides a Remote TEACH push button for interfacing to any Banner 5-wire Expert product.
It is designed to provide remote indication and Teach capability for Banner M-GAGE™ and T-GAGE® sensors, when their mounting
does not allow easy access to the sensor (as when mounted underground or sealed in pavement, for example).
The module also features two separate “tie points” to allow for a sensor signal capture when using the Banner DPB1 Programming Box
and sensor-specific monitor software. The tie points also can be used as a Teach input by the user’s PLC.
Specifications
Supply Voltage
12 to 30V dc
Output Rating
100 mA
Environmental Rating
IP 00
Agency Approvals
Due to the device's passive nature, no approvals are
planned

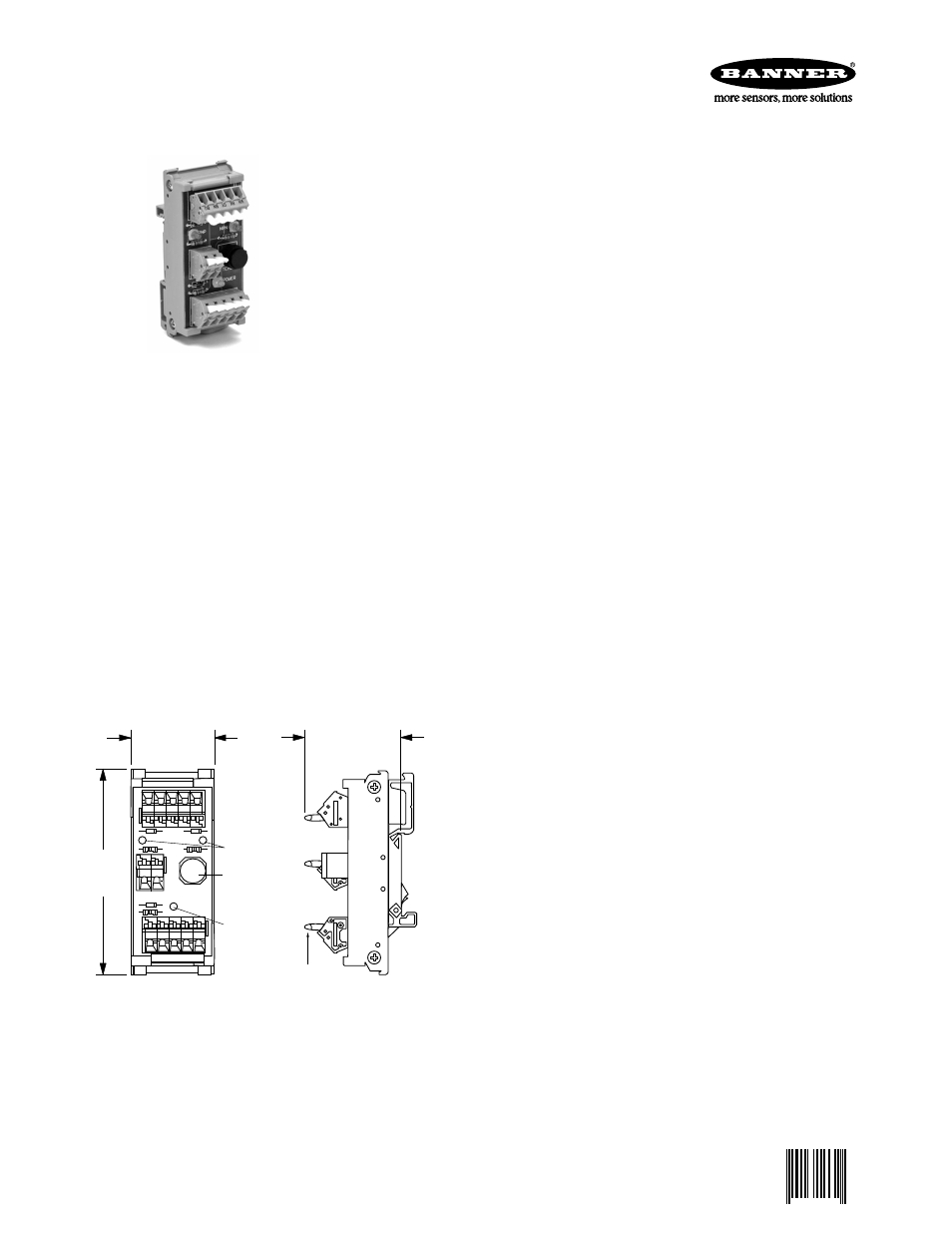

Dimensions
BU BN
GY
BK WH
WH
BK
GY
BN
BU
BU GY
36 mm
(1.4")
86 mm
(3.4")
Yellow
Output
LEDs
TEACH
Push
Button
Green
Power
LED
Push to reveal
wire chamber
43 mm
(1.7")
TEACH
PNP
NPN
POWER
Model SIM-525T Sensor Interface Module
P/N 123240 Rev. A
5/23/2012
