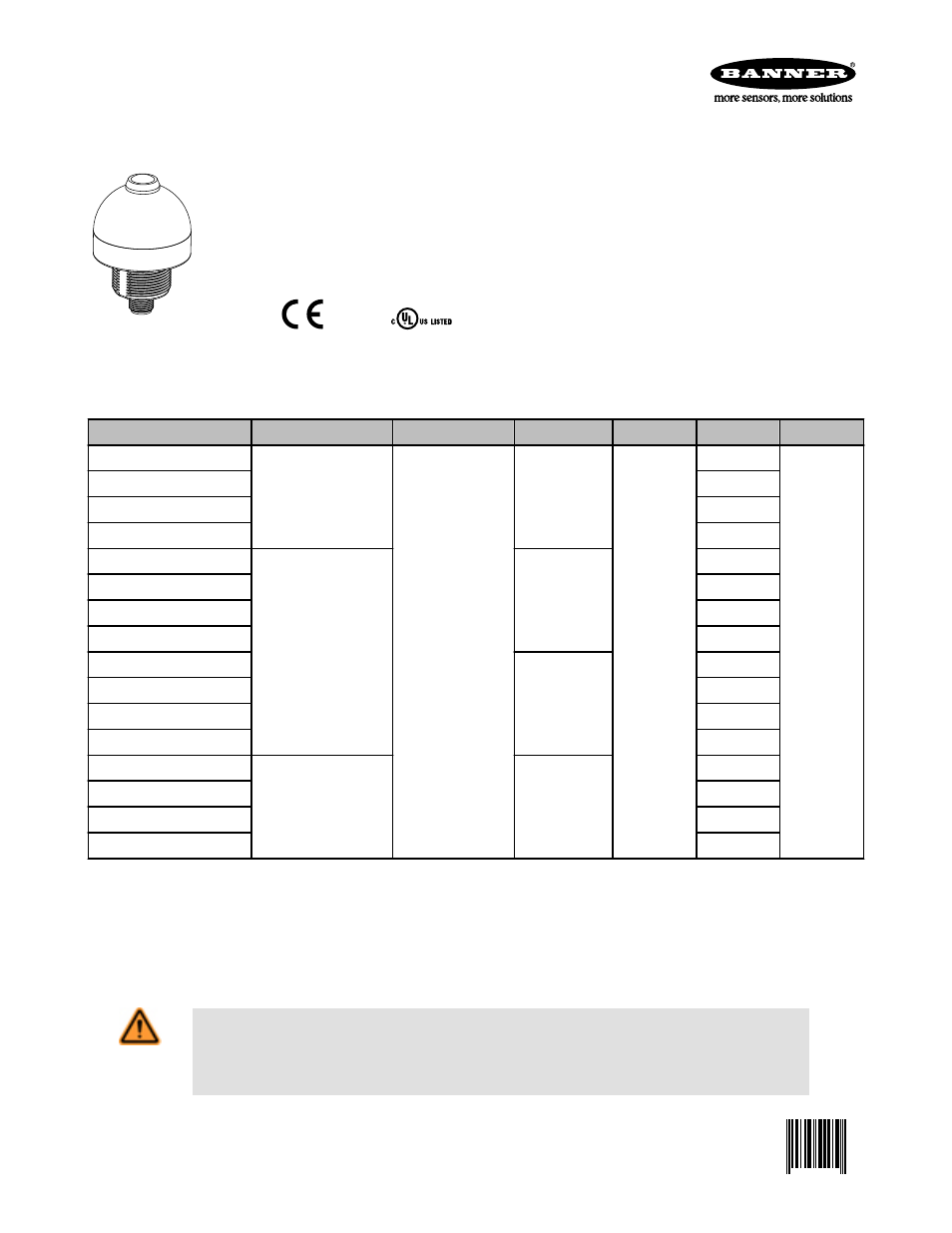

Banner K50 Pick-to-Light EZ-LIGHT User Manual
K50 series pick-to-light, Standard models - single color

Self-contained indicator for bin-picking operations
For the latest technical information about this product, including specifications, dimensions, and wiring, see
Standard Models - Single Color
• Job light is ON at all times while job input is active.
• Presence of hand (or pressing push button) activates output.
Model
Sensing Mode / LED*
Housing
Range
Cable*
Output***
Job Light
K50APLPGXDQ
Polarized retroreflective,
visible red, 680 nm
50 mm dome
30 mm mount
polycarbonate
2 m (6 ft)
Integral
4-pin
Euro QD
PNP, NO
Green
K50RPLPGXDQ
PNP, NC
K50ANLPGXDQ
NPN, NO
K50RNLPGXDQ
NPN, NC
K50APFF50GXDQ
Fixed field, infrared, 880 nm
50 mm cutoff
PNP, NO
K50RPFF50GXDQ
PNP, NC
K50ANFF50GXDQ
NPN, NO
K50RNFF50GXDQ
NPN, NC
K50APFF100GXDQ
100 mm cutoff
PNP, NO
K50RPFF100GXDQ
PNP, NC
K50ANFF100GXDQ
NPN, NO
K50RNFF100GXDQ
NPN, NC
K50APPBGXDQ
Push button
—
PNP, NO
K50RPPBGXDQ
PNP, NC
K50ANPBGXDQ
NPN, NO
K50RNPBGXDQ
NPN, NC
* Only 4-pin integral Euro-style QD models are listed. For 2 m (6 ft) PVC cable model, omit suffix "Q" from model number (e.g., K50APLPGXD).
For 9 m (30 ft) PVC cable model, replace suffix "Q" with "W/30" (e.g., K50APLPGXD W/30).
For 150 mm (5.9 in) PVC pigtail with 4-pin Euro-style fitting, replace suffix "Q" with "QP" (e.g., K50APLPGXDQP).
A model with a QD requires a mating cordset.
**NO = Normally Open; NC = Normally Closed
WARNING: Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to serious injury or death. This
product does NOT include the self-checking redundant circuitry necessary to allow its use in personnel safety applications. A sensor
failure or malfunction can cause either an energized or de-energized sensor output condition.
K50 Series Pick-to-Light
P/N 125680 Rev. C
8/13/2012
