R58 Expert ™ Registration Mark Sensors
SETUP Mode
SETUP mode is used to configure discrete sensor output response for:
• Light or Dark Operate
• 30-millisecond pulse stretcher (OFF-delay), if required
• 30-millisecond ON-delay, if required.
It is also used to disable one or more sensing beam colors, to force the sensor to use a
particular color. It will be necessary to access SETUP mode only if the settings which result
from TEACH mode configuration are not the settings required for the application or if a delay
is required. The status LEDs indicate the output response configuration when the sensor is in
RUN mode, as shown in Figure 4.
Change the output response settings or disable sensing beam color(s) as shown in the table
on page 7.
NOTE: If SETUP mode programming is interrupted and remains inactive for 60 seconds,
the sensor returns to RUN mode with the most recent settings (i.e., exits and saves
current selection).

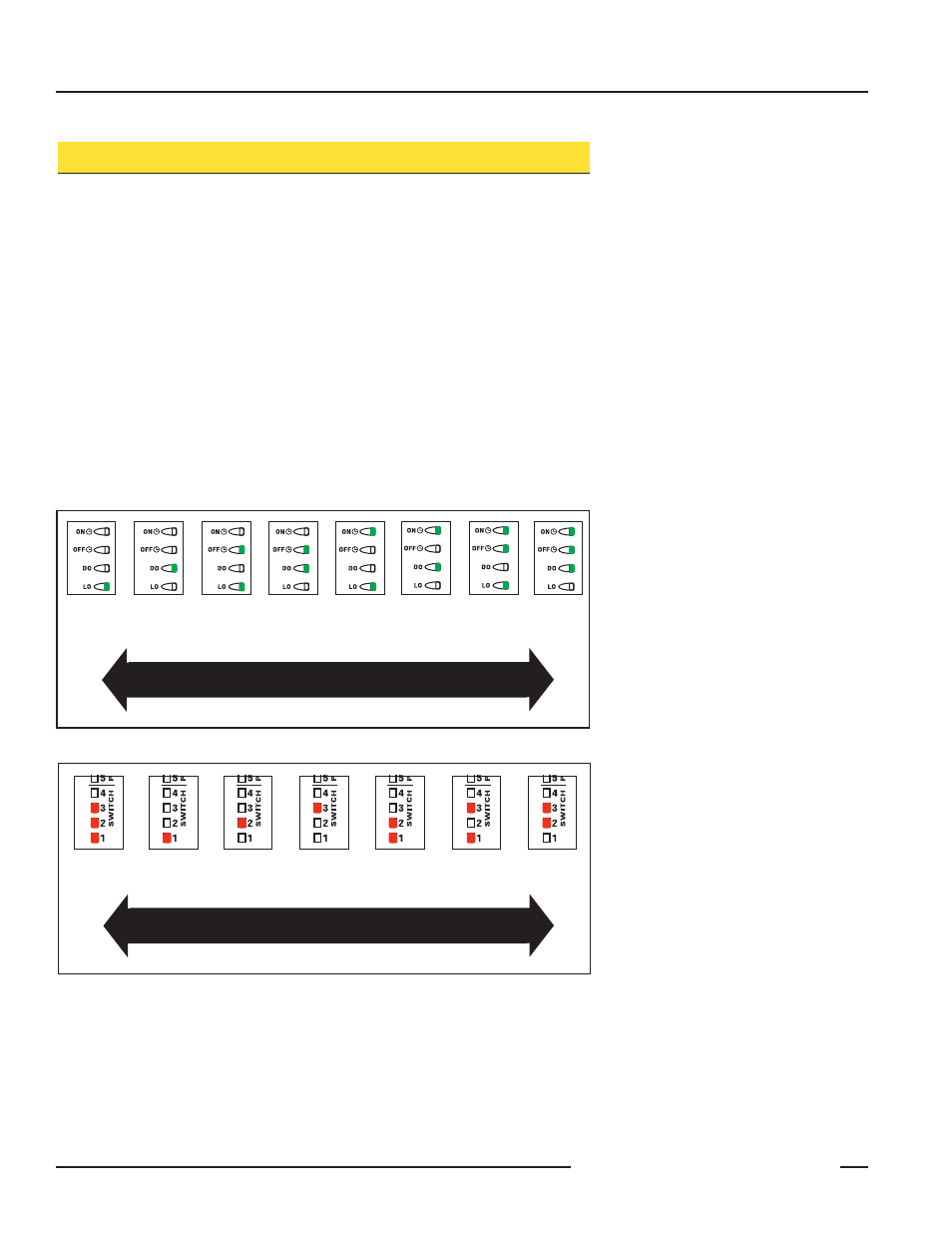

Figure 4. Output response configuration options
LO
No delay
DO
No delay
LO
OFF-delay
DO
OFF-delay
LO
ON-delay
DO
ON-delay
LO
OFF-delay
ON-delay
DO
OFF-delay
ON-delay
Increment or decrement through the 8 possible setting combinations
Double-Pulse or
Static Push Button Single-Pulse or
Dynamic Push Button
Figure 5. LED color configuration options
All Colors Red Green Blue
Red and
Green
Red and
Blue
Green and
Blue
Increment or decrement through the 7 possible setting combinations
Double-Pulse or
Static Push Button Single-Pulse or
Dynamic Push Button
