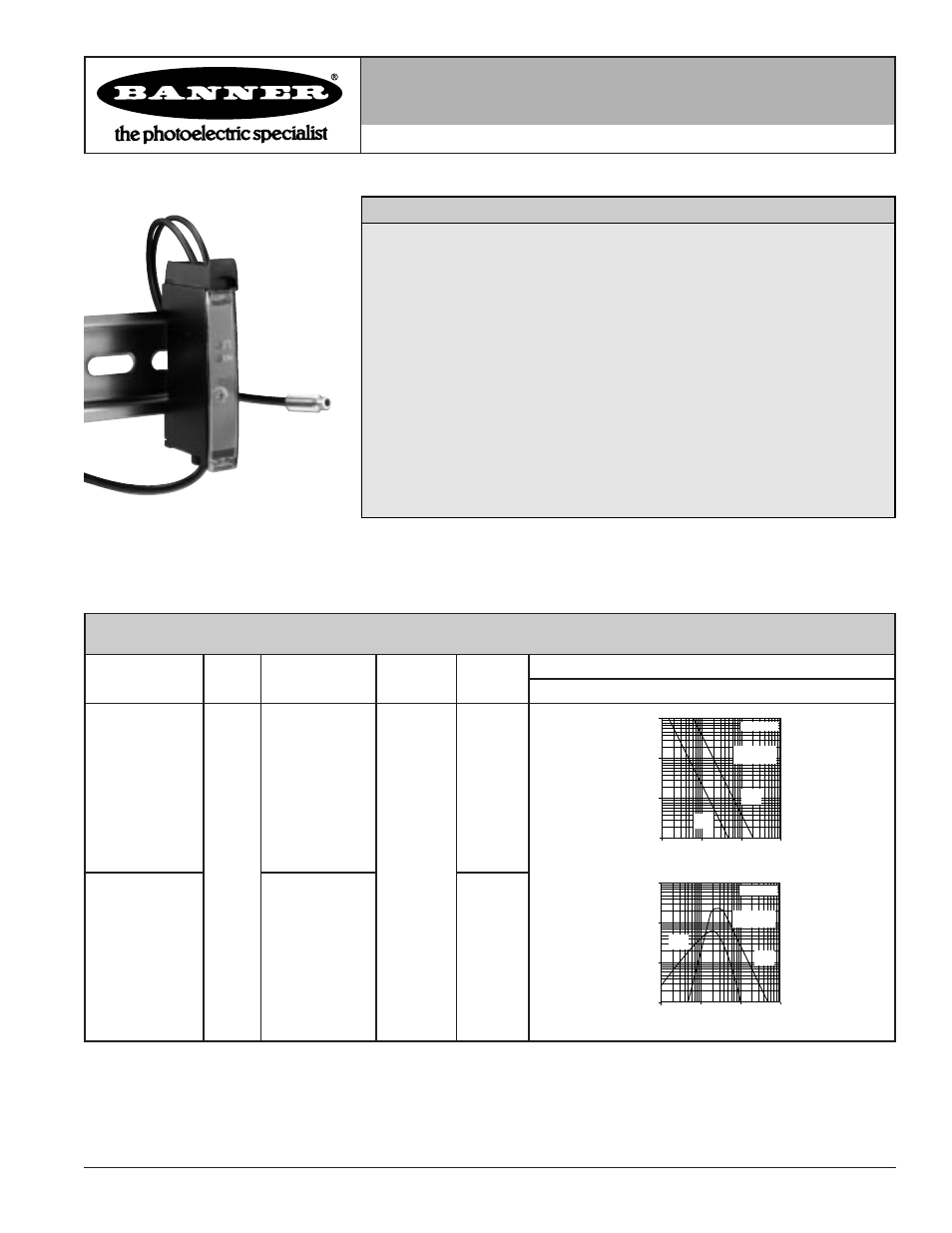

D11 series – 5v dc models, Features

D11 Series – 5V dc Models
Low cost self-contained sensors for use with plastic fiber optics
Printed in USA
P/N 46485
• Low cost, 5V dc self-contained sensors for use with all Banner plastic
fiber optics
• Compact 11 mm-wide housing designed for DIN rail mounting; can also
be mounted to any surface using the supplied mounting bracket
• Choice of NPN (sinking) or PNP (sourcing) complementary outputs -
one normally open and one normally closed; 150 mA output load rating
• Fast, 500 microsecond (0.5 millisecond) output response
• LED status indications for Power On, Output Overload, Fiber Alignment,
and Marginal Gain Conditions
• Choose models with integral 2 m (6.5 ft) cable or pico-style quick
disconnect (QD) connector; 9 m (30 ft) cables are also available
Features
D11 Series – 5V dc Models
Models
Range
Cable
Supply
Voltage
Output
Type
Range Specifications
D11SN72FP
D11SN72FPQ
Range
varies
by
sensing
mode
and fiber
optics
used
2 m (6.5 ft)
4-pin Pico QD
4.5-5.5V dc
Comple-
mentary
NPN
(sinking)
D11SP72FP
D11SP72FPQ
2 m (6.5 ft)
4-pin Pico QD
Comple-
mentary
PNP
(sourcing)
Notes:
1)
9 m (30 ft) cables are available by adding suffix "W/30" to the model number of any cabled sensor (e.g. D11SN72FP W/30).
2)
A model with a QD connector requires an optional mating cable (see page 3).
1
10
100
10 mm
0.4 in
100 mm
4.0 in
1000 mm
40 in
1.0 mm
0.04 in
1000
E
X
C
E
S
S
G
A
I
N
DISTANCE
D11 Series
Opposed Mode
Plastic Fibers
PIT46U
Fibers
PIT26U
Fibers
Diffuse mode performance based on 90% reflectance white test card
1
10
100
1.0 mm
0.04 in
10 mm
0.4 in
100 mm
4 in
0.1 mm
0.004 in
1000
E
X
C
E
S
S
G
A
I
N
DISTANCE
D11 Series
Diffuse Mode
Plastic Fibers
PBT46U
Fiber
PBT26U
Fiber
