U-GAGE ® M25U Series Sensor
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering
Corp. will repair or replace, free of charge, any product of its manufacture found to be defective at the time it is returned
to the factory during the warranty period. This warranty does not cover damage or liability for the improper application of
Banner products. This warranty is in lieu of any other warranty either expressed or implied.
P/N 137794 rev. D

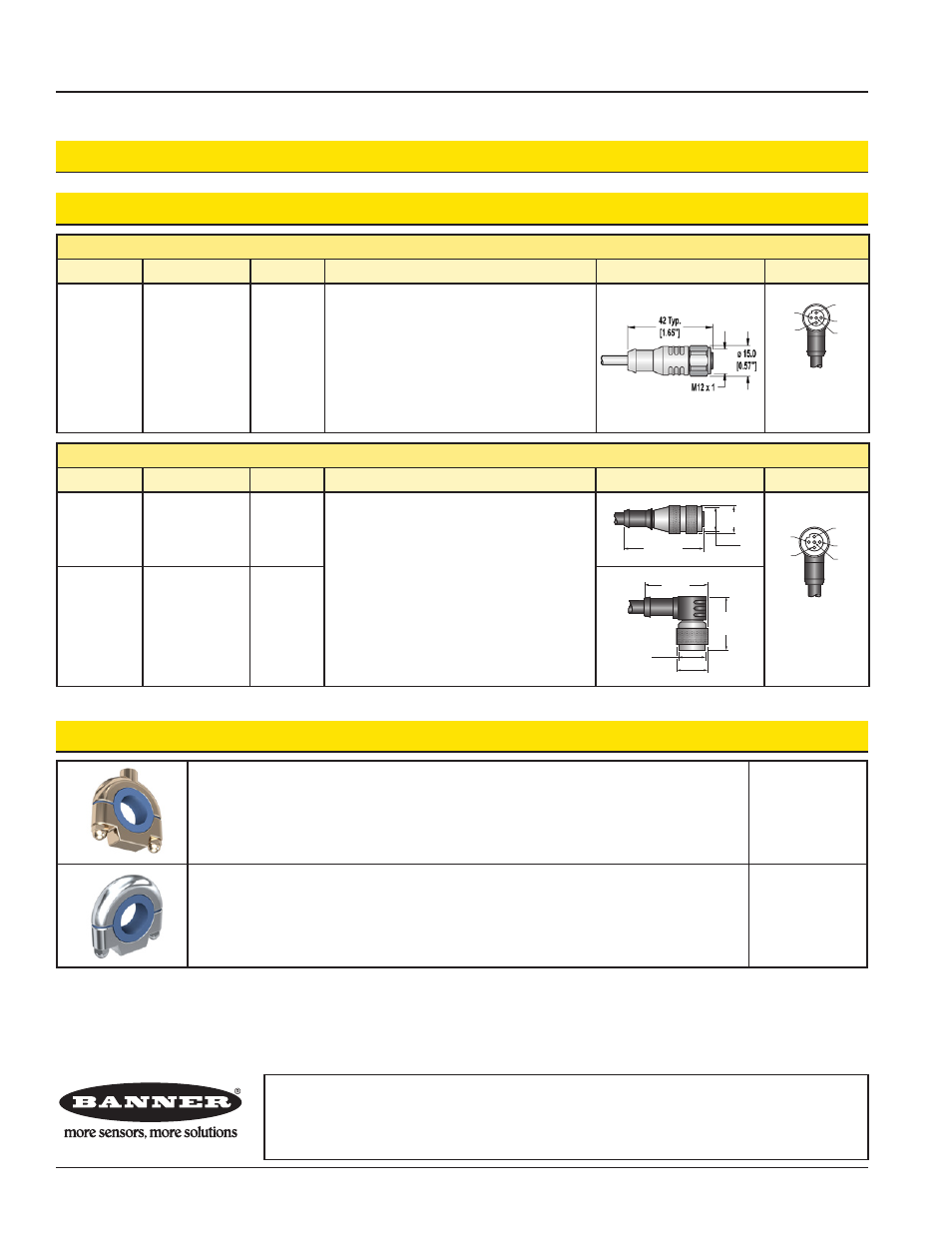

Quick-Disconnect Cables
Mounting Brackets
• Top mount
• Swivel bracket with 25 mm mounting hole for sensor
• Stainless steel with rounded edges for cleanliness in demanding environments
• Non-metallic FDA compliant bushing for acoustically isolating M25U sensors
• M10 x 1.5 mount on opposite side of clamping nuts
SMBM25A
• Bottom mount
• Swivel bracket with 25 mm mounting hole for sensor
• Stainless steel with rounded edges for cleanliness in demanding environments
• Non-metallic FDA compliant bushing for acoustically isolating M25U sensors
• M10 x 1.5 mount on same side as clamping nuts
SMBM25B
Standard Models
Style Model Length Description Dimensions Pinout
5-Pin
Euro-style
Straight
with shield
MQDEC2-506
MQDEC2-515
MQDEC2-530 2 m (6.5')
5 m (15')
9 m (30')
Cable: PVC jacket, PUR (polyurethane)
connector body, nickel-plated brass
coupling nut
Conductors: 22 or 20 AWG high-flex stranded,
gold plated contacts
Voltage Rating: 250V ac/300V dc
Temperature: -40° to +90° C
Environmental Rating: IP67
5-Pin
Euro-style
Right-Angle
with shield
MQDEC2-506RA
MQDEC2-515RA
MQDEC2-530RA 2 m (6.5')
5 m (15')
9 m (30')
Female
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
5-Pin Euro
2
3
5
4
1 M12 x 1
ø 15 mm
44 mm
max.
Euro Straight
38 mm
max.
M12 x 1
ø 15 mm
Euro RA
38 mm
max.
Washdown Models
Style Model Length Description Dimensions Pinout
5-Pin
Euro-style
Straight
with shield
MQDCWD-506
MQDCWD-530 2 m (6.5')
9 m (30')
Cable: polypropylene jacket and connector body,
stainless steel coupling nut
Conductors: 22 AWG gold-plated brass contacts
Voltage Rating: 250V ac
Temperature: -40° to +105° C
Environmental Rating: IP68
Female
1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray
5-Pin Euro
2
3
5 4
1
Accessories
