VS2 Series – Opposed Mode
page 3
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

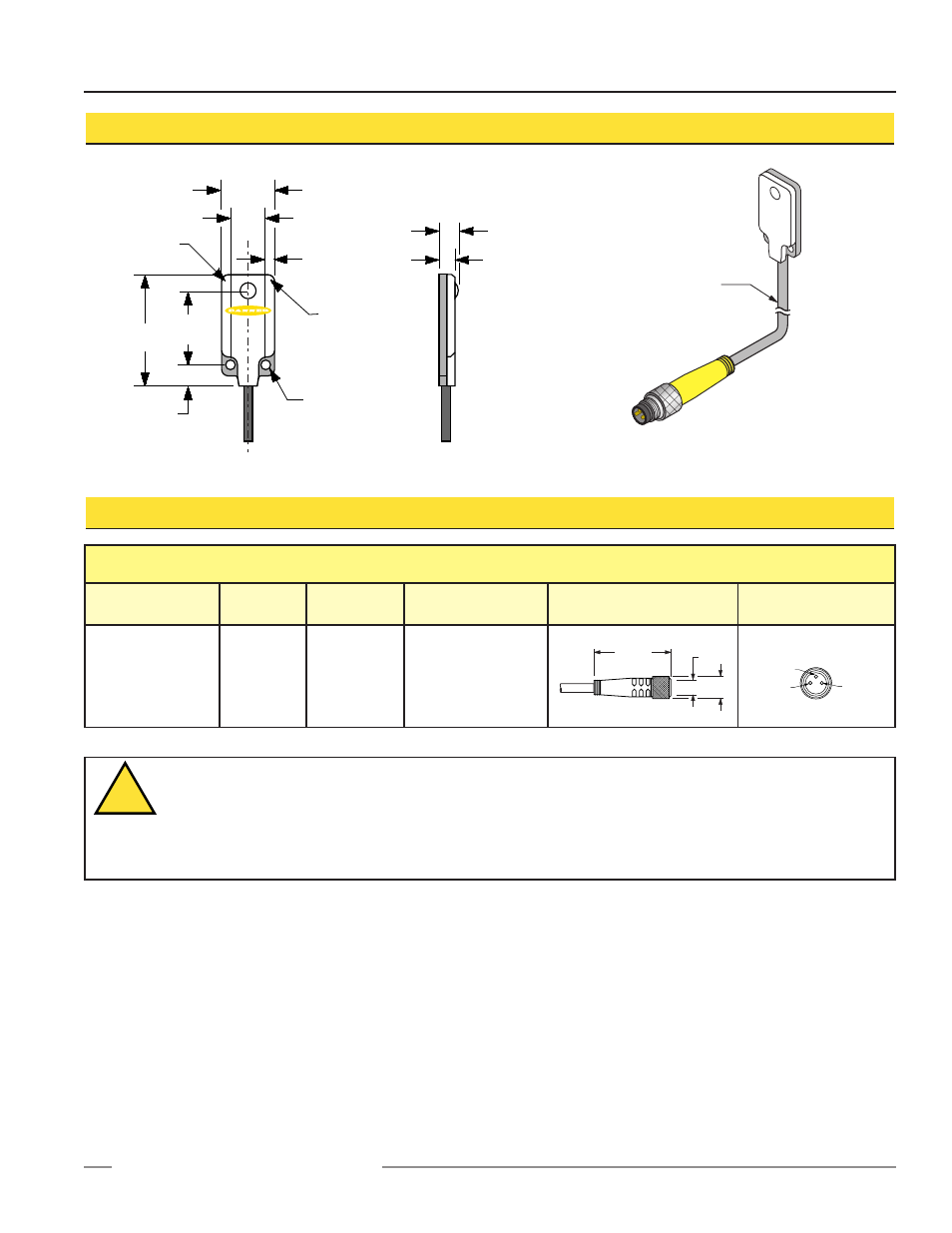

VS2 Series Opposed-Mode Sensor Dimensions
CL
VS2
2x ø2.2 mm
(0.09")
3.6 mm
(0.14")
4.3 mm
(0.17")
2.0 mm
(0.08")
8.0 mm
(0.31")
Green Power
Indicator
Yellow
Signal Indicator
(Receiver only)
12.0 mm
(0.47")
4.8 mm
(0.19")
25.1 mm
(0.99")
16.7 mm
(0.66")
WARNING . . .
Not To Be Used for Personnel Protection
Never use this product as a sensing device for personnel protection. Doing so could lead to serious injury or death.
This product does NOT include the self-checking redundant circuitry necessary to allow its use in personnel safety applications. A sensor
failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner Safety Products
catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
!
150 mm (6") Pigtail
Accessories
Quick-Disconnect (QD) Cables
Style Models Length For Use With Dimensions Pinout
3-pin Pico Style
Straight
PKG3M-2
PKG3M-9
2 m (6.5')
9 m (30')
All VS2 Series sensors
with model suffix “Q”.
34.7 mm
(1.37")
9.6 mm
(0.38")
M8 x 1
Black Wire
Blue Wire Brown Wire
