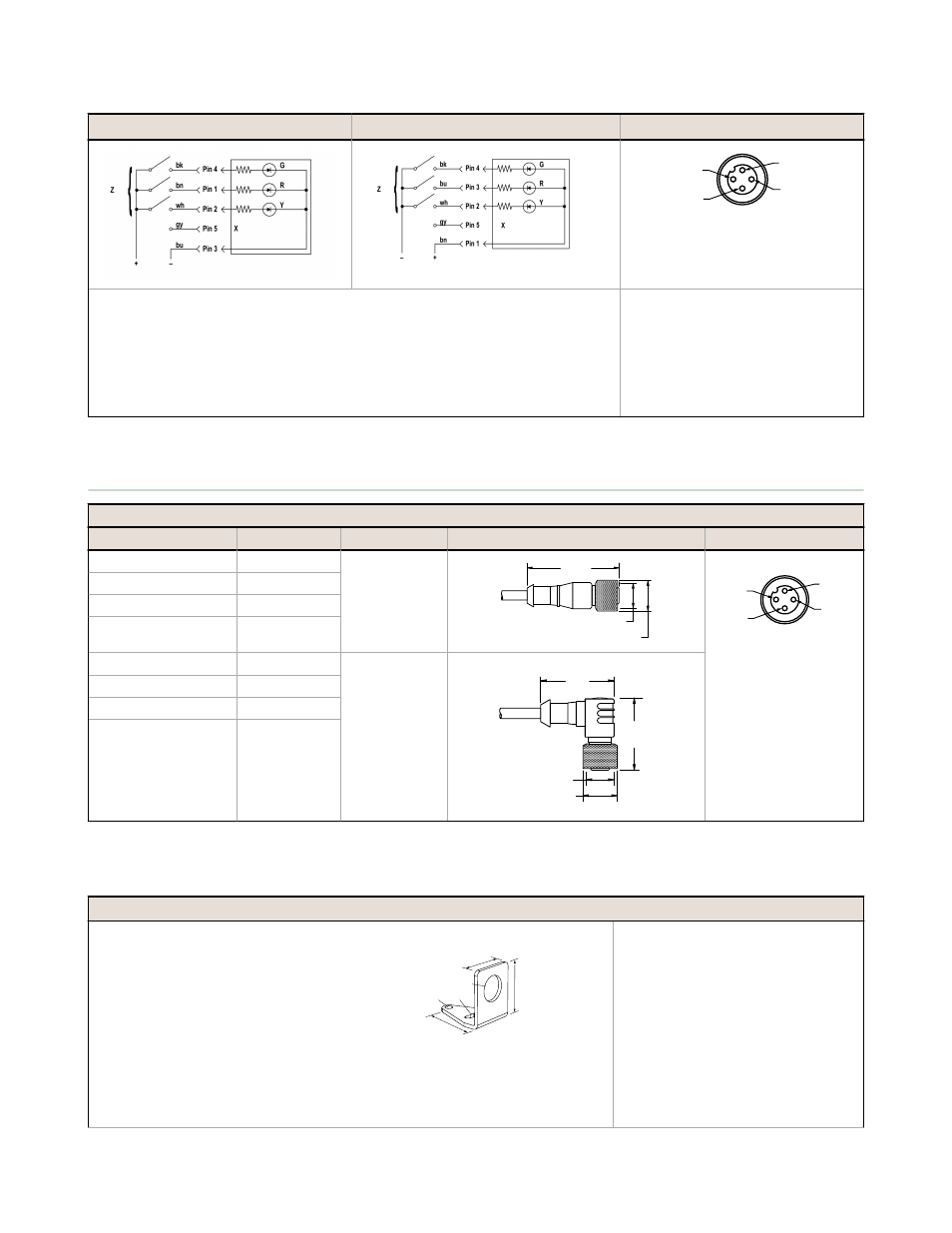

Table 2: Only QD wiring is shown; cabled wiring is functionally identical.

PNP Models

NPN Models

Pinout

2

3

4

1

G = Green

R = Red

Y = Yellow

X = Not Used

1 = Brown

2 = White

3 = Blue

4 = Black

5 = Gray

Z = Input Connections (see table

above

Accessories

4-Pin Threaded M12/Euro-Style Cordsets

Model

Length

Style

Dimensions

Pinout

MQDC-406

1.83 m (6 ft)

Straight

44 Typ.

ø 14.5

M12 x 1

2

3

4

1

1 = Brown
2 = White
3 = Blue
4 = Black

MQDC-415

4.57 m (15 ft)

MQDC-430

9.14 m (30 ft)

MQDC-450

15.2 m (50 ft)

MQDC-406RA

1.83 m (6 ft)

Right-Angle

32 Typ.

[1.26"]

30 Typ.

[1.18"]

ø 14.5 [0.57"]

M12 x 1

MQDC-415RA

4.57 m (15 ft)

MQDC-430RA

9.14 m (30 ft)

MQDC-450RA

15.2 m (50 ft)

To order bulk cable for terminal-wired K80L models, contact the factory. If cables other than those listed are used, use a

5-pin mating cable.

Brackets

SMB18A

Right-angle mounting bracket

with a curved slot for versatile

orientation

12-ga. stainless steel

18 mm sensor mounting hole

Clearance for M4 (#8) hardware

30

41

46

A

B

C

Hole center spacing: A to B = 24.2

Hole size: A = ø 4.6, B = 17.0 × 4.6, C = ø 18.5

For use with M18 and T18 models or

base-mount T30 models. Other available

18 mm dia. brackets:

SMB1815SF
SMB18Q
SMB18SF
SMB312PD
SMBAMS18RA
SMBAMS18P

EZ-LIGHT Indicators for 3-Color, 7-Function
