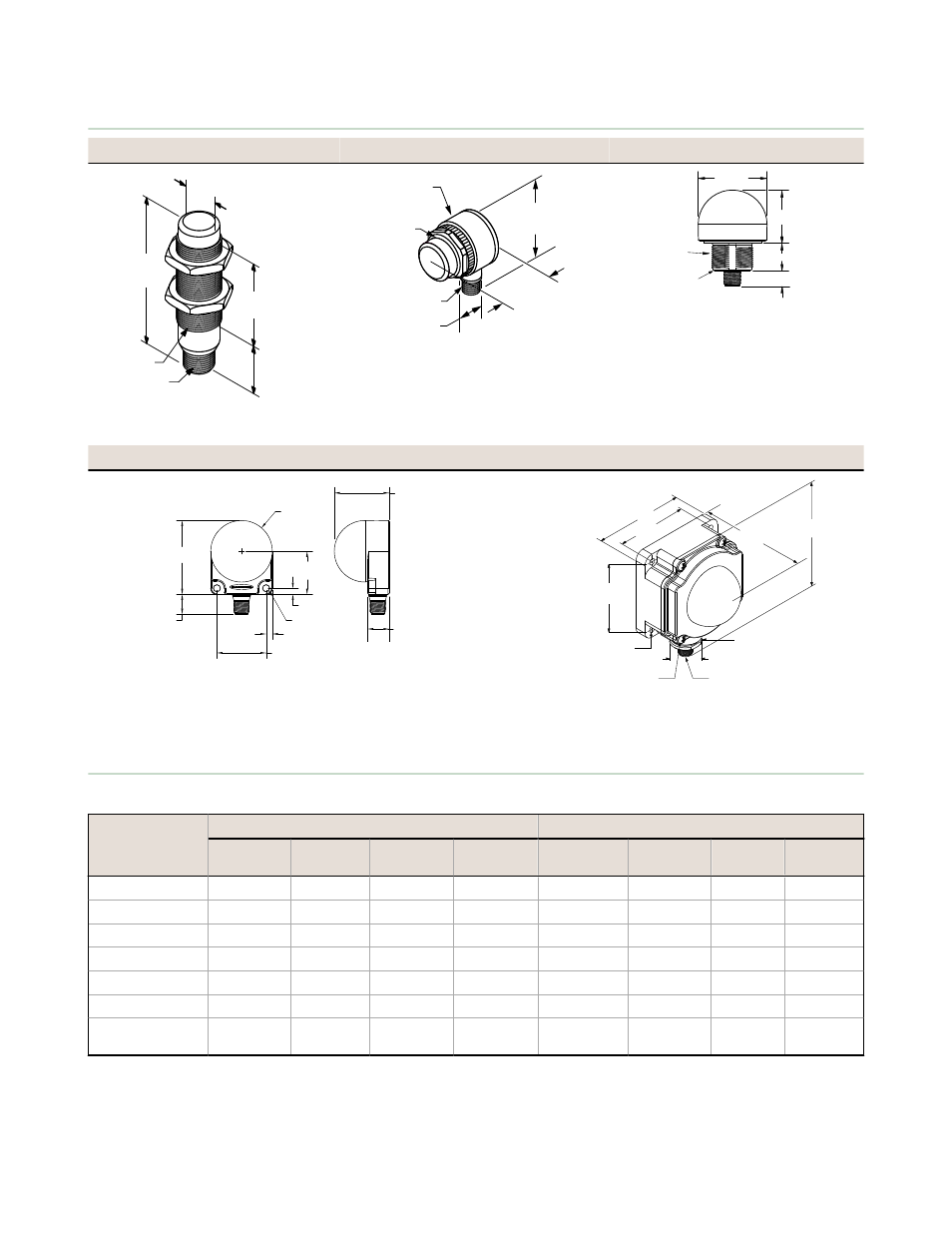

Dimensions

M18 Models

T30 Models

K50L Models

30 mm

(1.2")

23 mm

(0.9")

Ø16.5 mm
(0.65")

61 mm

(2.4")

M12 X 1

M18 X 1

M30 x 1.5

Thread

Ø 40.0 mm

(1.57")

45.0 mm

(1.77")

63.7 mm

(2.51")

Ø 15 mm

(0.59")

M12 X 1

50.0 mm

(1.97")

38 mm (1.50")*

20 mm (0.79")

11 mm (0.43")

M30 x 1.5

(mounting nut

included)

Internal Threads

½ - 14 NPSM

Max. Torque 4.5 Nm

(40 in-lbf)

Max. Torque 2.25 Nm

(20 in-lbf)

K50FL Models

K80L Models

60.0

[2.36"]

35.0

[1.38"]

16.0 [0.63"]

40.0 [1.58"]

2x 5.0 [0.20"]

2x 5.0 [0.20"]

2x 5.5 [0.21"]

Ø50 [1.97"]

17.0 [0.67"]

44.6 [1.76"]

109.5 mm

(4.31")

80.8 mm

(3.18")

66.3 mm

(2.61")

26.0 mm
(1.02")

M12 X 1

65.0 mm

(2.56")

65.0 mm

(2.56")

4X 8–32 UNC

Max. Torque 1.12 Nm (10 in–lbf)

4X Ø 5.5 mm (Ø 0.22")

Max. Torque 1.12 Nm (10 in–lbf)

with supplied screws

Internal Threads ½ - 14 NPSM
Max. Torque 2.25 Nm (20 in–lbf)

Wiring

Table 1: Select from 7 operating schemes, depending on wiring

LED Function

PNP Models

NPN Models

Brown

Wire

White

Wire

Black Wire

Blue Wire

Blue Wire

White Wire

Black

Wire

Brown

Wire

Red ON

+V dc

0 V dc

0 V dc

+V dc

Red Flashing

+V dc

+V dc

0 V dc

0 V dc

0 V dc

+V dc

Yellow ON

+V dc

0 V dc

0 V dc

+V dc

Yellow Flashing

+V dc

+V dc

0 V dc

0 V dc

0 V dc

+V dc

Green ON

+V dc

0 V dc

0 V dc

+V dc

Green Flashing

+V dc

+V dc

0 V dc

0 V dc

0 V dc

+V dc

Rotating

Red-Green-Yellow

+V dc

+V dc

+V dc

0 V dc

0 V dc

0 V dc

0 V dc

+V dc

EZ-LIGHT Indicators for 3-Color, 7-Function
