QL55 Series Luminescence Sensor
WARRANTY: Banner Engineering Corp. warrants its products to be free from defects for one year. Banner Engineering Corp. will repair
or replace, free of charge, any product of its manufacture found to be defective at the time it is returned to the factory during the warranty
period. This warranty does not cover damage or liability for the improper application of Banner products. This warranty is in lieu of any
other warranty either expressed or implied.
P/N 112153 rev. C

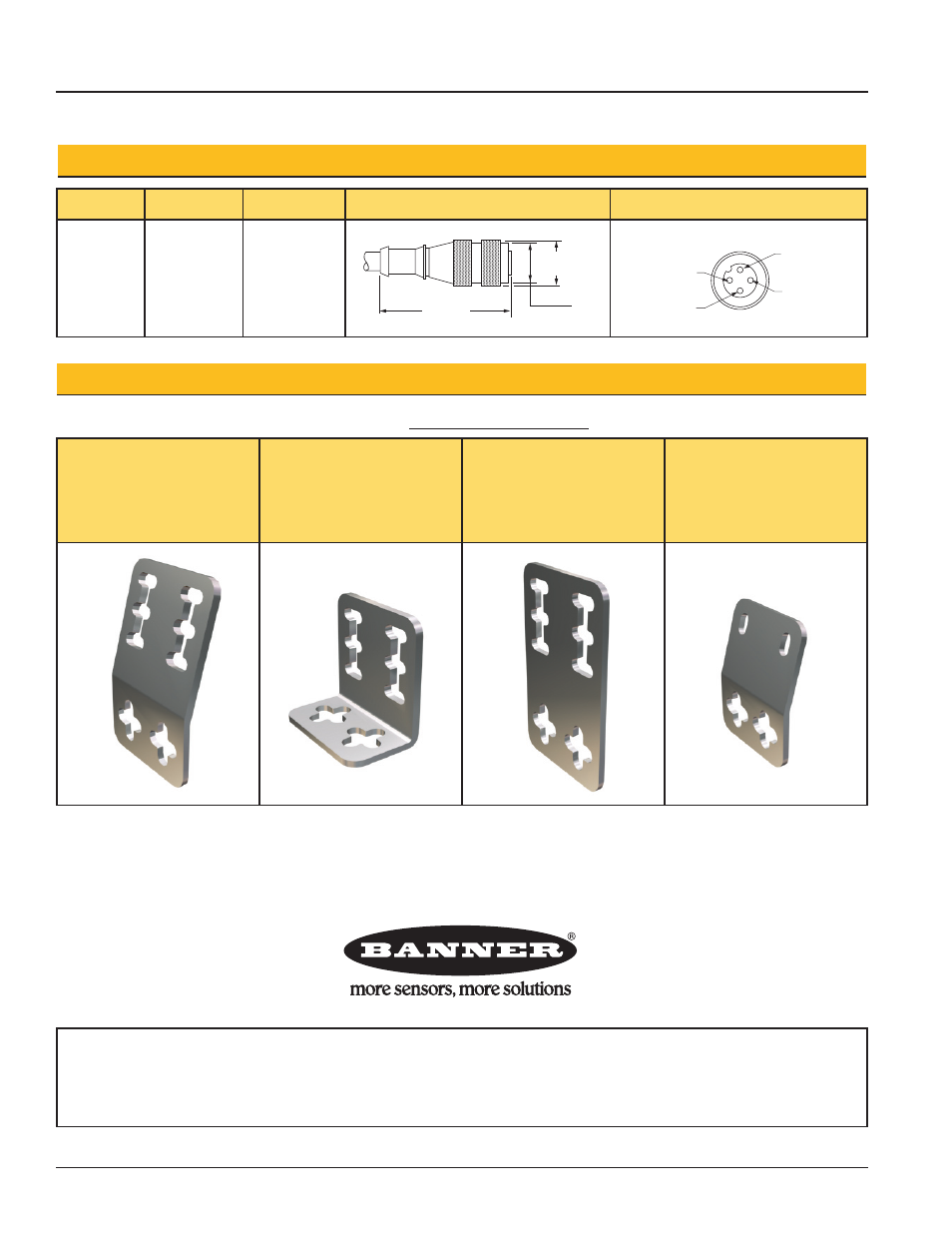

Style Model Length Dimensions Pinout
4-Pin
Straight
Euro-style
MQDC-406
MQDC-415
MQDC-430
2 m (6.5')
5 m (15')
9 m (30')
White Wire
Blue Wire
Black Wire
Brown Wire
M12 x 1
ø 15 mm
(0.6")
44 mm max.
(1.7")
Quick-Disconnect Cables
SMB55A
• 15° offset bracket
• 12-gauge stainless steel
SMB55RA
• Right-angle bracket
• 12-gauge stainless steel
SMB55F
• Flat-mount bracket
• 12-gauge stainless steel
SMB55S
• 15° offset bracket
• 12-gauge stainless steel
Accessory Mounting Brackets
See the current Banner Photoelectric Catalog or website, www.bannerengineering.com, for bracket dimensions.
