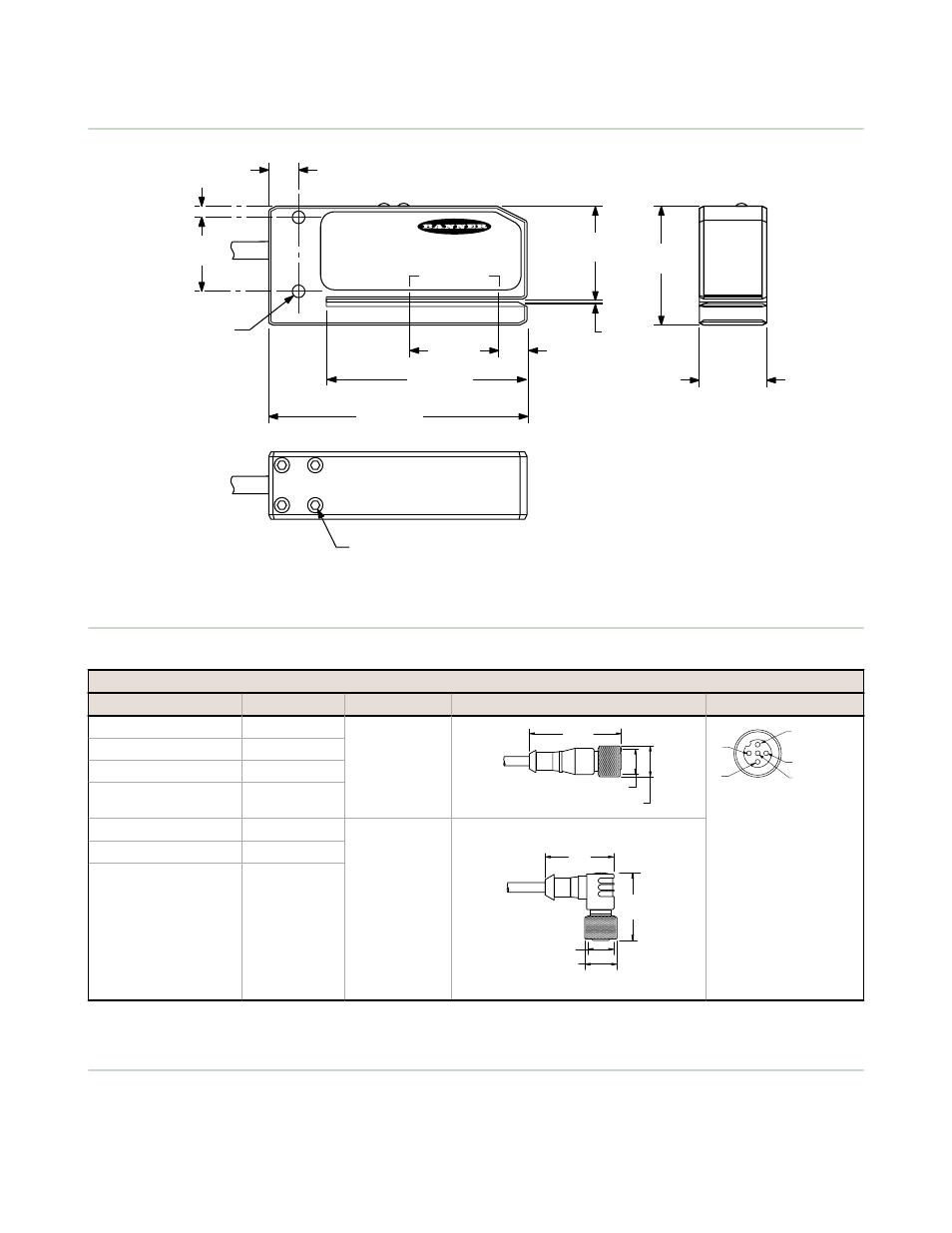

Dimensions

Remove 4 screws for cleaning.

Use 7/64" hex key

Clearance for

M4 (#8) screws

(2 holes)

10.2 mm

(0.40")

25.4 mm

(1.00")

3.8 mm

(0.15")

32.8 mm

(1.30")

1 mm

(0.04")

8.9 mm

(0.35")

23.1 mm

(0.91")

40.8 mm

(1.61")

88.9 mm

(3.49")

30.5 mm

(1.20")

68.8 mm

(2.71")

SLC1BB6

Label Sensor

SENSING AREA

Green: power on
Green flashing: output overload
Yellow: outputs conducting

bn: +10 to 30 V dc

bu: common

wh: NPN output

bk: PNP output

gy: output invert / reset

Accessories

All measurements are listed in millimeters (inches).

5-Pin Threaded M12/Euro-Style Cordsets (Single Ended)

Model

Length

Style

Dimensions

Pinout (Female)

MQDC1-501.5

0.50 m (1.5 ft)

Straight

44 Typ.

ø 14.5

M12 x 1

1 = Brown
2 = White
3 = Blue
4 = Black
5 = Gray

MQDC1-506

1.83 m (6 ft)

MQDC1-515

4.57 m (15 ft)

MQDC1-530

9.14 m (30 ft)

MQDC1-506RA

1.83 m (6 ft)

Right-Angle

32 Typ.

[1.26"]

30 Typ.

[1.18"]

ø 14.5 [0.57"]

M12 x 1

MQDC1-515RA

4.57 m (15 ft)

MQDC1-530RA

9.14 m (30 ft)

Banner Engineering Corp Limited Warranty

Banner Engineering Corp. warrants its products to be free from defects in material and workmanship for one year following

the date of shipment. Banner Engineering Corp. will repair or replace, free of charge, any product of its manufacture

which, at the time it is returned to the factory, is found to have been defective during the warranty period. This warranty

does not cover damage or liability for misuse, abuse, or the improper application or installation of the Banner product.

C-GAGE SLC1 Series Label Sensor

P/N 59369 Rev. B
