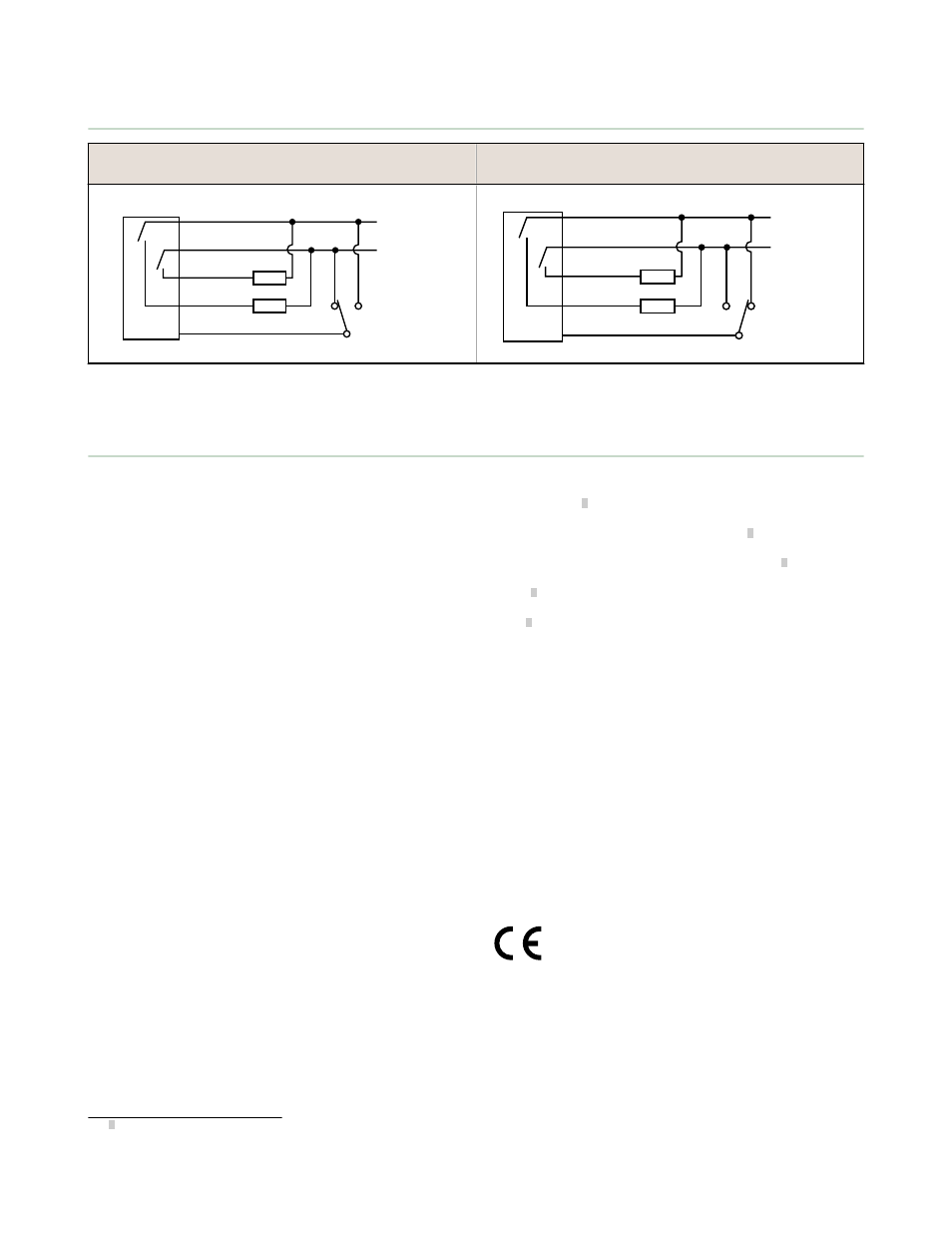

Wiring Diagrams
Outputs ON during gap (Turn OFF at leading edge of
label)
Outputs ON during label (Turn ON at leading edge of
label)
bn
wh
bu
+
–
bk
gy*
Load
Load
10-30 V dc
bn
wh
bu
+
–
bk
gy*
Load
Load
10-30 V dc
*Toggle to opposite polarity for > 100 milliseconds to reset microprocessor.
Specifications
Supply Voltage and Current
10 to 30 V dc (10% max. ripple) @ less than 60 mA (exclusive of load )
Supply Protection Circuitry
Protected against reverse polarity and transient voltages
Power-Up or Reset Delay
1 second typical (outputs are non-conducting during this time)
Output Configuration
Bipolar: one current-sourcing (PNP) and one current-sinking (NPN)
open-collector transistor
Output Rating
150 mA max. (each output)
OFF-state leakage current: < 5 microamps at 30 V dc
Output saturation voltage: < 1 V at 10 milliamps dc; < 1.6 V at 150
milliamps dc
Output Protection
Protected against continuous overload and short-circuit of outputs
Overload trip point: > 200 milliamps, typical, at 20 °C
Output Invert Control/Reset
Gray wire has dual functionality, and may be controlled by a PLC
Input impedance: 10 KΩ
Outputs ON during gap (turn OFF at leading edge of label): leave open,
or connect to 0 to +1 V dc
Outputs ON during label (turn ON at leading edge of label): connect to
+5 to 30 V dc
Microprocessor reset: toggle gray wire to opposite polarity for > 100
milliseconds
Environmental Rating
IP67, NEMA 6
Operating Conditions
Temperature: 5 °C to 50 °C (41 °F to 122 °F)
Maximum relative humidity: 90% at 50 °C, non-condensing
Registration Accuracy
±0.3 mm (0.012 inch) typical, at web speeds up to 1.5 m per second
(5 ft per second) 2
Maximum Counting Speed
Web speed of 10 m per second (33 ft per second) 2
Minimum Sensing Speed
Web speed of 100 mm per minute (4 inches per minute) 2
Response Time
100 μs 2
Maximum Switching Speed
1 kHz 2
Minimum Gap or Label Size
2 mm (0.08 inch)
Adjustments
No user adjustments; automatic continuous adjustment of sensing
threshold and drift compensation under internal microprocessor control
Adjustment interval: every 250 milliseconds or 4 labels, whichever is
greater
Indicators
Two LEDs, green and amber
Green ON: power to sensor is ON
Green flashing at 4 Hz: output is overloaded
Amber ON: NPN and PNP outputs are ON
Green and amber flashing alternately at 1 Hz: internal error; reset
sensor
Construction
Housings are machined aluminum with black anodized finish
Connections
2 m (6.5 ft) or 9 m (30 inches) 5-wire attached cable, or 5-pin Euro-
style quick-disconnect fitting
Cables for QD models are purchased separately
Certifications
Approval expected: UL
2 Based on 3.2 mm (0.125 inch) gap between labels. Instantaneous web speed, not average web speed, must be used to determine actual operating speeds
in stepped-advance label systems.
