Printed in USA

01/12

P/N 116166 rev. B

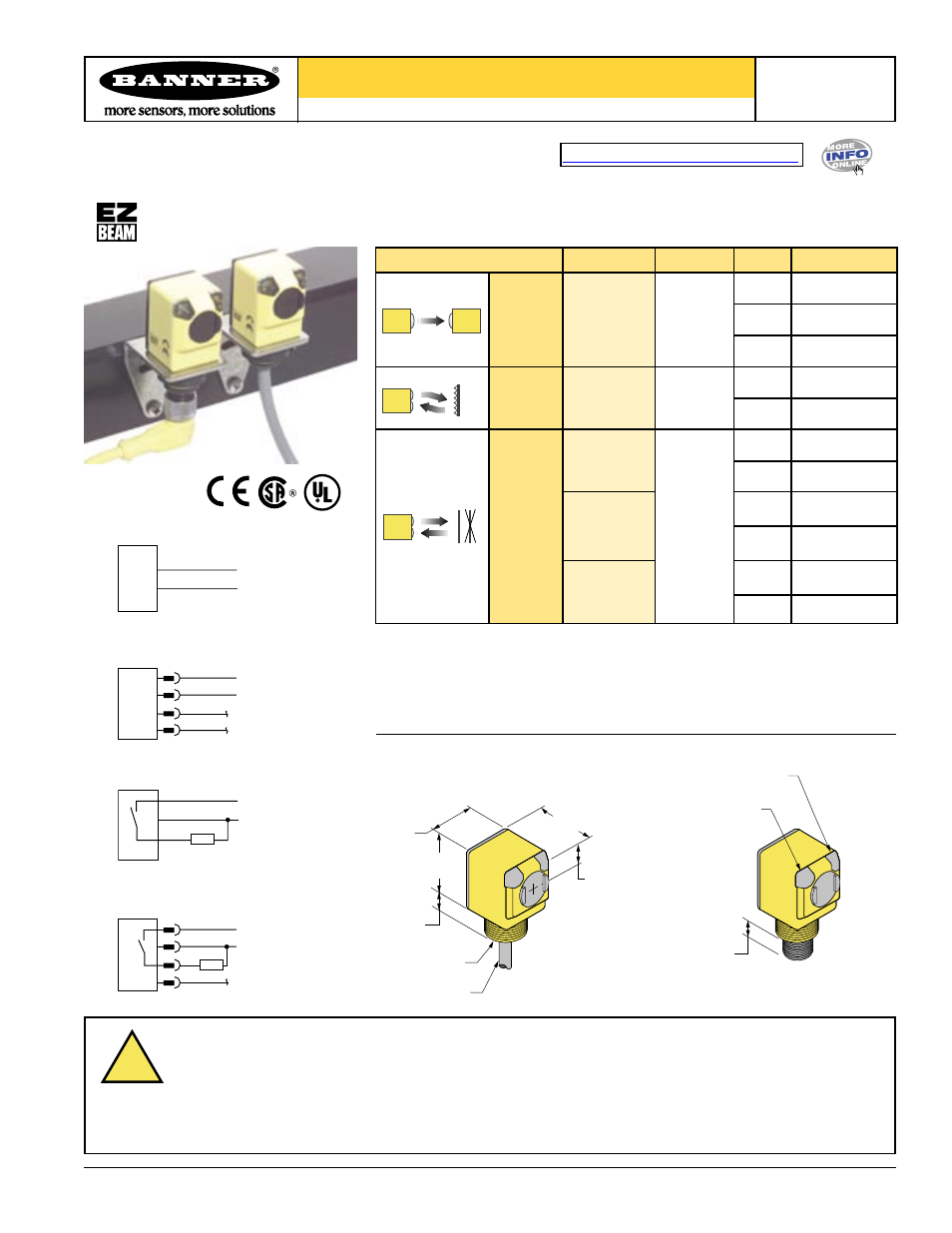

Installation

Guide

Q25 Sensors – ac-Voltage Series

Self-contained, ac-operated sensors

* Standard 2 m (6.5') cable models are listed.

9 m (30') cable: add suffix “W/30” (e.g., Q253E W/30).
4-pin Micro-style QD models: add suffix “Q1” (e.g., Q253EQ1). A model with a QD connector

requires a mating cable.

WARNING . . .

Not To Be Used for Personnel Protection

Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.

These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety

applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition.

Consult your current Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for

personnel protection.

!

Sensing Mode

Range

LED

Output

Model*

Opposed

20 m (66')

Infrared

950 nm

Q253E

LO

Q25AW3R

DO

Q25RW3R

Polarized

Retro-

reflective

2 m (79")

Visible

Red

680 nm

LO

Q25AW3LP

DO

Q25RW3LP

Fixed

Field

25 mm (1")

cutoff

Infrared

880 nm

LO

Q25AW3FF25

DO

Q25RW3FF25

50 mm (2")

cutoff

LO

Q25AW3FF50

DO

Q25RW3FF50

100 mm (4")

cutoff

LO

Q25AW3FF100

DO

Q25RW3FF100

Additional information on this product is immediately available online at

www.bannerengineering.com/116166

View or download additional information, including excess gain curves, beam patterns and accessories.

For further assistance, contact a Banner Engineering Applications Engineer at (763) 544-3164 or (888) 373-6767.

Dimensions

bn

bu

bk

20-250V ac

Load

12.7 mm

(0.50")

Green LED

Power Indicator

Yellow LED

Output Indicator

Cabled Models

QD Models

Cabled Emitters

25.0 mm

(0.98")

35.0 mm

(1.38")

30.0 mm*

(1.18")

12.4 mm

(0.49")

(Jam Nut Supplied)

Lens Centerline

15.2 mm

(0.60")

M18 x 1 Thread

2 m (6.5') Cable

*Fixed-field models = 31.0 mm (1.22")

20-250V ac

No Connection

rd/wh

rd/bk

rd
gn

bn

bu

20-250V ac

All Other Cabled Models

QD Emitters

(4-pin Micro-Style)

All Other QD Models

(4-pin Micro-Style)

20-250V ac

No Connection

Load

rd/wh

rd

rd/bk

gn

P

LISTED

R
