S18 Sensors – ac-Voltage Series
6
P/N 121521
Banner Engineering Corp. • Minneapolis, MN U.S.A.
www.bannerengineering.com • Tel: 763.544.3164

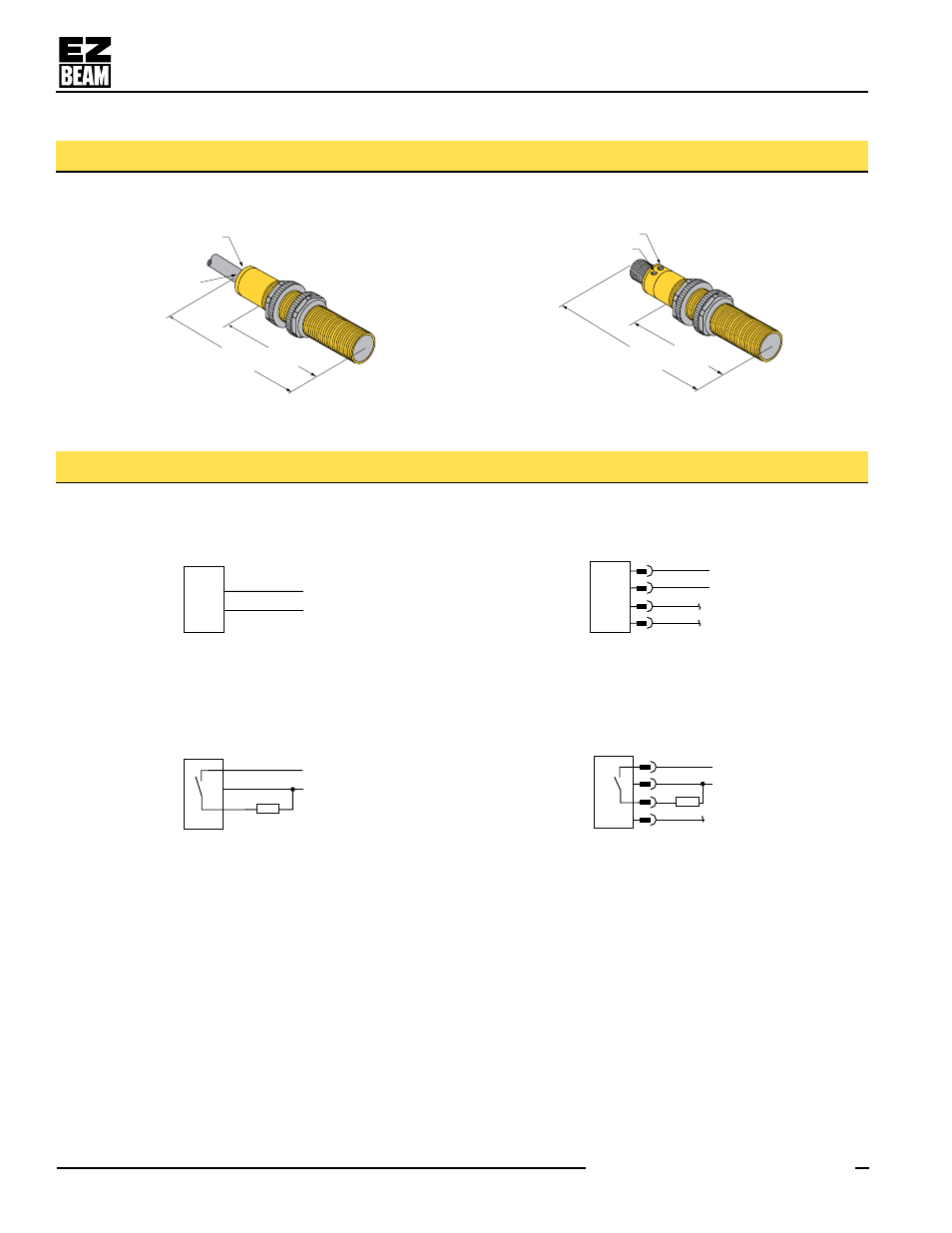

Dimensions
104.1 mm*
(4.10")
63.2 mm
(2.49")
Yellow LED
Output Indicator
Green LED
Power Indicator
*Polarized retro and fixed-field models = 105.1 mm (4.14")
Cabled Models
QD Models
85.3 mm*
(3.36")
63.2 mm
(2.49")
Yellow LED
Output Indicator
Green LED
Power Indicator
*Polarized retro and fixed-field models = 86.3 mm (3.40")
bn
bu
bk
20-250V ac
Load
Cabled Emitters
20-250V ac
No connection
rd/wh
rd/bk
rd
gn
bn
bu
20-250V ac
All Other Cabled Models
QD Emitters
(4-pin Micro-Style)
All Other QD Models
(4-pin Micro-Style)
20-250V ac
No Connection
Load
rd/wh
rd
rd/bk
gn
Hookups
