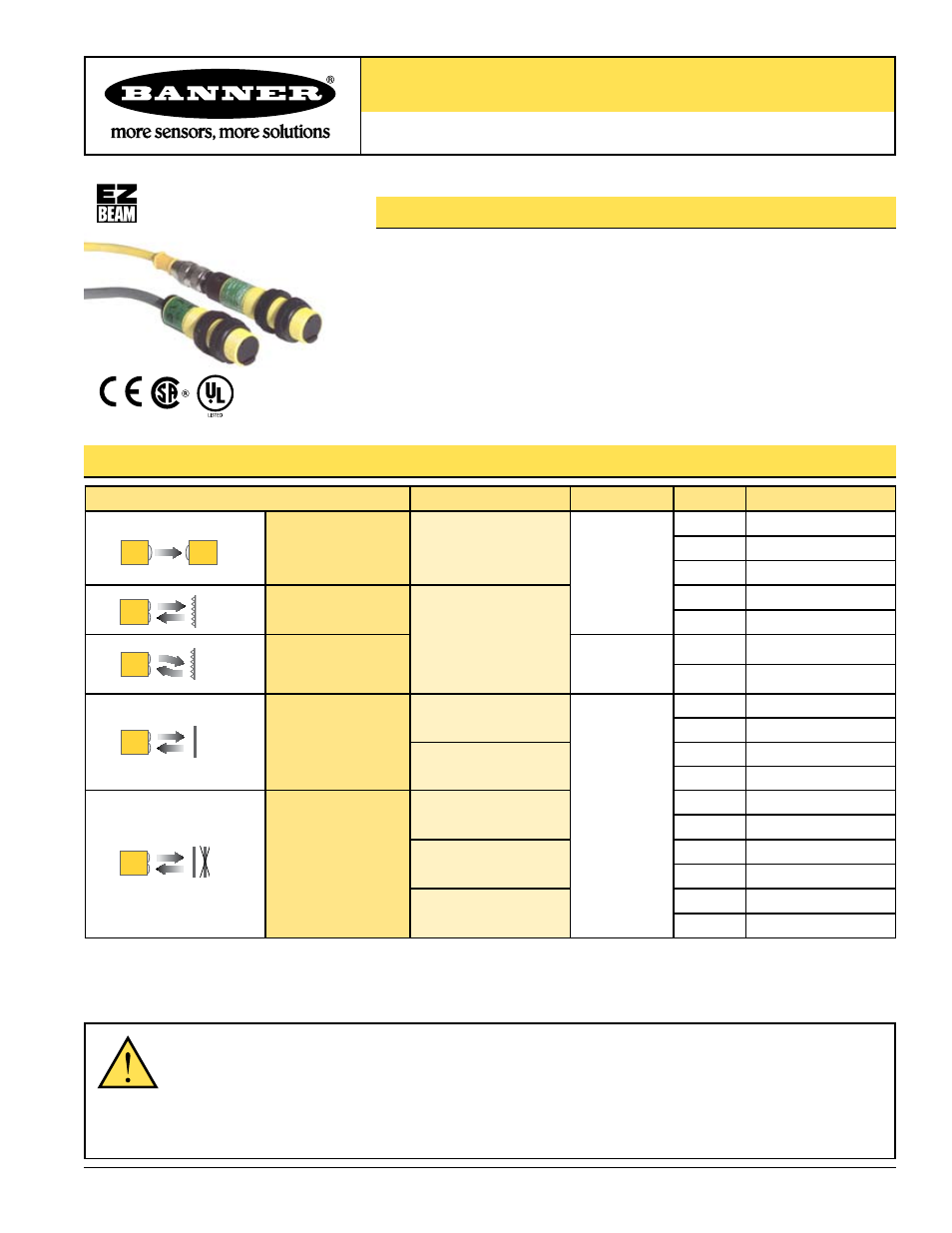

S18 Sensors – ac-Voltage Series
Self-contained ac-operated sensors
* Standard 2 m (6.5') cable models are listed.
• 9 m (30') cable: add suffix “W/30” (e.g., S183E W/30).
• 4-pin Micro-style QD models: add suffix “Q1” (e.g., S183EQ1). A model with a QD connector requires a mating cable. (See page 7.)
† Use polarized models when shiny objects will be sensed.
Sensing Mode Range LED Output Model*
Opposed 20 m (66')
Infrared
950 nm
– S183E
LO S18AW3R
DO S18RW3R
Retroreflective †
2 m (79")
LO S18AW3L
DO S18RW3L
Polarized
Retroreflective †
Visible Red
680 nm
LO S18AW3LP
DO S18RW3LP
Diffuse
100 mm (4")
Infrared
880 nm
LO S18AW3D
DO S18RW3D
300 mm (12")
LO S18AW3DL
DO S18RW3DL
Fixed-Field
25 mm (1") cutoff
LO S18AW3FF25
DO S18RW3FF25
50 mm (2") cutoff
LO S18AW3FF50
DO S18RW3FF50
100 mm (4") cutoff
LO S18AW3FF100
DO S18RW3FF100
P
Features
• Featuring EZ-BEAM ® technology for reliable sensing without the need for
adjustments
• Completely epoxy-encapsulated to provide superior durability; designed to meet
rigorous IP69K standards for use in 1200 psi washdowns
• Innovative dual-indicator system takes the guesswork out of sensor performance
monitoring
• 20 to 250V ac (3-wire hookup); SPST solid-state switch output, maximum
load 300 mA
Models
WARNING . . . Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety
applications. A sensor failure or malfunction can cause either an energized or de-energized sensor output condition.
Consult your current Banner Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for
personnel protection.
